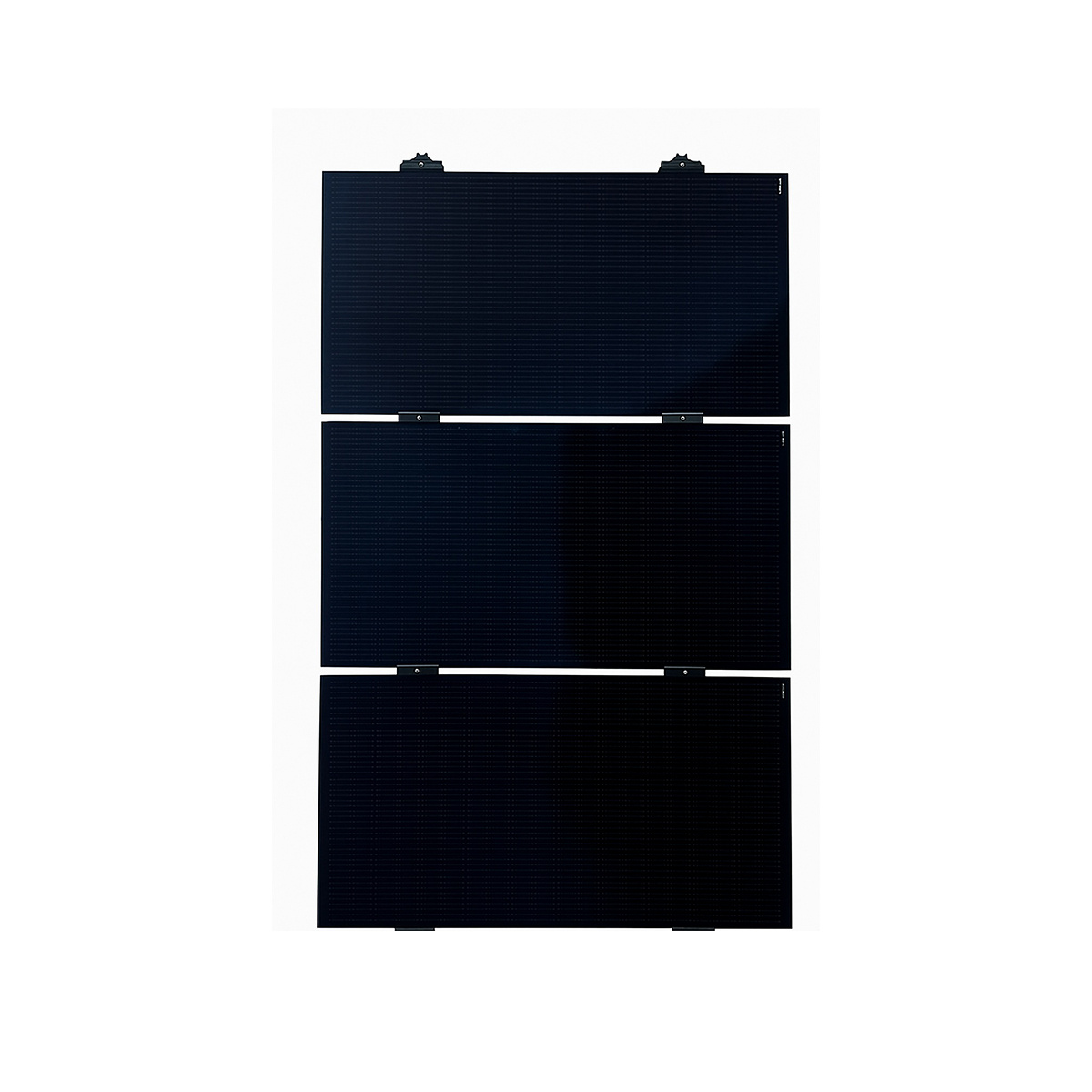

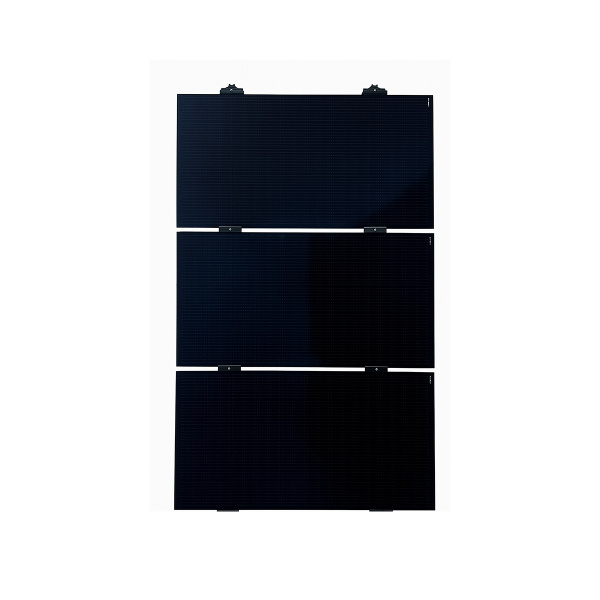

Kit 1- Mo energy Systems PV Pure, black

Facade Kit 1 is specially designed for direct installation on uninsulated facades – without additional insulation, ideal for new buildings, renovations or existing buildings with load-bearing masonry (concrete, brick, solid wood). It contains all the components required for immediate installation:

•    Substructure including wall connection and module clamps for three frameless modules from Solitek (double glazing, black, bifacial, 435 W with building authority approval)
•    Mounting material for three module inverters, for connection to the base rail behind the modules.
•    System components are designed for quick, reliable installation – can be mounted horizontally or vertically

By the way: If the façade is larger, several façade kits can be easily installed next to each other.

Installation instructions for efficient implementation

1.    Measure the façade precisely, plan the axes and determine the module spacing.
2.    Cut the support profiles to size and anchor the fastenings – depending on the substrate, use wall anchor screws (concrete) or dowels/adhesive anchors (brick).
3.    Attach the module holders (middle and end clamps), optionally add anti-slip devices or hangers.
4.    Insert and fix the modules – precisely aligned, visually clean.

Conclusion for you as an installer

With Facade Kit 1, you can offer your customers a highly attractive facade PV system: visually appealing, technically sound and economical to build. You can position yourself as a competent service provider for facade PV – with a product that impresses with its simplicity and elegance.

Further information is also available directly from the manufacturer of the substructure: pv pure - mo energy systems GmbH
