Facade Kit 2 – for facades with insulation up to 10 cm thickness

Faster, cleaner, more economical.

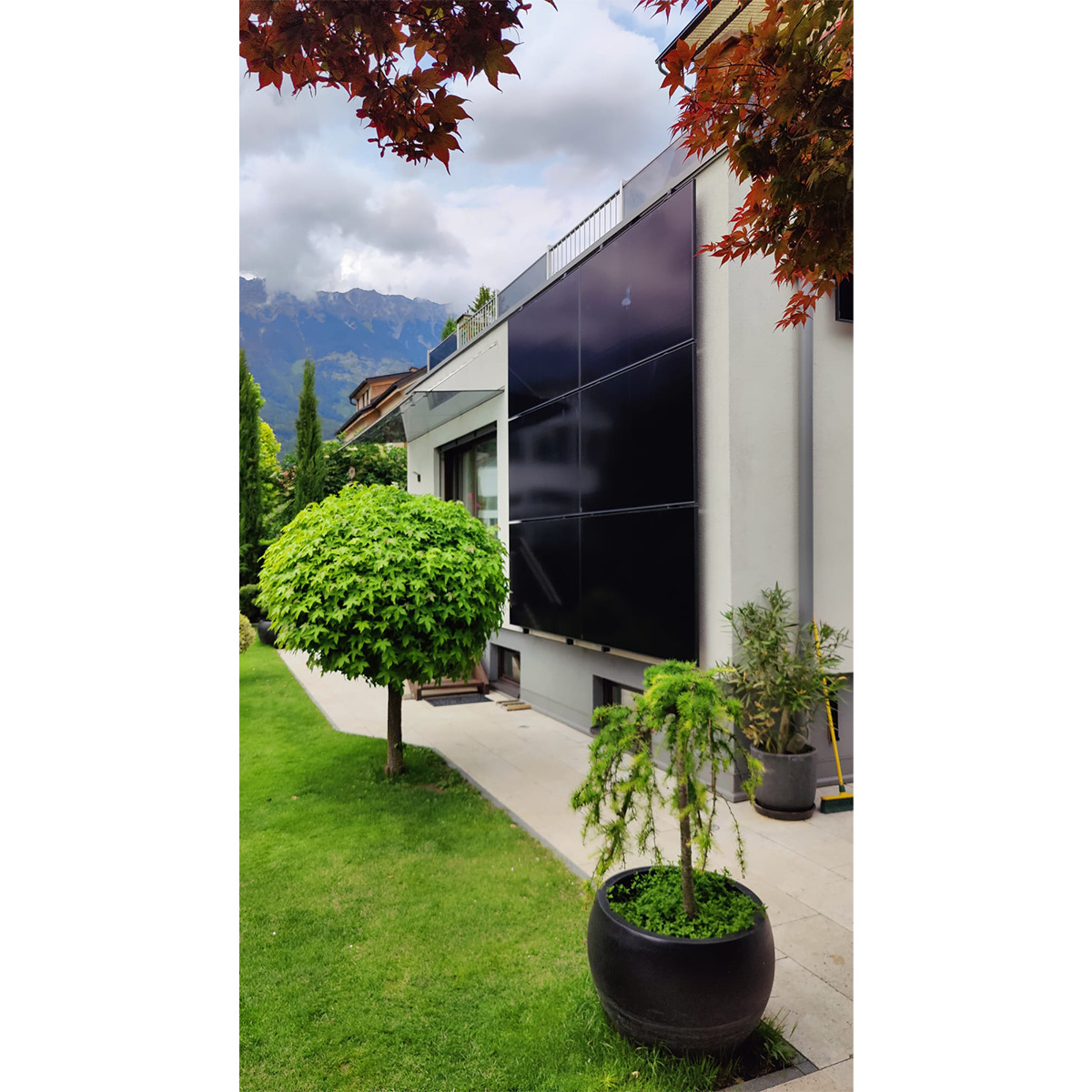

Facade Kit 2 is specially designed for direct installation on building walls with insulation up to 10 cm thickness and concrete floor slabs. Ideal for new buildings, renovations or existing buildings with load-bearing masonry (concrete, brick). It contains all the components necessary for immediate installation:

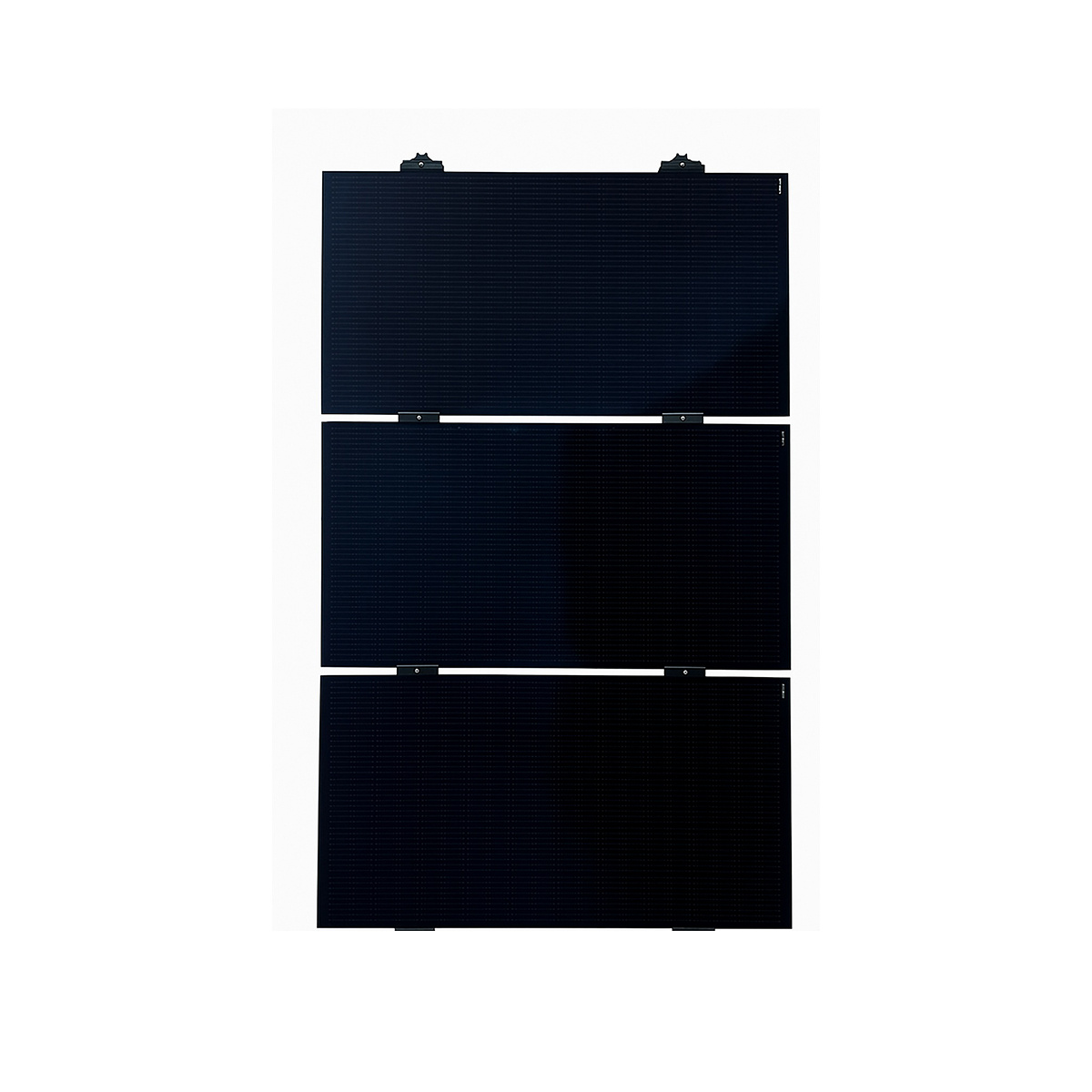

• Substructure including wall connection and module clamps for three frameless modules from Solitek (double glazing, black, bifacial, 435 W with building authority approval)
• Mounting material for three module inverters, for connection to the base rail behind the modules.
• System components are designed for quick, reliable installation – can be mounted vertically.

By the way: If the façade is larger, several façade kits can be easily installed next to each other.

Installation instructions for efficient implementation

1. Measure the façade precisely, plan the axes, determine the module spacing.
2. Cut the support profiles to size and anchor the fastenings (168 mm hole saw required).
3. Attach the module holders (middle and end clamps) and add optional anti-slip devices or hangers.
4. Insert and secure the modules – precisely aligned and visually clean.

Conclusion for you as an installer

With Facade Kit 2, you can offer your customers a highly attractive facade PV system: visually appealing, technically sound and economical to build. You can position yourself as a competent service provider for facade PV – with a product that impresses with its simplicity and elegance.
Further information (including installation and required tools) can also be found directly from the manufacturer of the substructure: pv concrete - mo energy systems GmbH
