AIKO A470-MAH54Dw
AIKO A470-MAH54Dw
N. articolo: 2006400008

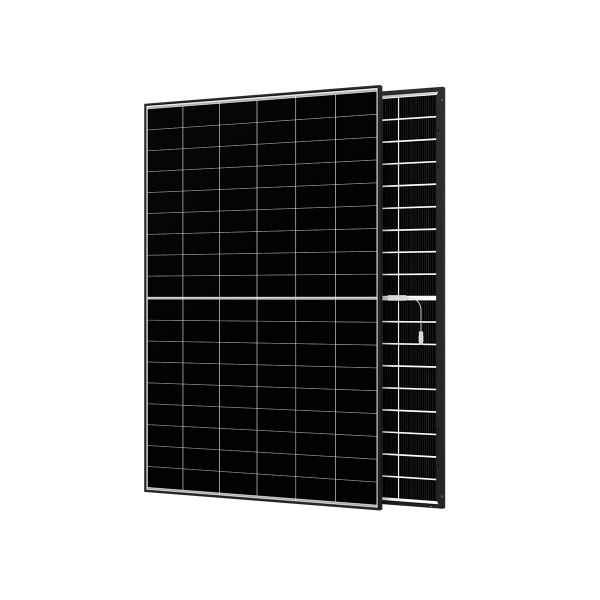

AIKO A470-MAH54Dw

bifacial, glas/glas, white, Neostar 2P+
Larghezza1134 mm
Altezza30 mm
Lunghezza1757 mm
Tensione massima di sistema 1500 V
Potenza nominale470 Wp
Garanzia di prodotto (anni)15
Colore corniceNero
Tipo di connettore CCEVO2A
Colore - backsheetbianco
Tecnologia dei modulihalf-cut
Tecnologia delle celleABC
Peso24,5 Kilogramm
Lunghezza del cavo di collegamento1,2 m
Efficienza del modulo23,6 %
Intensità della corrente del fusibile di stringa25 A
N. di registrazione RAEE DE52182890
Numero di celle108
Descrizione Prodotto
Rated power 470 Wp
monocrystalline cell
LxWxH: 1757x1134x30 mm
Power tolerance -0/+3 %
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 23,6 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)

Please refer to the latest warranty document of the manufacturer

Descrizione Prodotto

The AIKO MAH54-Dw is a highly efficient glass-glass solar module from the Neostar 2P+ series with an output of 455–475 W and an efficiency of up to 23.8%. It uses advanced ABC (All-Back-Contact) cell technology for maximum energy yields, minimal power losses, and a long service life of up to 30 years. Thanks to its robust double-glass construction, excellent temperature resistance, and high load capacity, it is ideal for private and commercial photovoltaic systems.

TechnologieModul-Technology: ABC ABC (All-Back-Contact) technology relocates all electrical contacts to the rear of the solar cell, leaving the front completely free of metallic conductors and allowing more light to be absorbed. This reduces internal resistance, increases efficiency, and improves low-light performance and temperature stability.


  • QualitätQuality: AIKO is considered a premium manufacturer in the photovoltaic industry and impresses with high efficiency, innovative ABC technology, and solid workmanship. The modules offer long warranties (up to 25 years product warranty and 30 years performance warranty), low degradation, and are designed for extreme weather conditions.
  • GarantieWarranty The AIKO MAH54-Dw offers a 25-year product warranty and a 30-year linear performance warranty. Degradation is very low: maximum ≤1% in the first year and then ≤0.35% per year, ensuring high energy yields in the long term.
N. articolo: 2006400008
AIKO A470-MAH54Dw
bifacial, glas/glas, white, Neostar 2P+
