N. articolo: 3400101148

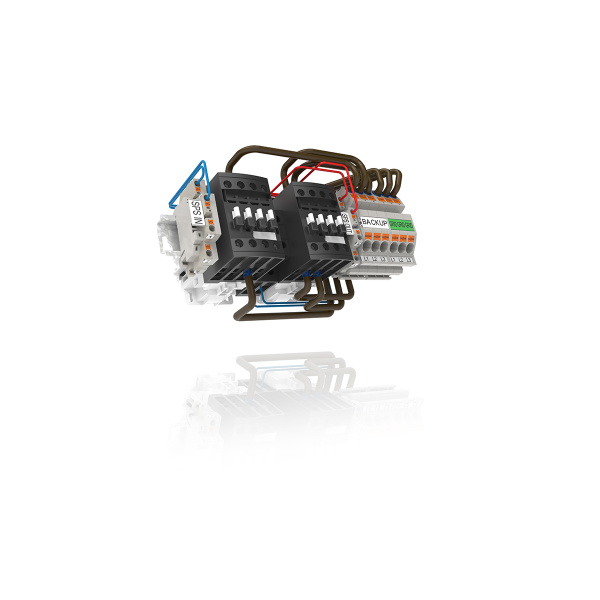

Backup Lösung für Sunny Tripower Hybrid X
63A, 3-poles, Din rail
Larghezza249 mm
Altezza170 mm
Peso1,5 Kilogramm
Profondità110 mm
N. di registrazione RAEE DE95881150
Descrizione Prodotto
Backup solution for Sunny Tripower Hybrid X. Reliable backup power
supply with automatic switching of 3-poles. Switching of phase conductors
(L1, L2, L3) only. Connect and supply all household loads thanks to a
maximum current of 63 A. Din rail solution can be used flexibly in existing
or new installation. Simple wiring thanks to push-in connection terminals.
No self-consumption in on-grid operation.
supply with automatic switching of 3-poles. Switching of phase conductors
(L1, L2, L3) only. Connect and supply all household loads thanks to a
maximum current of 63 A. Din rail solution can be used flexibly in existing
or new installation. Simple wiring thanks to push-in connection terminals.
No self-consumption in on-grid operation.
N. articolo: 3400101148
Backup Lösung für Sunny Tripower Hybrid X
63A, 3-poles, Din rail
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
1,95 MB
|
|
