Connettore femmina MC4 PV-BP 4/6

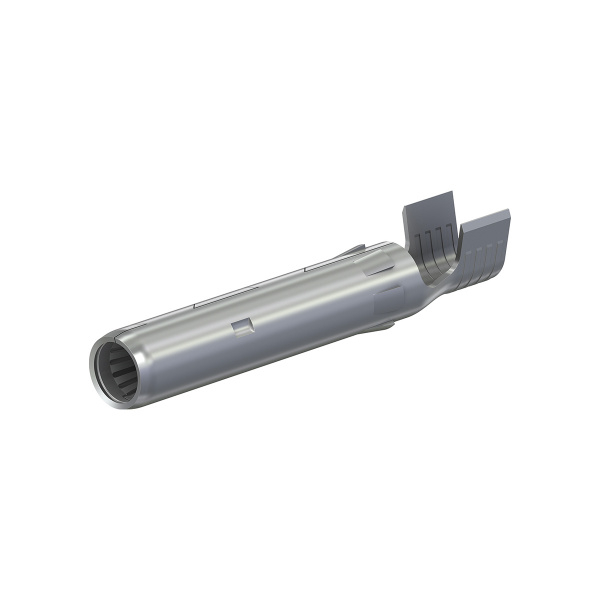

Single contact for Stäubli MC4 socket 6 mm²

These are individual contacts for the Stäubli MC4 connectors
PV-KBT4/6I-UR and PV-KBT4/6II-UR.
The contacts are based on the Stäubli patented MULTILAM technology.

Maximum system voltage 1000V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 5.0 to 8.8 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Rated current TÜV: 39 A (4 mm² / 6 mm²)
Rated current UL: 30 A (12 AWG / 10 AWG)
