N. articolo: 7401100076

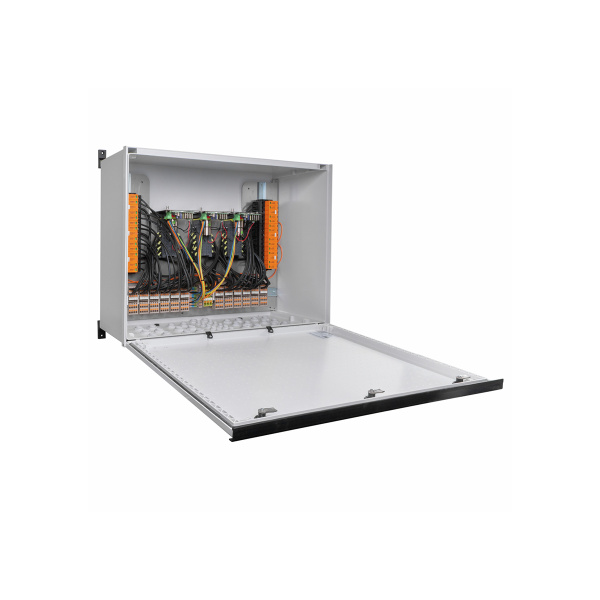

DC con-box 12 MPPT 1-2 str. SPD Type 1/2
Weidmüller
Numero di trackers MPP12
Larghezza600 mm
Altezza467 mm
Tensione massima CC1100 V
Numero massimo di stringhe24
Tipo di scaricatoreTipo 1/2
Tipo di connessione (DC)Verschraubung
Peso15,96 Kilogramm
Corrente massima in ingresso (I max)51,25 A
Corrente massima in ingresso per stringa41 A
Profondità250 mm
Protezioni di sovratensioneJA
N. di registrazione RAEE DE73937473
Descrizione Prodotto
Max. string voltage Uoc: 1100 VDC
1 class/type I + II combined arrester with signal contact
Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²
Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 478.6x600x257 mm
1 class/type I + II combined arrester with signal contact
Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²
Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 478.6x600x257 mm
N. articolo: 7401100076
DC con-box 12 MPPT 1-2 str. SPD Type 1/2
Weidmüller
