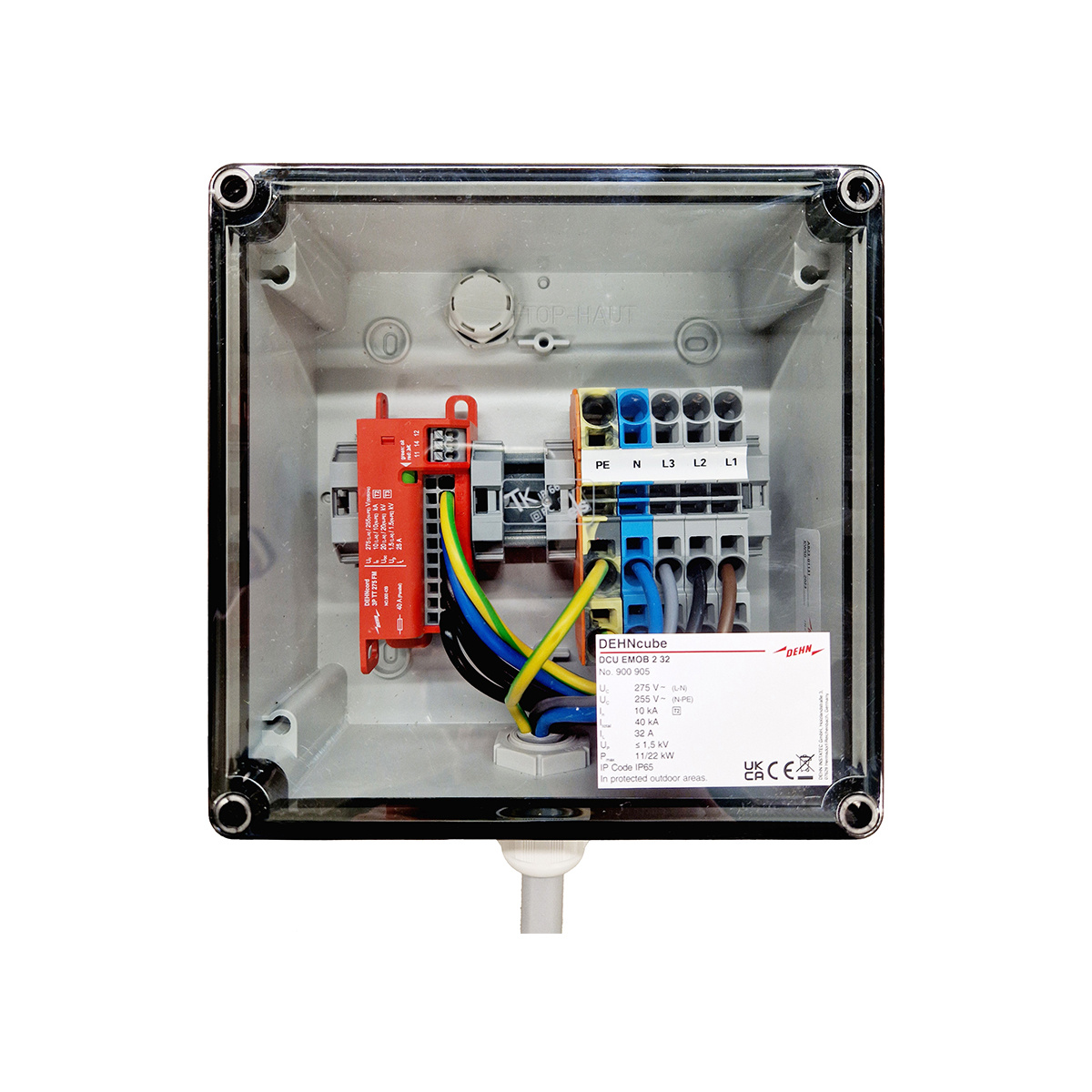

DEHNcube EMOB 2 32

Enclosure connection box DCU EMOB 2 32
Enclosure connection box type 2+3 / II+III
in accordance with EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Ready-to-connect complete unit for
universal installation in front of the wallbox
with remote signaling contact, function/defect indicator
Highest continuous voltage: 275 V ac
Protection level: <= 1.5 kV
Rated leakage surge current (8/20): 10 kA
Total leakage surge current (8/20): 40 kA
Rated current: 32 A
Max. Power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm
