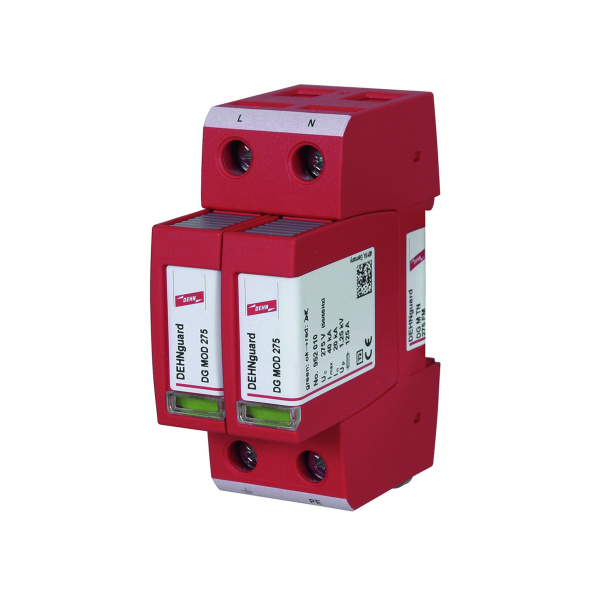

DEHNguard M TN 275 FM

Modular and pluggable two-pole surge arrester
for single-phase 230 V TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Please note:
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
