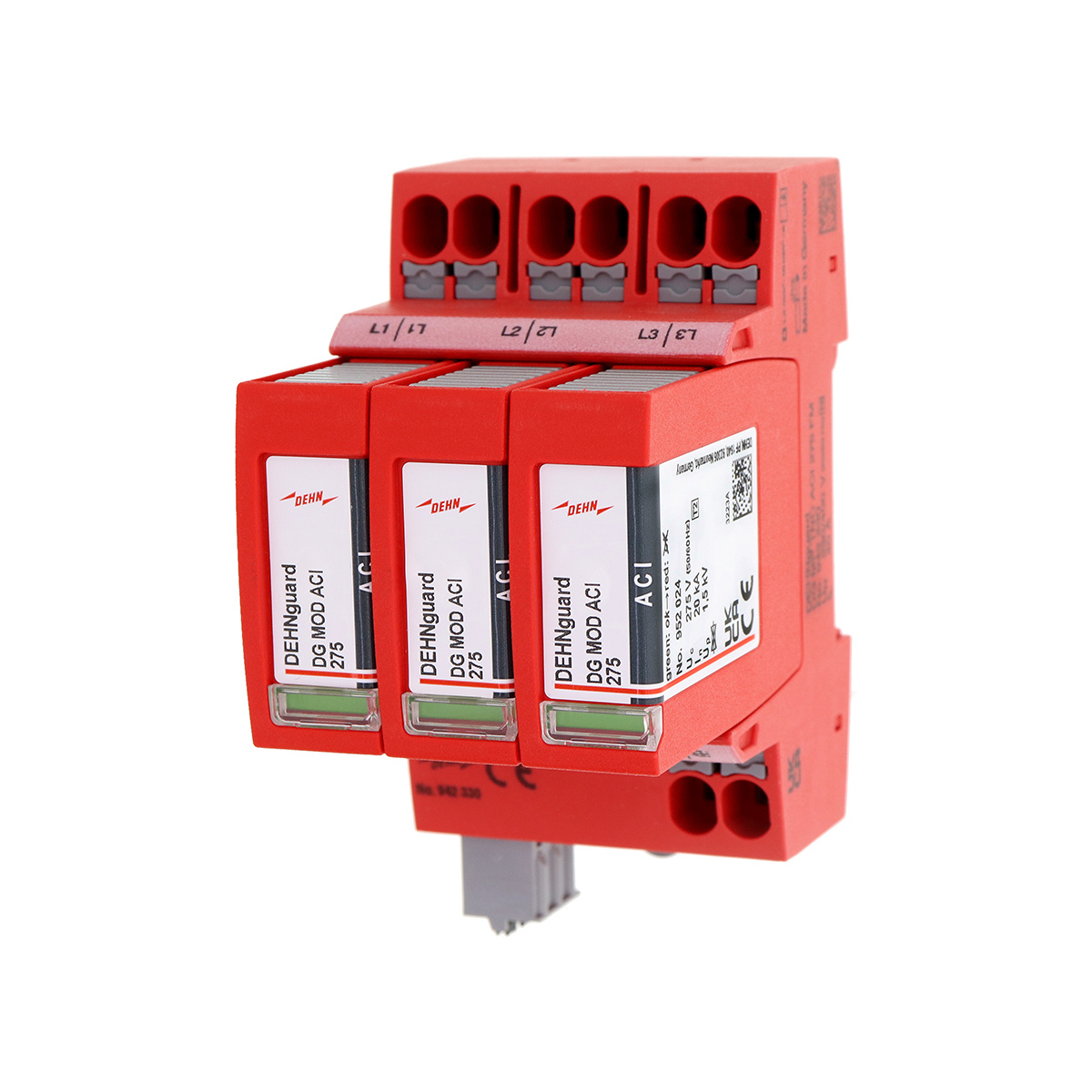

DEHNguard MP TNC ACI 275 FM

Surge arrester DEHNguard MP TNC ACI 275 FM
3-pole, modular, pluggable
Surge arrester with
integrated ACI switch/spark gap
and double push-in connection terminal suitable for
stub and through-wiring
for TN-S systems, width 3TE
with remote signalling contact
Type 2 arrester according to EN 61643-11
Defect indicator
Highest continuous voltage: 275 V ac
Protection level: <= 1.5 kV
Rated leakage surge current: 20 kA
Short-circuit resistance: 25 kAeff
Energy coordination in accordance with DIN EN 62305-4
Arrester of the Red/Line family
