N. articolo: 2006300039
DMEGC GH435M10T-B54HST
glass/glass, transparent, abZ
Larghezza1134 mm
Altezza30 mm
Lunghezza1722 mm
Tensione massima di sistema 1500 V
Potenza nominale435 Wp
Garanzia di prodotto (anni)25
Colore corniceArgento
Tipo di connettore CCEVO2A
Colore - backsheettrasparente
Tecnologia dei modulihalf-cut
Tecnologia delle celleTOPCON
Peso23,6 Kilogramm
Lunghezza del cavo di collegamento1,1 m
Efficienza del modulo22,3 %
Intensità della corrente del fusibile di stringa30 A
N. di registrazione RAEE DE50188598
Numero di celle108
Descrizione Prodotto
Rated power 435 Wp
monocrystalline cell
LxWxH: 1722x1134x30 mm
Power tolerance: 0/+3%
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 22,3 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
monocrystalline cell
LxWxH: 1722x1134x30 mm
Power tolerance: 0/+3%
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 22,3 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
Descrizione Prodotto
Please note:
This item will be ordered on an order related basis.
Cancellation/return and change of the agreed conditions is excluded!
This item will be ordered on an order related basis.
Cancellation/return and change of the agreed conditions is excluded!
Descrizione Prodotto
This is a module with abZ (General Building Authority Approval). It can be used for overhead applications, e.g., for carports.

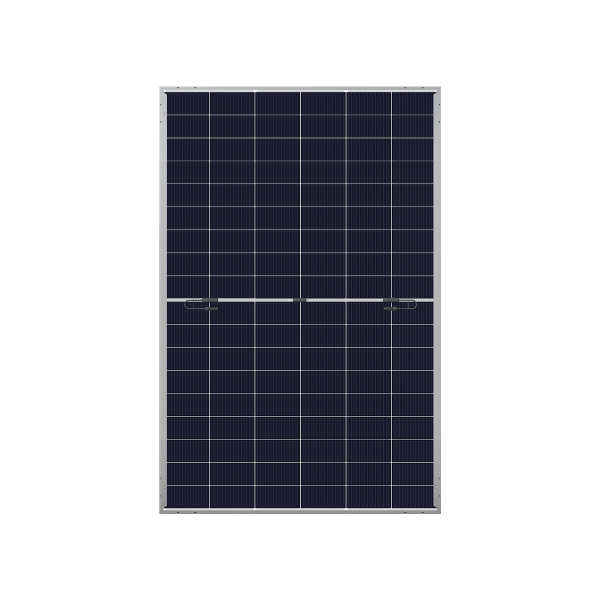

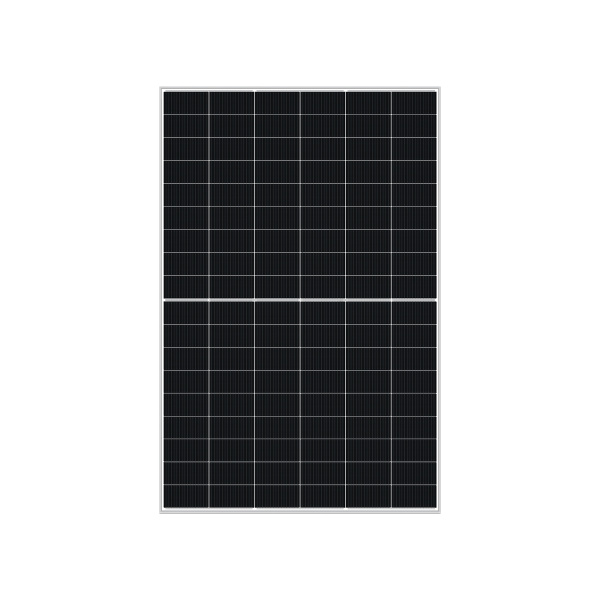

The DMEGC GH M10T‑B54HST is a high-quality bifacial glass‑glass solar module with N-type monocrystalline cells. It was specifically developed for translucent installations such as greenhouses, possesses DIBt approval for overhead mounting, and achieves up to approx. 481 Wp output with double-sided yield.
Module TechnologyThe module utilizes N-type TOPCon technology with monocrystalline cells, offering higher efficiency, lower degradation, and better performance in low-light conditions. Due to the bifacial glass-glass construction, it can utilize light from both sides, significantly increasing energy yield compared to conventional modules.
QualityDMEGC modules are known for high-quality workmanship, reliability, and efficiency. They are Bloomberg Tier 1 listed, have been multiple-time winners of "Top Performer" in independent tests, and received top marks for mechanical load capacity, temperature coefficient, and PID resistance, confirming their durability and quality.
SustainabilityDMEGC modules are particularly sustainable, as their production is 100% powered by renewable energy and the plants are certified by TÜV SÜD as CO₂-neutral. Furthermore, all products are PFAS-free, RoHS and REACH compliant, feature a low carbon footprint (EPD, PEP, ISO14067 certificates), and the company has been awarded the EcoVadis Silver Medal for its ESG performance.
WarrantyThe durable design with a 25-year product warranty and a 30-year linear performance warranty (at least 87.4% after 30 years) makes it particularly attractive for sustainable photovoltaic projects.
N. articolo: 2006300039
DMEGC GH435M10T-B54HST
glass/glass, transparent, abZ
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
3,76 MB
|
|
