N. articolo: 3602200005

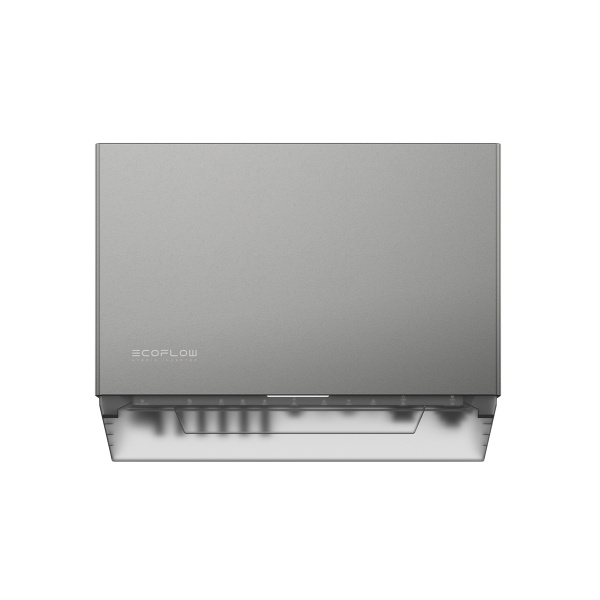

EcoFlow PowerOcean Plus 20kW
Hybrid Inverter 3~
AC-potenza nominale20000 VA
Numero di fasi di immissione in rete3
Numero di trackers MPP3
Larghezza636 mm
Altezza498 mm
Tensione massima CC1000 V
Potenza nominale20,000 Wp
Tipo di connettore CCMC4 KOMPATIBEL
Tipo di inverterIbrido
Peso41 Kilogramm
Protezione IP65
Profondità235 mm
N. di registrazione RAEE DE52101194
Descrizione Prodotto
Hybrid inverter for EcoFlow high-voltage batteries (Power Ocean/Ocean 2)
- Includes DC overvoltage protection type II
- Universal load connection (heat pumps, smart plugs, EcoFlow Wallbox) via the built-in EcoFlow EMS
WLAN/LAN/4G combo dongle included
DC load break switch
according to VDE AR-N-4105:2018-11
for grid parallel operation
Protection class: IP65
European efficiency: 97%
H x W x D 498/636/235 mm
Connectable PV power: 35000W
AC rated power: 20000W
Max. DC input voltage: 1000V
Suitable for EcoFlow Power Ocean/Ocean 2 battery modules
Backup function (replacement power, 3-phase 20000W)
Meter with 80A is already integrated in the inverter.
15-year warranty
The manufacturer's country-specific warranty and service conditions apply.
- Includes DC overvoltage protection type II
- Universal load connection (heat pumps, smart plugs, EcoFlow Wallbox) via the built-in EcoFlow EMS
WLAN/LAN/4G combo dongle included
DC load break switch
according to VDE AR-N-4105:2018-11
for grid parallel operation
Protection class: IP65
European efficiency: 97%
H x W x D 498/636/235 mm
Connectable PV power: 35000W
AC rated power: 20000W
Max. DC input voltage: 1000V
Suitable for EcoFlow Power Ocean/Ocean 2 battery modules
Backup function (replacement power, 3-phase 20000W)
Meter with 80A is already integrated in the inverter.
15-year warranty
The manufacturer's country-specific warranty and service conditions apply.
N. articolo: 3602200005
EcoFlow PowerOcean Plus 20kW
Hybrid Inverter 3~
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,67 MB
|
|
