N. articolo: 5101100026

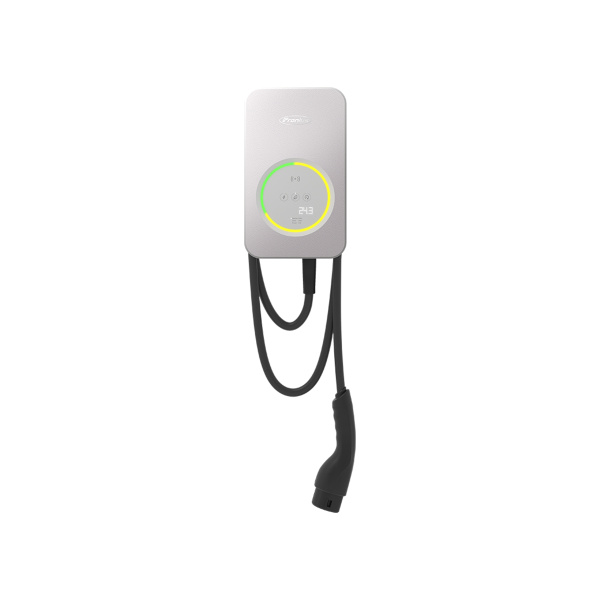

Fronius Wattpilot Flex Home 11 C6
Charging device 11kW T2 cable WLAN LAN
Larghezza195 mm
Altezza325 mm
OCPP?Si
Contatore di energia Senza
ZugangsbeschränkungRFID-Karte
Peso4,1 Kilogramm
Profondità105 mm
N. di registrazione RAEE DE39936572
Descrizione Prodotto
The Home series is available only in Telegrey. The separate anthracite cover from the Pro series is not available as a color option here!
The Fronius Wattpilot Flex Home 11 C6 is a flexible charging solution for electric vehicles
with a maximum charging power of 11 kW and a 6-meter-long Type 2 charging cable.
Technical specifications:
Maximum charging power: 11 kW
Grid connection: 230/240 V (single-phase) or 400/415 V (3-phase)
Charging cable: 6 m, Type 2 plug
Residual current protection: 20 mA AC, 6 mA DC integrated
with a maximum charging power of 11 kW and a 6-meter-long Type 2 charging cable.
Technical specifications:
Maximum charging power: 11 kW
Grid connection: 230/240 V (single-phase) or 400/415 V (3-phase)
Charging cable: 6 m, Type 2 plug
Residual current protection: 20 mA AC, 6 mA DC integrated
Special features:
PV optimization: Dynamic PV surplus charging
Charging modes: Eco Mode and Next Trip Mode
User-friendliness: Operation via buttons or app
Network integration: Wi-Fi and LAN interfaces
The Wattpilot Flex Home 11 C6 enables cost-effective and sustainable charging of your electric vehicle.
PV optimization: Dynamic PV surplus charging
Charging modes: Eco Mode and Next Trip Mode
User-friendliness: Operation via buttons or app
Network integration: Wi-Fi and LAN interfaces
The Wattpilot Flex Home 11 C6 enables cost-effective and sustainable charging of your electric vehicle.
N. articolo: 5101100026
Fronius Wattpilot Flex Home 11 C6
Charging device 11kW T2 cable WLAN LAN
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
3,12 MB
|
|
