N. articolo: 5202100062

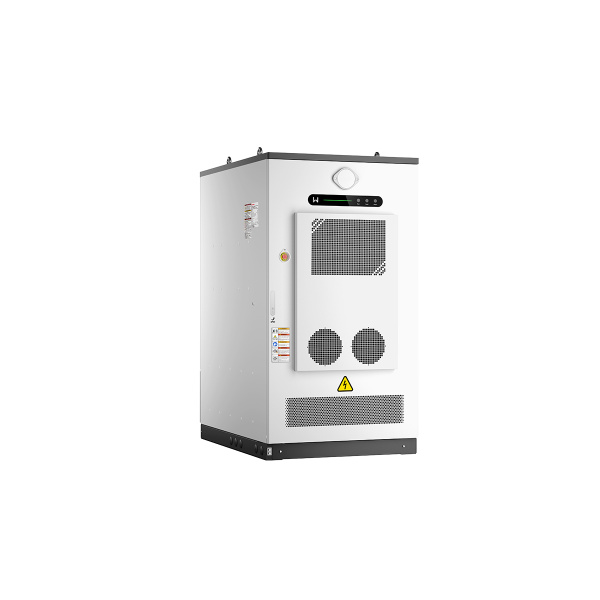

GoodWe BAT-C series 208.9 kWh
C&I battery system
Larghezza1050 mm
Energia208.9 kWh
Altezza2025 mm
Potenza nominale208,900 Wp
Tensione nominale665,6 V
Tipo di batteriaLITHIUM
Batt-Reg.-Nr. DE16330567
Peso2.095 Kilogramm
Profondità massima di scarica1.000 %
N. di registrazione RAEE DE33154372
Descrizione Prodotto
GoodWe GW208.9-BAT-LC-G10 (BA3208K-01-00P)
application: C&I high-voltage battery (LiFePO)
rated capacity: 208.9 kWh
power: up to 125.3 kW charging/discharging power
application: C&I high-voltage battery (LiFePO)
rated capacity: 208.9 kWh
power: up to 125.3 kW charging/discharging power
cycle life: 10,000 cycles
round-trip efficiency: up to 94%
temperature range: -25 to +55 °C
cooling method: liquid cooling
protection & safety: IP55, integrated safety functions
round-trip efficiency: up to 94%
temperature range: -25 to +55 °C
cooling method: liquid cooling
protection & safety: IP55, integrated safety functions
N. articolo: 5202100062
GoodWe BAT-C series 208.9 kWh
C&I battery system
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,44 MB
|
|
|
File
Material safety data sheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
2,68 MB
|
|
