N. articolo: 5202100042

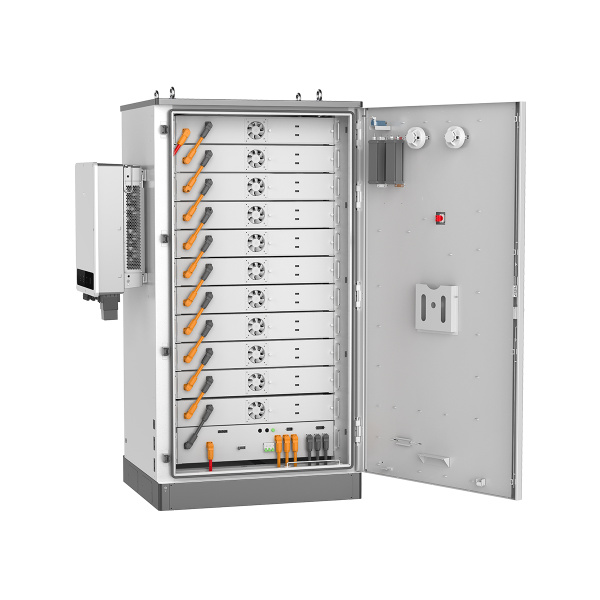

GoodWe BAT Series 112.6 kWh
C&I battery system
Larghezza1055 mm
Energia112.6 kWh
Altezza2000 mm
Potenza nominale112,600 Wp
Tensione nominale563.2 V
Tipo di batteriaLITHIUM
Batt-Reg.-Nr. DE16330567
Peso1.400 Kilogramm
Profondità massima di scarica100 %
Profondità1055 mm
Descrizione Prodotto
Due to individual freight costs depending on the project location, we ask you to request a specific quote for your project, stating the project location!
In combination with GoodWe ET hybrid inverters and the static transfer switch (STS), the
BAT 112 high-voltage lithium battery system is available with a capacity of 112.6 kWh and offers a scalable,
compact, and easy-to-install storage solution for commercial and industrial applications (C&I applications).
Capacity: 112.6 kWh
Battery type: LiFePO, 100% depth of discharge
Cycle life: 6000 cycles
Protection class: IP55, for indoor and outdoor use
Communication: CAN
Dimensions (W x H x D): 1055 × 2000 × 1055 mm, approx. 1400 kg
The manufacturer's warranty conditions apply.
In combination with GoodWe ET hybrid inverters and the static transfer switch (STS), the
BAT 112 high-voltage lithium battery system is available with a capacity of 112.6 kWh and offers a scalable,
compact, and easy-to-install storage solution for commercial and industrial applications (C&I applications).
Capacity: 112.6 kWh
Battery type: LiFePO, 100% depth of discharge
Cycle life: 6000 cycles
Protection class: IP55, for indoor and outdoor use
Communication: CAN
Dimensions (W x H x D): 1055 × 2000 × 1055 mm, approx. 1400 kg
The manufacturer's warranty conditions apply.
N. articolo: 5202100042
GoodWe BAT Series 112.6 kWh
C&I battery system
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,68 MB
|
|
|
File
Material safety data sheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
2,32 MB
|
|
