N. articolo: 5202100057

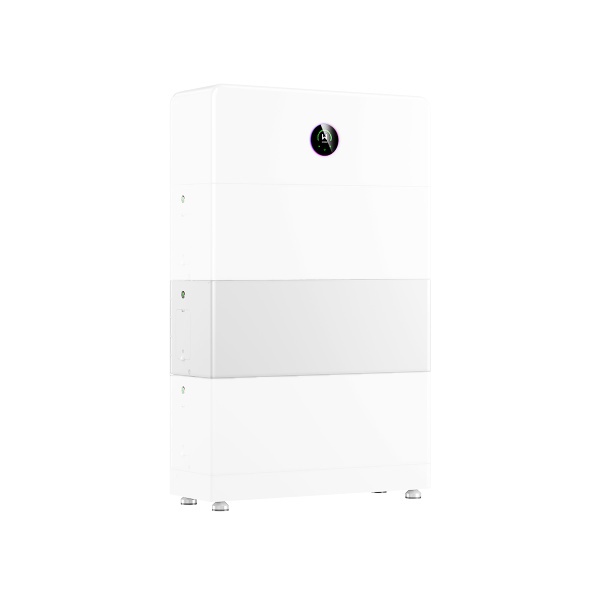

Goodwe GW5.1-BAT-D-G20 (matt)
battery module 5 kWh ESA-series
Larghezza800 mm
Energia5 kWh
Altezza326 mm
Potenza nominale5,000 Wp
Tensione nominale380 V
Tipo di batteriaLITHIUM
Batt-Reg.-Nr. DE16330567
Peso58 Kilogramm
Profondità massima di scarica100 %
N. di registrazione RAEE DE33154372
Descrizione Prodotto
Goodwe GW5.1-BAT-D-G20 battery module
nominal power: 5.12 kW
Usable energy: 5 kWh
voltage range (single-phase): 350 - 550 V
voltage range (three-phase): 700 - 950 V
max. charging current: 12 A
max. discharging current: 13.2 A
weight: 57.5 kg
nominal power: 5.12 kW
Usable energy: 5 kWh
voltage range (single-phase): 350 - 550 V
voltage range (three-phase): 700 - 950 V
max. charging current: 12 A
max. discharging current: 13.2 A
weight: 57.5 kg
Note:
Accessories for floor mounting are included with the inverter.
Brackets for wall mounting must be ordered separately (5202100055)
Accessories for floor mounting are included with the inverter.
Brackets for wall mounting must be ordered separately (5202100055)
N. articolo: 5202100057
Goodwe GW5.1-BAT-D-G20 (matt)
battery module 5 kWh ESA-series
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,6 MB
|
|
|
File
Material safety data sheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
2,44 MB
|
|
