N. articolo: 3602000068

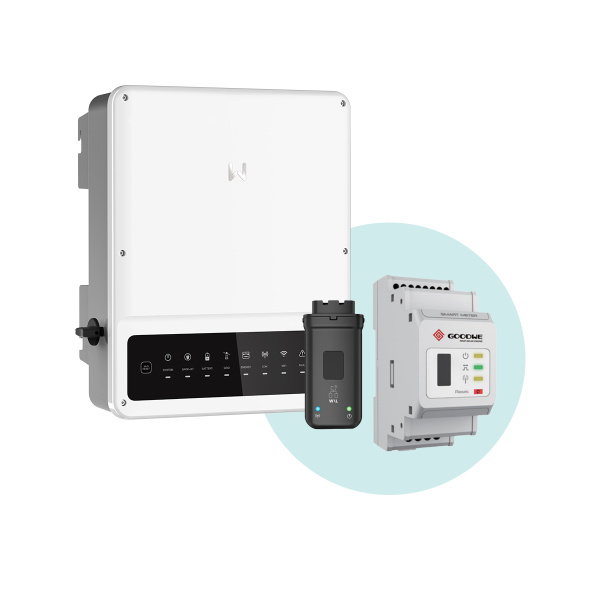

Goodwe GW5000N-EH Plus+ 16A
Hybrid Inverter 1~
AC-potenza nominale5000 VA
Numero di fasi di immissione in rete1
Numero di trackers MPP2
Larghezza354 mm
Altezza433 mm
Tensione massima CC580 V
Potenza nominale5,000 Wp
Tipo di connettore CCMC4
Tipo di inverterIbrido
Peso17 Kilogramm
Protezione IP65
Profondità147 mm
N. di registrazione RAEE DE33154372
Descrizione Prodotto
WLAN/Ethernet LAN (option with additional LAN-module)
DC-circuit breaker
according to VDE AR-N 4105
for grid connection
Degree of protection: IP65
euro efficiency: 97%
height x width x depth 433x354x147mm
max. DC power: 7500W
nominal power: AC 5000W
max. DC voltage: 580V
without Display
High voltage battery (for compatibility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function
single-phase meter included (also usable for single phase systems)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
DC-circuit breaker
according to VDE AR-N 4105
for grid connection
Degree of protection: IP65
euro efficiency: 97%
height x width x depth 433x354x147mm
max. DC power: 7500W
nominal power: AC 5000W
max. DC voltage: 580V
without Display
High voltage battery (for compatibility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function
single-phase meter included (also usable for single phase systems)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
N. articolo: 3602000068
Goodwe GW5000N-EH Plus+ 16A
Hybrid Inverter 1~
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,49 MB
|
|
