N. articolo: 3401900008

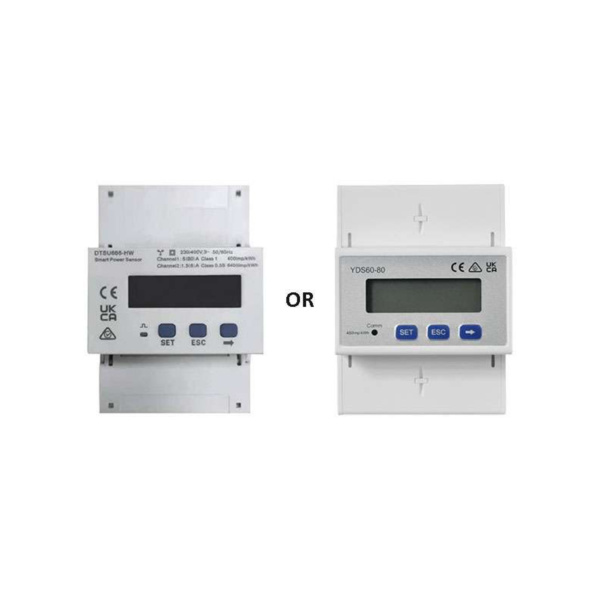

Huawei smart meter DTSU666-HW, three-phase
direct measurement (80A)
Larghezza72 mm
Altezza100 mm
Peso0,5 Kilogramm
Profondità80 mm
N. di registrazione RAEE DE39372368
Descrizione Prodotto
rated voltage: 230 V AC/400 V AC, 50 Hz/60 Hz
current measuring range: Direct connection: 0-80 A;
voltage measuring range: 90-1000 V (line voltage; potential transformer required for voltages above 500 V)
mains system: Three-phase four-wire or three-phase three-wire
operating temperature: -25°C to +60°C
installation mode: DIN rail mounting (DIN35)
current measuring range: Direct connection: 0-80 A;
voltage measuring range: 90-1000 V (line voltage; potential transformer required for voltages above 500 V)
mains system: Three-phase four-wire or three-phase three-wire
operating temperature: -25°C to +60°C
installation mode: DIN rail mounting (DIN35)
N. articolo: 3401900008
Huawei smart meter DTSU666-HW, three-phase
direct measurement (80A)
