N. articolo: 3601900015

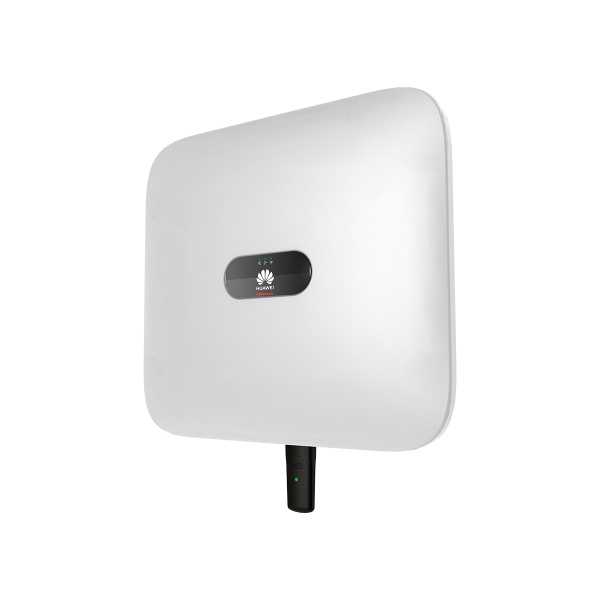

Huawei SUN2000-10KTL-M1
hybrid inverter 3~
AC-potenza nominale10000 VA
Numero di fasi di immissione in rete3
Numero di trackers MPP2
Larghezza525 mm
Altezza470 mm
Tensione massima CC1100 V
Potenza nominale10,000 Wp
Tipo di connettore CCMC4
Tipo di inverterIbrido
Peso17 Kilogramm
Lunghezza del cavo di collegamento2 m
Protezione IP65
Profondità147 mm
N. di registrazione RAEE DE39372368
Descrizione Prodotto
The Huawei SUN2000-10KTL-M1 is a high-performance solar inverter ideal for residential solar systems.
With a maximum efficiency of 98.6% and a European weighted efficiency of 98.1%,
it offers a reliable and efficient energy conversion solution.
Technical Specifications:
Maximum Input Power (PV): 15,000 Wp
Maximum Input Voltage: 1,100 V
MPPT Range: 140 V 980 V
Rated Power: 10,000 W
Maximum Output Power: 11,000 VA
Grid Connection: Three-phase
Communication: RS485, Wi-Fi, Ethernet (optional)
Special Features:
AI-Controlled Arc Detection: Increases safety through early detection of arcs.
Battery Compatibility: Supports Huawei Smart ESS Battery Systems S0 and S1
Protection Features: Comprehensive protection against islanding DC overvoltage,
Technical Specifications:
Maximum Input Power (PV): 15,000 Wp
Maximum Input Voltage: 1,100 V
MPPT Range: 140 V 980 V
Rated Power: 10,000 W
Maximum Output Power: 11,000 VA
Grid Connection: Three-phase
Communication: RS485, Wi-Fi, Ethernet (optional)
Special Features:
AI-Controlled Arc Detection: Increases safety through early detection of arcs.
Battery Compatibility: Supports Huawei Smart ESS Battery Systems S0 and S1
Protection Features: Comprehensive protection against islanding DC overvoltage,
AC overvoltage, overcurrent, and short circuit.
The SUN2000-10KTL-M1 is an excellent choice for homeowners who want to operate their solar system efficiently and safely.
The SUN2000-10KTL-M1 is an excellent choice for homeowners who want to operate their solar system efficiently and safely.
Descrizione Prodotto
Huawei SUN2000-10KTL-M1
The SUN2000-3-10KTL-M1 is a battery-ready string inverter rated from 3 to 10 kW, which is ideal for integration with the LUNA Smart String Power Storage System, SmartGuard and EMMA, Huawei's energy management assistant. In a three-phase backup solution, one inverter can control up to two ESS towers, with the storage capacity depending on the selected LUNA battery model.
Technology
- Hybrid inverter three phase
- Compatibel with EMMA and SmartGuard
- Cpmatibel with Smart Module Controller
Connectivity
- RS485 integrated
- Ethernet/WLAN via Smart Dongle-WLAN-FE (optional)
- 4G via Smart Dongle 4G (optional)
Installation
Plug-and-Play-Design for easy installation
- One-Man-Installation because of the weight: 17 kg
- Fast commissioning with the FusionSolar App
SustainabilityTo reduce the impact on our environment, Huawei is continuously improving its product designs. They are reducing the weight and size of product packaging and using fiber-based materials instead of plastic packaging to make them easier to dispose of. They have also established a global recycling program to extract the residual value of electronic waste. This helps Huawei to use fewer resources and contribute to the circular economy.
