N. articolo: 3001900026

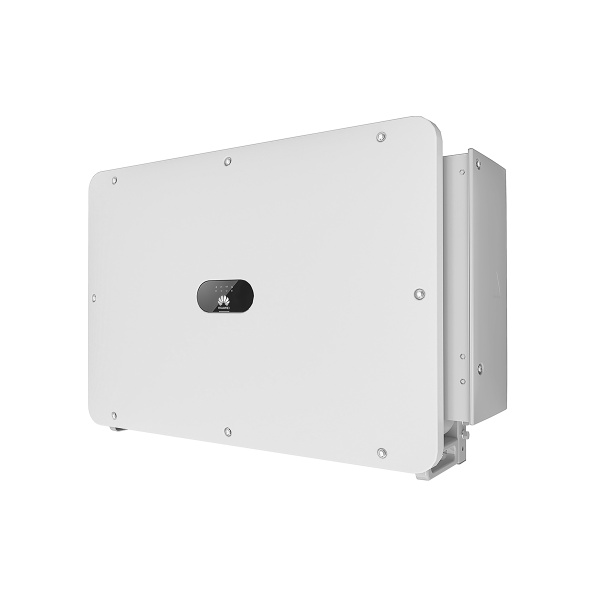

Huawei SUN2000-215KTL-H3
inverter 3~. 800V AC
AC-potenza nominale200000 VA
Numero di fasi di immissione in rete3
Numero di trackers MPP3
Larghezza1035 mm
Altezza700 mm
Tensione massima CC1500 V
Potenza nominale200,000 Wp
Tipo di connettore CCEVO2
Tipo di inverterDi stringa
Peso86 Kilogramm
Protezione IP66
Descrizione Prodotto
The HUAWEI SUN2000-215KTL-H3 is a three-phase string inverter with a maximum output power of 215 kW.
It offers high efficiency of up to 99.0% and features numerous intelligent protection and communication functions.
Key features include:
Maximum efficiency: 99.0%
European efficiency: 98.8%
Maximum input voltage: 1,500 V
Number of MPPTs: 3
Rated AC power: 200,000 W
Maximum AC apparent power: 215,000 VA
Rated output voltage: 800 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without power derating
The inverter supports a wide range of protection functions, including Type II DC and AC overvoltage protection,
DC insulation resistance detection and fault current monitoring.
It offers high efficiency of up to 99.0% and features numerous intelligent protection and communication functions.
Key features include:
Maximum efficiency: 99.0%
European efficiency: 98.8%
Maximum input voltage: 1,500 V
Number of MPPTs: 3
Rated AC power: 200,000 W
Maximum AC apparent power: 215,000 VA
Rated output voltage: 800 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without power derating
The inverter supports a wide range of protection functions, including Type II DC and AC overvoltage protection,
DC insulation resistance detection and fault current monitoring.
N. articolo: 3001900026
Huawei SUN2000-215KTL-H3
inverter 3~. 800V AC
