N. articolo: 4400200230

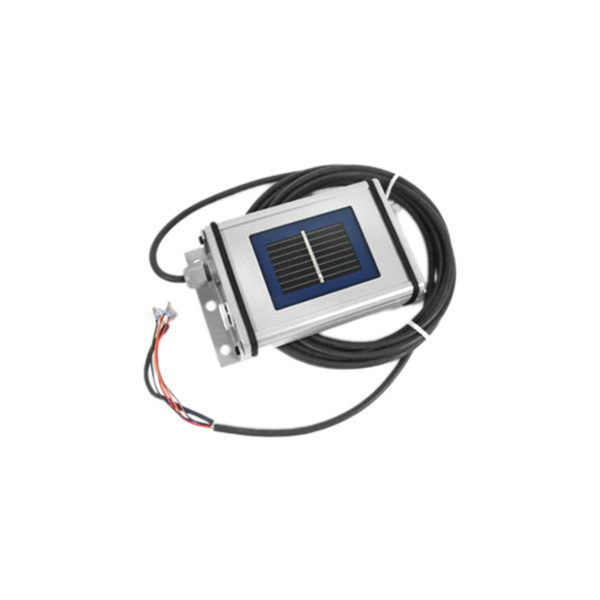

Meteocontrol irradiance sensor
Si-RS485TC-T-TM-MB
Larghezza155 mm
Altezza39 mm
Peso0,44 Kilogramm
Lunghezza del cavo di collegamento3 m
Protezione IP65
Profondità85 mm
N. di registrazione RAEE DE20681702
Descrizione Prodotto
The SI-RS485TC-T is used to record
the solar irradiance intensity.
Furthermore, it can also record the module
temperature - interal and external measurement -
of the measurement cell.
Supply Voltage: 24 V DC
Current consumption: typical 35 mA
Galvanic isolation: 1000V between supply and RS485 Bus
cable length: 3m
Descrizione Prodotto
Please note:
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
N. articolo: 4400200230
Meteocontrol irradiance sensor
Si-RS485TC-T-TM-MB
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,12 MB
|
|
