N. articolo: 4400200238

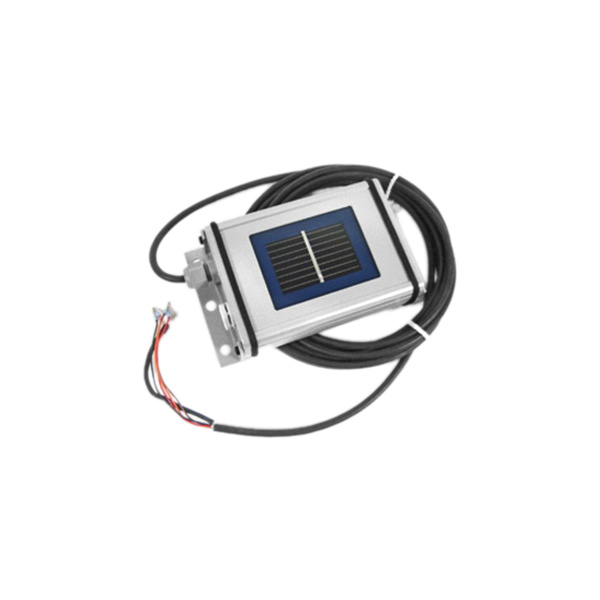

Meteocontrol irradiance sensor
SI-RS485TC-2T-MB
Larghezza155 mm
Altezza85 mm
Peso0,4 Kilogramm
Lunghezza del cavo di collegamento3 m
Protezione IP65
Profondità39 mm
N. di registrazione RAEE DE20681702
Descrizione Prodotto
The SI-RS485TC-2T-MB is used to record
the solar irradiance intensity.
Furthermore, it can also record the module
temperature of the measurement cell
and the ambient temperature.
Supply voltage: 24 V DC
Current consumption: typical 35 mA
Galvanic isolation: 1000 V between supply and RS485 bus
cable length: 3m
Descrizione Prodotto
Please note:
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
N. articolo: 4400200238
Meteocontrol irradiance sensor
SI-RS485TC-2T-MB
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,3 MB
|
|
