N. articolo: 4100100060

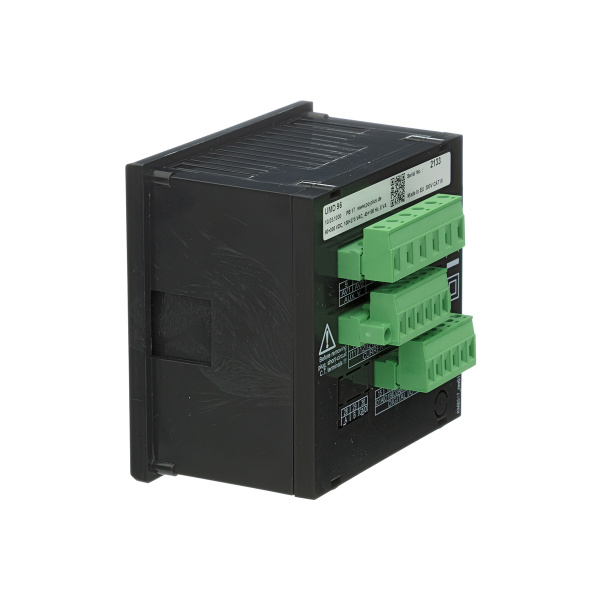

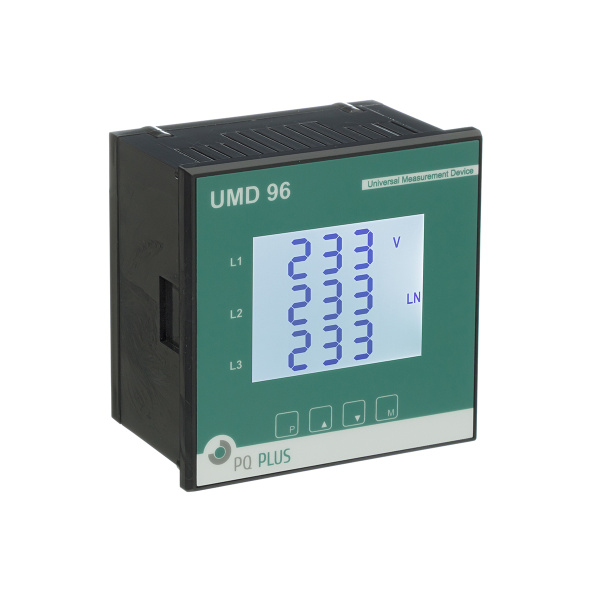

Power Analyzer UMD 96EL 24 VDC
communication via ethernet
Larghezza96 mm
Altezza96 mm
Peso0,3 Kilogramm
Profondità80 mm
N. di registrazione RAEE DE35442862
Descrizione Prodotto
The UMD 96EL is a powerful front panel meter (96x96mm)
and replaces all analog meters. It measures 3-phase current
and voltage in 6-quadrant operation in class 0.2 and
thus the work in class 0.5s as well as all common network variables,
e.g. harmonics up to the 50th harmonic.
It can be measured via current transformers with N/5A and N/1A.
The universal measuring device has an illuminated, large and easy-to-read digital display.
It is conveniently operated via 4 function keys
N. articolo: 4100100060
Power Analyzer UMD 96EL 24 VDC
communication via ethernet
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,55 MB
|
|
