N. articolo: 4400200411

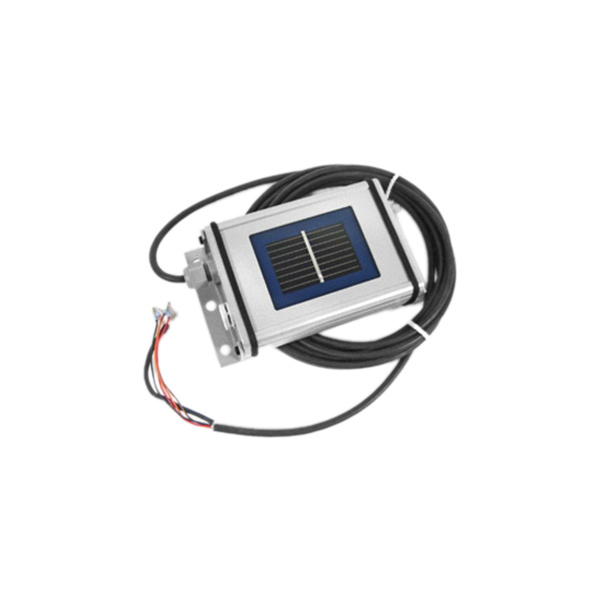

Sensore di irraggiamento Meteocontrol
Si-I-420-T (collegamento a 2 fili)
Larghezza155 mm
Altezza39 mm
Peso0,35 Kilogramm
Profondità85 mm
Descrizione Prodotto
optimized 2-wire connection
solar radiation measuring range: 0 to 1,500 W/m²
temperature measuring range: -40 °C to +90 °C
output signal for temperature and irradiation: 4 to 20 mA
operating temperature: -35 °C to +80 °C
connection cable: 3 x 0.14 mm², UV and heat resistant
cable length: 3m
calibration certificate for the sensor included in the scope of delivery.
solar radiation measuring range: 0 to 1,500 W/m²
temperature measuring range: -40 °C to +90 °C
output signal for temperature and irradiation: 4 to 20 mA
operating temperature: -35 °C to +80 °C
connection cable: 3 x 0.14 mm², UV and heat resistant
cable length: 3m
calibration certificate for the sensor included in the scope of delivery.
N. articolo: 4400200411
Sensore di irraggiamento Meteocontrol
Si-I-420-T (collegamento a 2 fili)
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,25 MB
|
|
