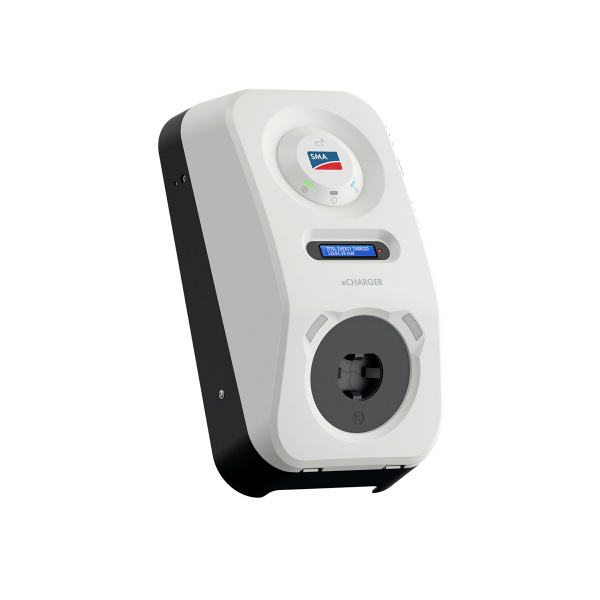

SMA eCHARGER

The wallbox comes without cable as shown in the illustration.
This is available separately as an accessory.

Three-phase AC charging station for fast and PV-optimized charging of electric vehicles in
electric vehicles in combination with the Sunny Home Manager 2.0.

- Configuration of the charging power from 1.38 to 22 kW
- Type 2 charging socket with shutter
- Boost function
- Automatic phase switching
- integrated 6mA DC residual current protection
- Charging station lighting
- RFID card reader incl. 2 x SMA RFID cards
- 2 Ethernet ports
- WLAN
- 6 digital inputs
- 1 digital output
- RS485 communication port
- Modbus TCP with SMA profile
- Prepared for OCPP 1.6 for billing charging processes
