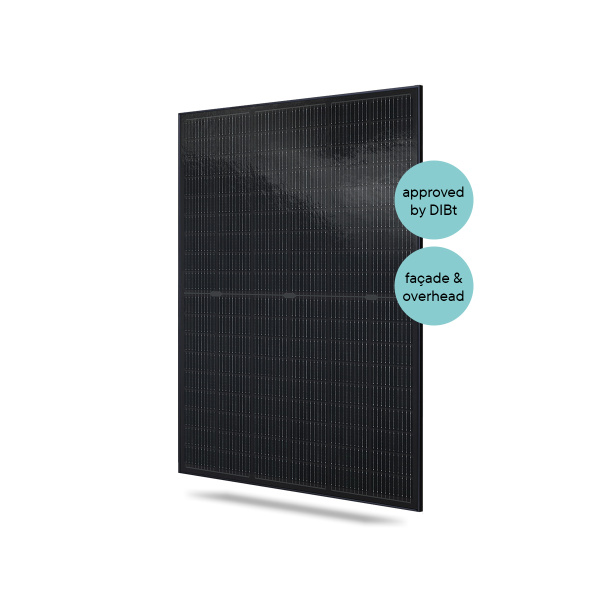

SoliTek SOLID Bifacial framed B.108 435 Full Black
SoliTek SOLID Bifacial framed B.108 435 Full Black
N. articolo: 2006600001

SoliTek SOLID Bifacial Framed B.108 435 Full Black

Bifacial, glass/glass, black grid mesh, abZ
Larghezza1134 mm
Altezza35 mm
Lunghezza1722 mm
Tensione massima di sistema 1500 V
Potenza nominale435 Wp
Garanzia di prodotto (anni)30
Colore corniceNero
Tipo di connettore CCEVO2A
Colore - backsheetnero
Tecnologia dei modulihalf-cut
Tecnologia delle celleTOPCON
Peso33 Kilogramm
Lunghezza del cavo di collegamento1,2 m
Efficienza del modulo22,27 %
Intensità della corrente del fusibile di stringa25 A
N. di registrazione RAEE DE55734541
Numero di celle108
Descrizione Prodotto
Rated power 435 Wp
monocrystalline cell
LxWxH: 1722x1134x35 mm
Power tolerance: 0/+5 W
Max. surface load: 7,0 kPa
Connector type: EVO2A
Module efficiency: 22,27 %
IEC 61215 certified
IEC 61730 certified
Glass: 3,2mm / TVG

Please refer to the latest warranty document of the manufacturer.

Descrizione Prodotto

The SoliTek SOLID Bifacial Framed B.108 435 W Full Black is an aesthetically completely black glass-glass photovoltaic module with 108 N-type TOPCon cells and an efficiency of approx. 22.3% at 435 Wp nominal power. Thanks to its bifacial construction, it generates up to 35% additional energy by utilizing light on the rear side. Its robust 35–40 mm black aluminum frame meets high safety standards (Fire Class A) and is certified by the German DIBt for overhead glazing – ideal for demanding architectural requirements.


  • TechnologyModule TechnologyThe SoliTek SOLID Bifacial Framed B.108 435 Full Black utilizes N-type TOPCon cell technology in a glass-glass construction, enabling high efficiency, low degradation, and additional energy gains through bifacial light utilization. The all-black appearance combines technical performance with architectural aesthetics and is certified for overhead glazing.
  • QualityQualitySoliTek modules are characterized by outstanding longevity and reliability – a two-year field study in Lithuania showed up to 16% more energy yield on an annual average and only low degradation over the test period. Furthermore, SoliTek is the world's first PV company with Cradle-to-Cradle Gold certification, and modules like the SOLID Bifacial feature Hail Class 5 protection as well as fire and environmental certificates, highlighting their high quality and safety standards.
  • SustainabilitySustainabilitySoliTek places a strong emphasis on sustainability: the modules are Cradle-to-Cradle Gold certified, meaning they are manufactured according to strict criteria for material health, circularity, and environmentally friendly production. Additionally, manufacturing takes place in Europe using 100% renewable energy, significantly reducing the CO₂ footprint and making the modules fully recyclable.
  • WarrantyWarrantyThe module offers a 30-year product and performance warranty, ensuring very low annual degradation. This ensures that performance remains at a high level even after decades, providing long-term investment security.
N. articolo: 2006600001
SoliTek SOLID Bifacial Framed B.108 435 Full Black
Bifacial, glass/glass, black grid mesh, abZ
Download
File Lingua Tipo Dimensione
File
Datasheet
Lingua
EN
Tipo
PDF
Dimensione
0,73 MB
