N. articolo: 5202000043

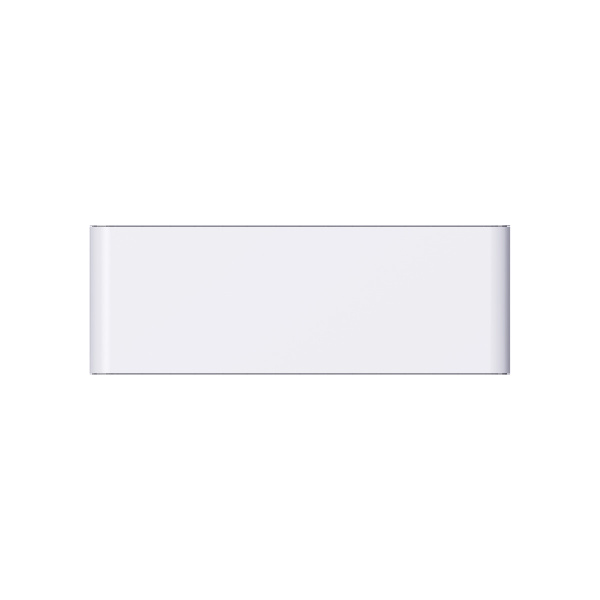

Sungrow Powerkeeper Battery module
Battery Module 12,5kWh
Larghezza800 mm
Energia12.48 kWh
Altezza270 mm
Potenza nominale12,480 Wp
Tensione nominale38,1 V
Tipo di batteriaLITHIUM
Batt-Reg.-Nr. DE62126691
Peso92 Kilogramm
Profondità massima di scarica100 %
Profondità405 mm
N. di registrazione RAEE DE28316743
Descrizione Prodotto
The PowerKeeper system from Sungrow is a flexibly configurable, pack-based LFP storage system for commercial and industrial applications. With 12.48 kWh per module, systems ranging from 49.9 kWh to 249.6 kWh can be implemented, and optionally even up to 1000 kWh via parallel clusters.
The new SH125CX hybrid inverter is used as the inverter.
Technical specifications:
- 12.48 kWh LFP battery module
- Scalable from 49.9 kWh to 249.6 kWh per system
- Optionally expandable up to 1000 kWh (cluster operation)
- 0100% DoD, active cell balancing
- High safety: aerosol suppression, smoke detection, pressure relief valve
- IP66 & C5-M, flood-proof (50 cm / 24 h)
- Pre-assembled stacks for quick installation
The new SH125CX hybrid inverter is used as the inverter.
Technical specifications:
- 12.48 kWh LFP battery module
- Scalable from 49.9 kWh to 249.6 kWh per system
- Optionally expandable up to 1000 kWh (cluster operation)
- 0100% DoD, active cell balancing
- High safety: aerosol suppression, smoke detection, pressure relief valve
- IP66 & C5-M, flood-proof (50 cm / 24 h)
- Pre-assembled stacks for quick installation
N. articolo: 5202000043
Sungrow Powerkeeper Battery module
Battery Module 12,5kWh
