N. articolo: 5202000038

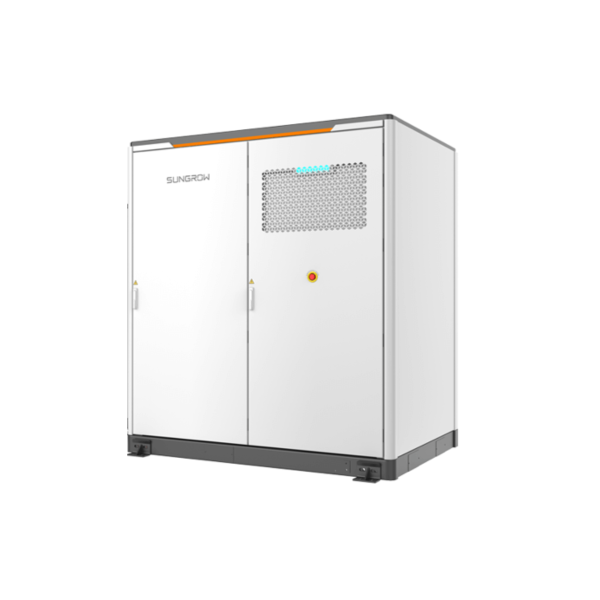

Sungrow PowerStack ST510kWh-125kW-4h
Battery system 510 kWh 125 kW outdoor
Larghezza2152 mm
Energia514 kWh
Altezza2470 mm
Potenza nominale514,000 Wp
Tensione nominale812 V
Tipo di batteriaLITHIUM
Batt-Reg.-Nr. DE62126691
Peso5.300 Kilogramm
Profondità massima di scarica100 %
N. di registrazione RAEE DE28316743
Descrizione Prodotto
The PowerStack ST514kWh-125kW-4h is an outdoor commercial energy storage system and offers reliable and efficient energy storage with a nominal capacity of 514 kWh and a power output of 125 kW.
Capacity: 514 kWh
Power: 125 kW
Nominal voltage (AC): 400V
Protection class: IP55
Capacity: 514 kWh
Power: 125 kW
Nominal voltage (AC): 400V
Protection class: IP55
Descrizione Prodotto
For correct processing, it is necessary to complete the checklist HERE.
One EMS300CP controller is required per system with up to 25 Sungrow PowerStacks.
A suitable smart meter is also required. This variant does not include a controller or meter; these must be ordered separately (see accessories)!
In addition, a third-party EMS is required for grid-compliant connection.
Due to the heavy weight of the complete battery, a suitable vehicle must be provided for unloading. Please note the specifications for the foundation. Off-grid power systems cannot currently be mapped.
One EMS300CP controller is required per system with up to 25 Sungrow PowerStacks.
A suitable smart meter is also required. This variant does not include a controller or meter; these must be ordered separately (see accessories)!
In addition, a third-party EMS is required for grid-compliant connection.
Due to the heavy weight of the complete battery, a suitable vehicle must be provided for unloading. Please note the specifications for the foundation. Off-grid power systems cannot currently be mapped.
Fully integrated system design
Efficient liquid cooling: Uniform temperature distribution (ΔT ≤ 2.5 °C) protects the battery cells and increases service life. Maximum safety: AI-supported cell monitoring, multi-stage overcurrent protection, and integrated fire protection concept (including gas detector, smoke detector, aerosol system).
Powerful and robust: 125 kW rated power with a system efficiency of up to 98.5%.
Parallel connection: Supports up to 25 units in parallel operation (grid-connected) for the 4-hour system. Smart monitoring: Via iSolarCloud app with remote maintenance, firmware updates, and real-time error analysis.
Technical Parameters:
Capacity (usable): 225 kWh
rated power (AC): 125 kW
Safety Class: IP55
Warranty: 5 Years (upgrade to 10 years possible)
Operating temperature: -30 °C to 50 °C
Communication: Ethernet / Modbus TCP
Dimensions (W x H x D): 2152 x 2470 x 1610 mm
Weight: 5.300 kg
N. articolo: 5202000038
Sungrow PowerStack ST510kWh-125kW-4h
Battery system 510 kWh 125 kW outdoor
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,54 MB
|
|
