N. articolo: 2001800060

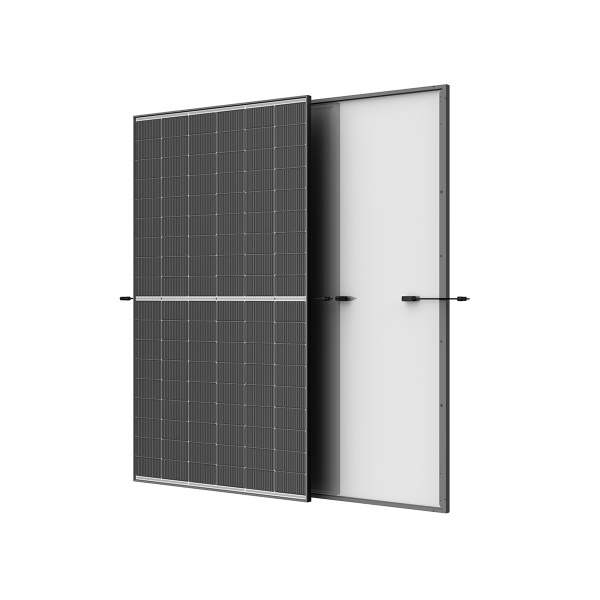

Trina TSM-520NEG18R.28
glass/glass, EVO2A, 1,3m, Vertex S+
Larghezza1134 mm
Altezza30 mm
Lunghezza1961 mm
Tensione massima di sistema 1500 V
Potenza nominale520 Wp
Garanzia di prodotto (anni)25
Colore corniceNero
Tipo di connettore CCEVO2A
Colore - backsheetbianco
Tecnologia dei modulihalf-cut
Tecnologia delle celleTOPCON
Peso23,5 Kilogramm
Lunghezza del cavo di collegamento1,3 m
Efficienza del modulo23,4 %
Intensità della corrente del fusibile di stringa30 A
N. di registrazione RAEE DE85507170
Numero di celle108
Descrizione Prodotto
Rated power 520 Wp
monocrystalline cell
LxWxH: 1961x1134x30 mm
Power tolerance: 0/+5 W
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 23,4 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
monocrystalline cell
LxWxH: 1961x1134x30 mm
Power tolerance: 0/+5 W
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 23,4 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
Descrizione Prodotto
The Trina NEG18R.28 is a high-performance glass-glass module from the Vertex S+ series featuring modern N-type i-TOPCon cell technology and an efficiency of up to 22.9 %. It impresses with high mechanical load capacity of up to 5,400 Pa snow load and 2,400 Pa wind load. Optimized module voltage allows for longer strings, while excellent resistance to fire, moisture, and corrosion ensures maximum safety and durability.
Module TechnologyThe Trina NEG18R.28 is based on advanced N-type i-TOPCon cells, which ensure higher efficiency, lower degradation, and excellent temperature stability through improved passivation and an optimized rear contact structure. The glass-glass construction additionally provides increased durability, superior fire resistance, and a significantly longer service life.
QualityTrina modules impress with high efficiency, solid workmanship, and an excellent price-performance ratio. Modern cell technologies such as N-type TOPCon ensure stable yields even under demanding conditions. The modules are considered reliable and durable, offering warranties of up to 25 years on the product and 30 years on performance, further underscoring their quality.
SustainabilityTrina modules stand for eco-friendly photovoltaics: by using high-efficiency cell technologies, they maximize energy yield and significantly reduce CO₂ emissions over their long service life. Additionally, Trina Solar focuses on sustainable production processes and recycling concepts to minimize the ecological footprint of the entire photovoltaic industry.
WarrantyThe Trina NEG18R.28 offers a 25-year product warranty covering material and workmanship defects, as well as a 30-year linear performance warranty. In the first year, at least 99 % of the nominal power is guaranteed, and after 30 years, the guaranteed performance is approximately 87.4 %. Both warranties apply when professionally installed and in compliance with the manufacturer's terms and conditions.
N. articolo: 2001800060
Trina TSM-520NEG18R.28
glass/glass, EVO2A, 1,3m, Vertex S+
Download
| File | Lingua | Tipo | Dimensione | |
|---|---|---|---|---|
|
File
Datasheet
|
Lingua
EN
|
Tipo
PDF
|
Dimensione
0,31 MB
|
|
