N. articolo: 5001000051

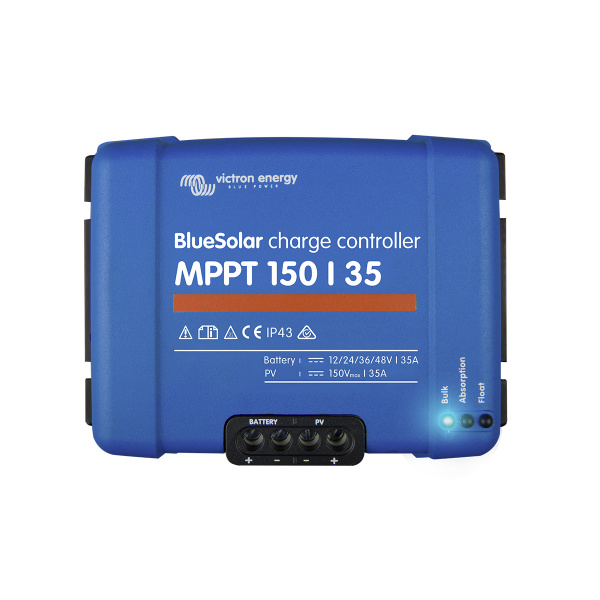

Victron BlueSolar MPPT 150/35
Regolatore di carica solare
Larghezza186 mm
Altezza130 mm
Tensione massima CC145 V
Potenza nominale0 Wp
Peso1,25 Kilogramm
Gruppo di prodottiCharge controllers
Protezione IP43
Profondità70 mm
Descrizione Prodotto
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Descrizione Prodotto
Please note:
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
N. articolo: 5001000051
Victron BlueSolar MPPT 150/35
Regolatore di carica solare
