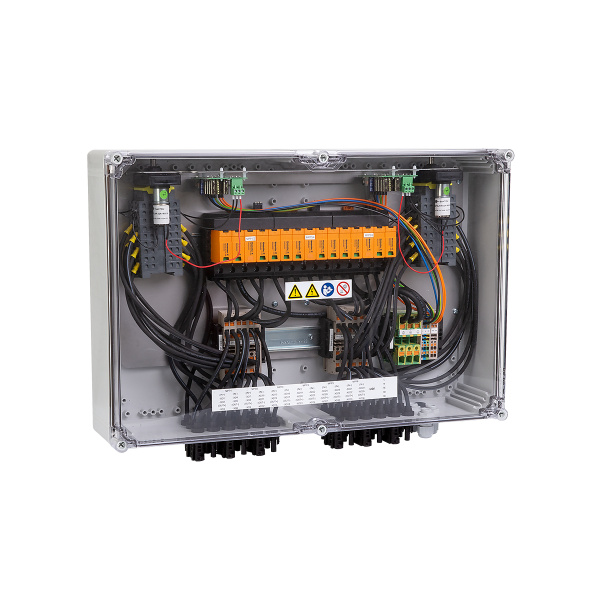

Weidmüller fireman switch

Fireman switch for the connection to 6 MPP tracker.
Suitable for remote disconnection of the DC side by the fire department.
Max. string voltage Uoc: 1100V

MPP1:
2 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

1 output, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

MPP2 to 6:
identical to MPP1

DC fireman switch:
Switching off by undervoltage triping.
Switching off by reaching a temperature of 100°C in the housing.
Automatic reconnection after the control voltage (230 V AC) is applied again.
With signal contact.

Connection of the fireman switch control line 230 VAC via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm².
Connection of the signal contact 24 VDC via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm².
Protection class: IP65.

All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 339x400x132mm.

Approval according to low voltage switchgear IEC 61439-1:2011 and EN 61439-2:2011
