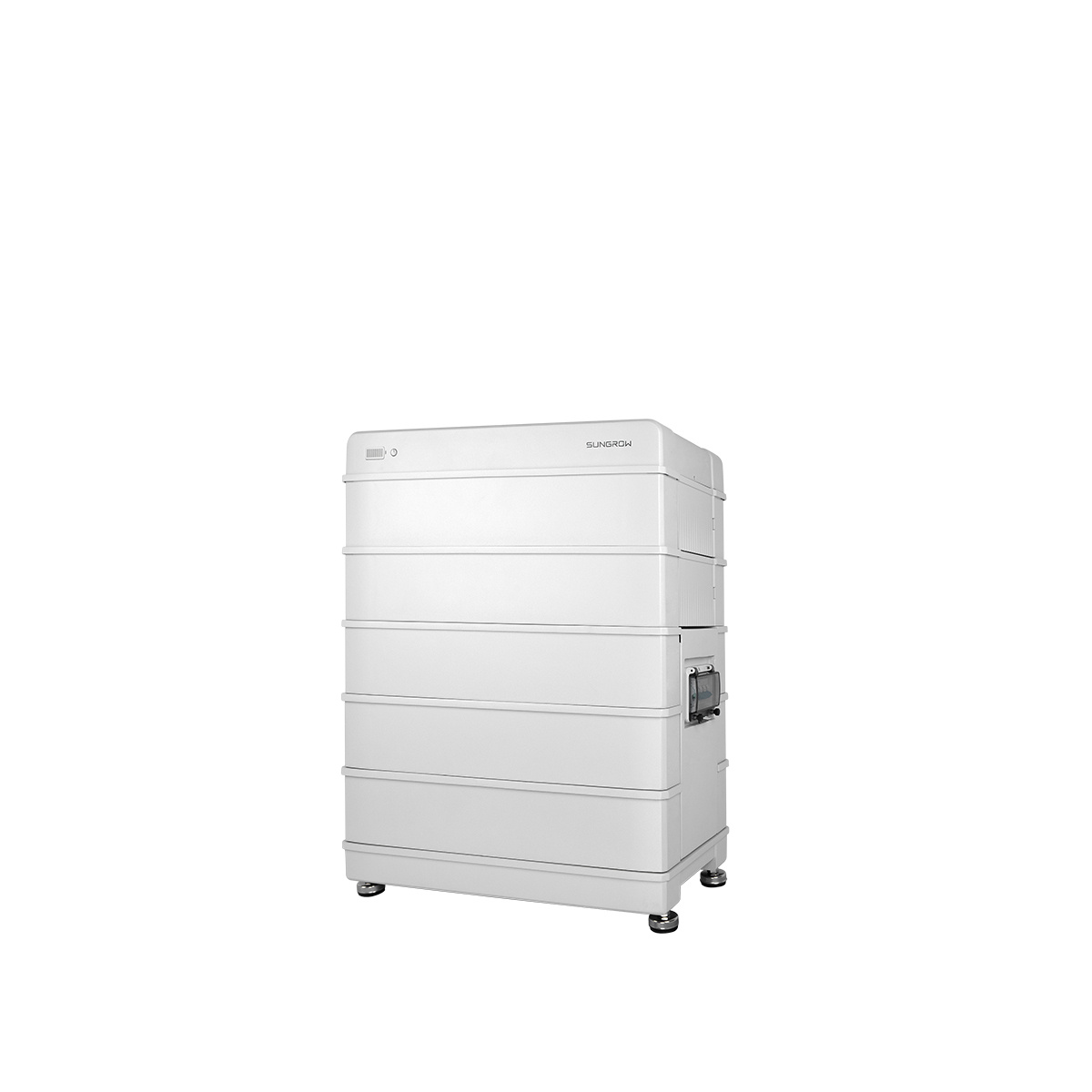

Sungrow SBR160

Batteria 16kWh
Numero di articolo
5202000003
Tipo di batteria
Litio
Larghezza [mm]
625
Energia [kWh]
16
Peso [kg]
180
Altezza [mm]
805
Profondità massima di scarica [%]
100
Profondità [mm]
330
Tensione nominale [V]
320
Descrizione
The Sungrow SBR Series is a modular high voltage battery system for the usage with Sungrow hybrid inverters (currently the three phase SHxxRT series). It can be used for self-consumption increase and backup applications.

It offers the following features:

- Easy installation: Only one person necessary, handles support the installer; No need of wiring between the battery modules
- Small dimensions
- Easy commissioning, the battery is recognized automatically by the Sungrow iSolarcloud

The SBR160 consists of one base unit and 5 battery modules which use prismatic LFP cells.

The usable capacity is 16,0kWh with a nominal charge/discharge power of 9,6kW.

The battery has a degree of protection of IP55, thats why it can be used for indoor and protected outdoor installation. Please note the temperature range of 0°C to 50°C.

Sungrow includes 10 years of warranty.

Certification acc. to VDE 2510-50, UN38.3, IEC 62040 und IEC 62619
