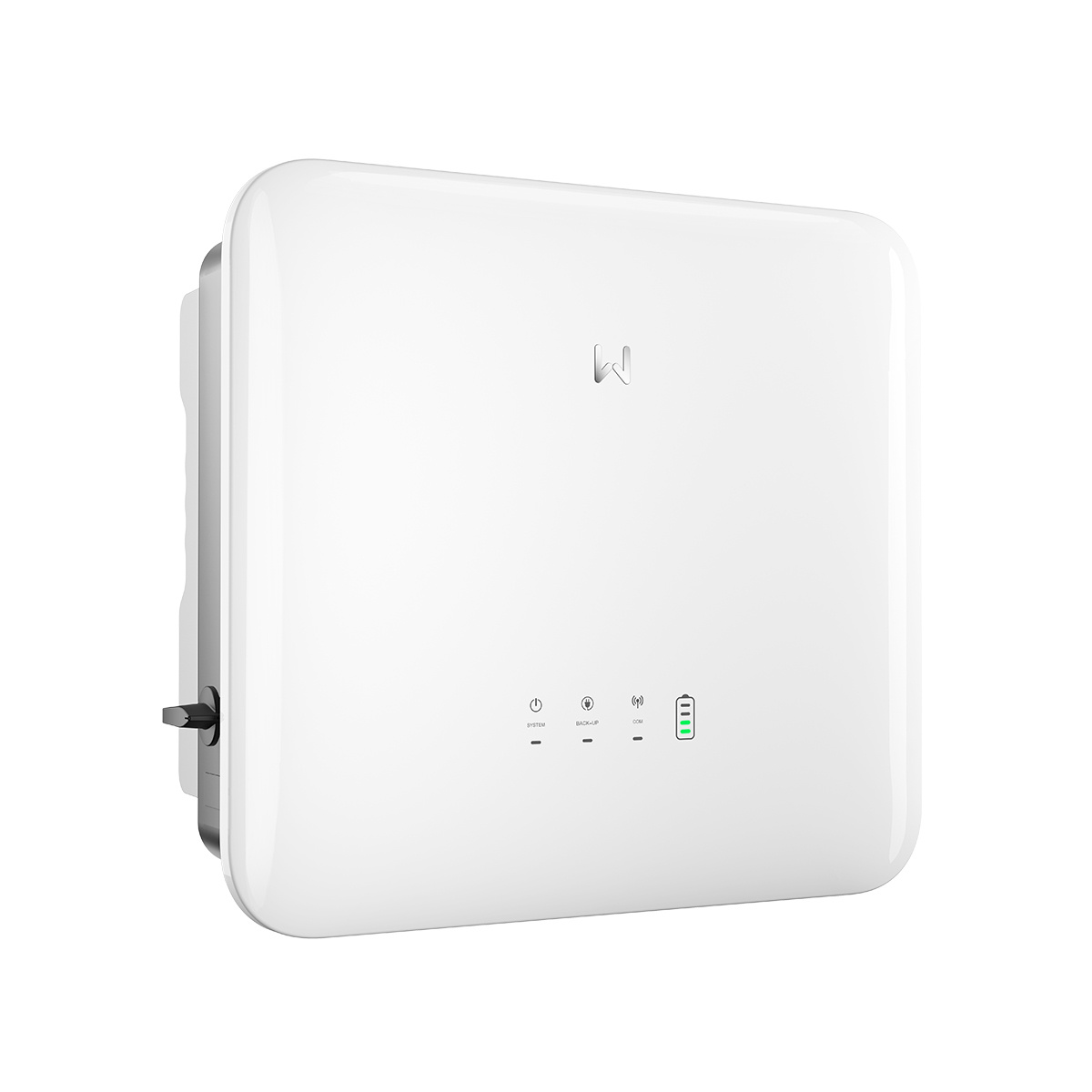

Goodwe GW12K-ET-20

Further development of the popular ET Plus+ series
Hybrid inverter for high-voltage batteries

Features:
max. input current per MPPT: 16 A
Incl. DC overvoltage protection type II
Integrated ripple control receiver connection
Potential-free contact for targeted control of loads (e.g. SGready heat pumps)

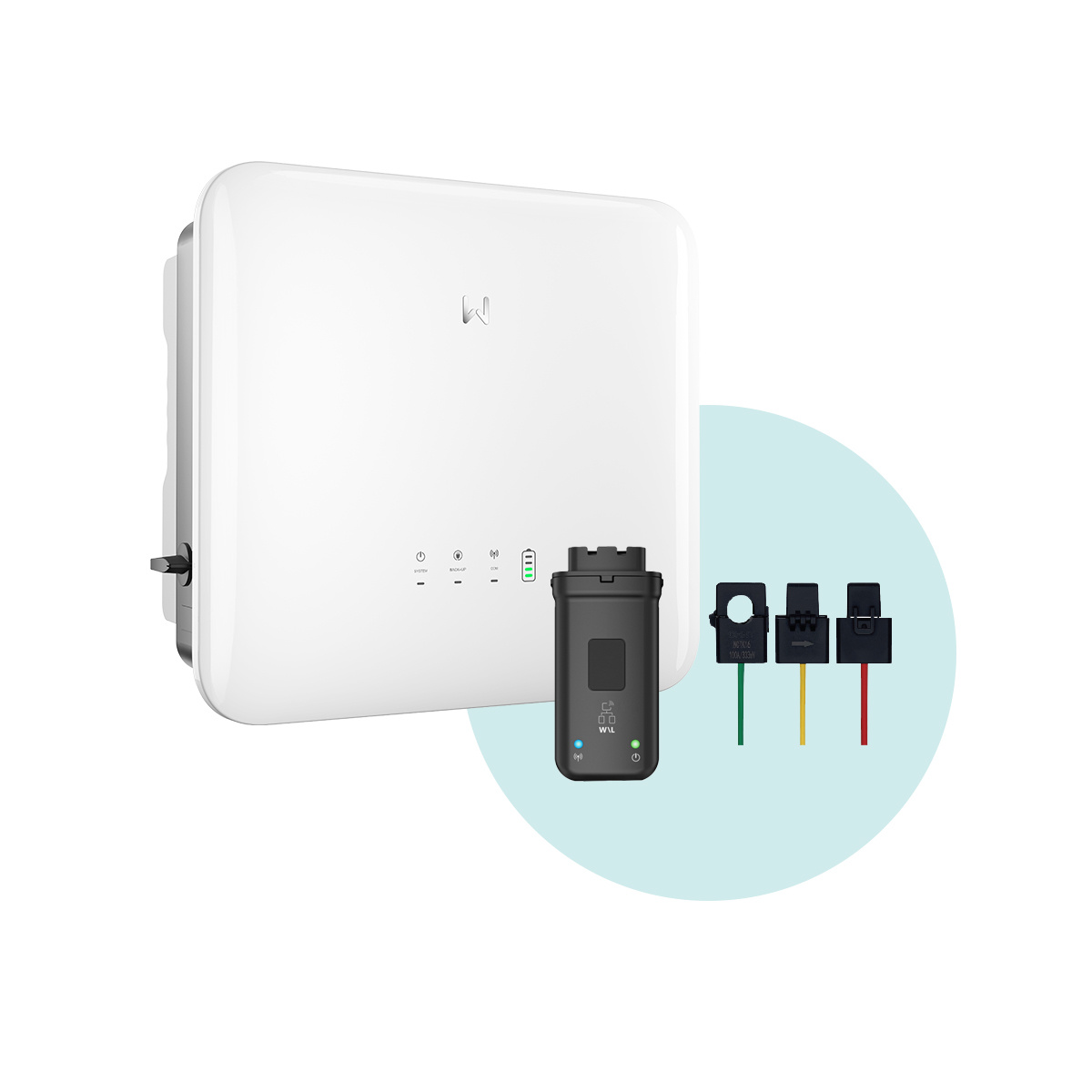

WLAN dongle included / LAN dongle optionally available
DC load-break switch
For mains parallel operation
Protection class: IP66
European efficiency: 97.5%
H x W x D 460/496/221 mm
Connectable PV power: 19.200 Wp
AC rated power: 12.000 W
max. DC input voltage: 1000V
Without display
High-voltage battery (see manufacturer documents for compatibility)
Backup function (backup power, 3-phase 12.000W)
Integrated smart meter
Warranty 5 years
optional up to 10 years
The manufacturer's country-specific warranty & service conditions apply
