In esaurimento
Numero di articolo: 3000200298

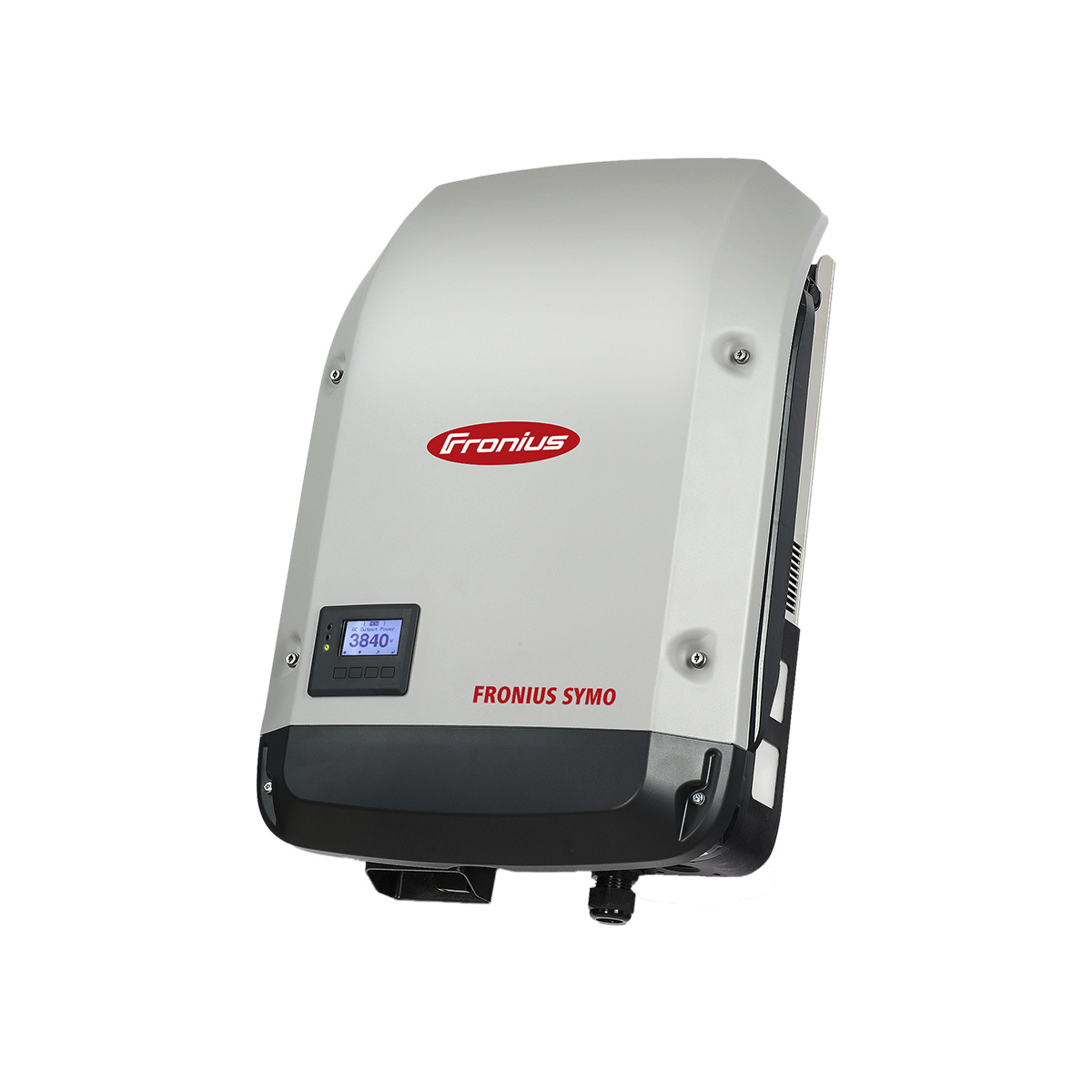

Fronius Symo 17.5-3-M
Inverter trifase con SPD tipo 1+2 M
1 Pezzo disponibile
Merkmale
Profondità [mm]
225
Larghezza [mm]
510
Altezza [mm]
725
Peso [kg]
43,4
Tipo di connettore CC
Morsetto
Tensione massima CC [V]
1,000
AC-potenza nominale [VA]
17,500
CC-potenza nominale [W]
17,880
Efficienza massima () [%]
98,0
Numero di fasi di immissione in rete
3
Lunghezza del cavo di collegamento [m]
2
Numero di trackers MPP
2
Tipo di inverter
Di stringa
Protezione IP
66
N. di registrazione RAEE DE
39936572
Descrizione
WLAN / Ethernet LAN
DC-circuit breaker
according VDE AR-N-4105 2018-11
VDE AR-N-4110:2018-11
for grid connection
degree of protection: IP 65
euro efficiency: 97,8 %
height x width x depth 725/510/225 mm
nominal power 17500 W AC
max. DC voltage: 1000V
Display inclusive
2 years warranty
5 years after registration
up to 20 years optional
Please note the country-specific
service& warranty conditions of
the manufacturer.
DC-circuit breaker
according VDE AR-N-4105 2018-11
VDE AR-N-4110:2018-11
for grid connection
degree of protection: IP 65
euro efficiency: 97,8 %
height x width x depth 725/510/225 mm
nominal power 17500 W AC
max. DC voltage: 1000V
Display inclusive
2 years warranty
5 years after registration
up to 20 years optional
Please note the country-specific
service& warranty conditions of
the manufacturer.
WEEE Reg. No.: DE 39936572
Please note:
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
This item will be ordered on an order related basis.
Cancellation/return and change of the
agreed conditions is excluded!
