Numero di articolo: 3002000080

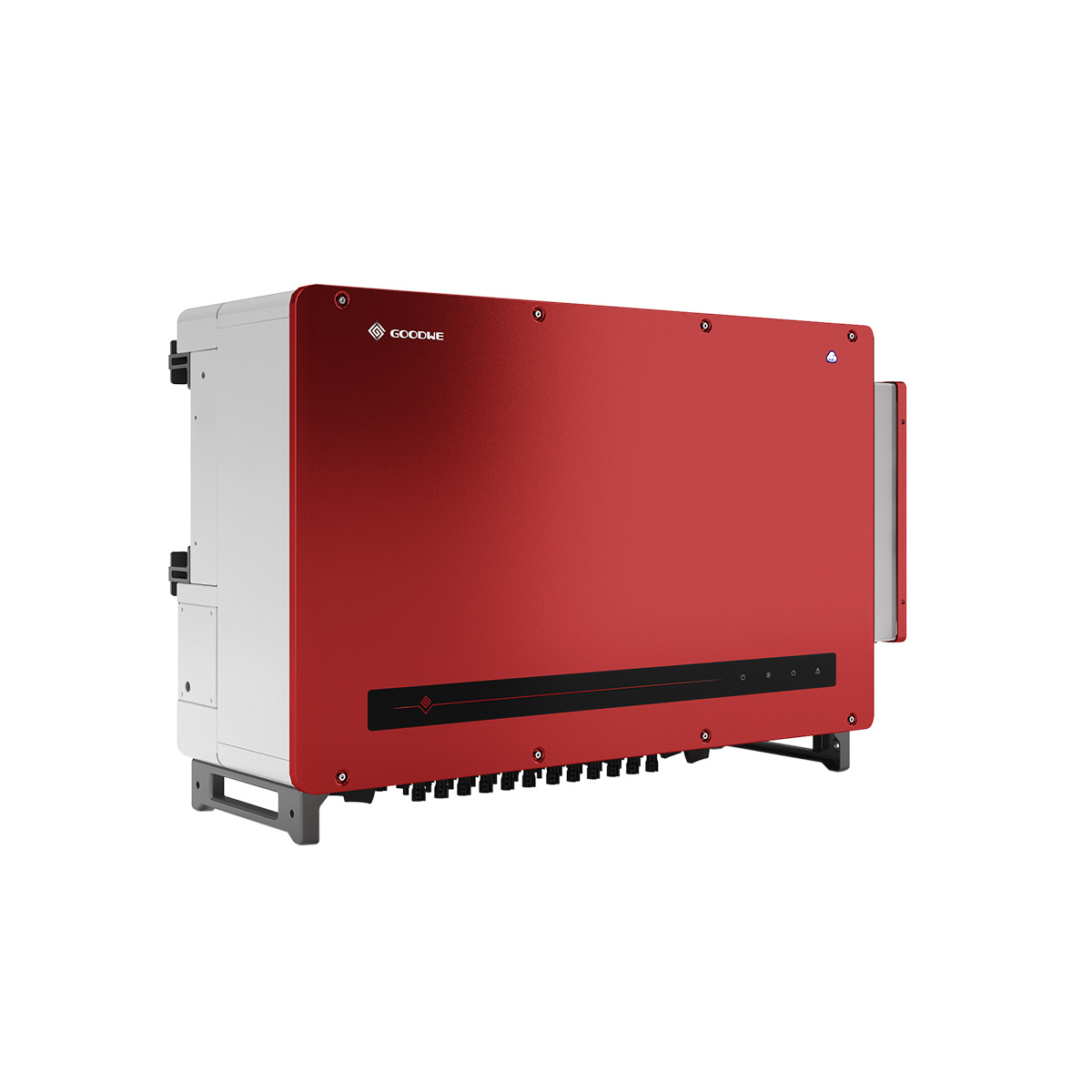

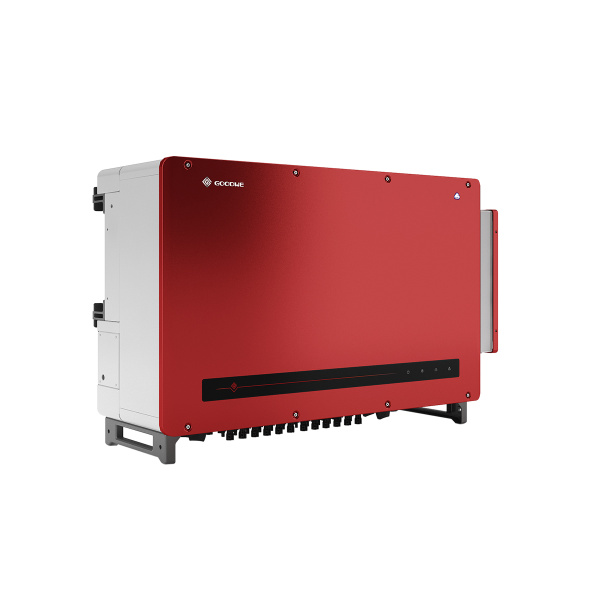

GoodWe GW100KHT AFCI
Inverter trifase
Prices and availabilities visible only after login
Merkmale
Profondità [mm]
350
Larghezza [mm]
1005
Altezza [mm]
600
Peso [kg]
89
Tipo di connettore CC
MC4
Tensione massima CC [V]
1100
AC-potenza nominale [VA]
100000
CC-potenza nominale [W]
100000
Efficienza massima () [%]
98,6
Numero di fasi di immissione in rete
3
Lunghezza del cavo di collegamento [m]
2
Numero di trackers MPP
10
Tipo di inverter
Di rete
Protezione IP
66
N. di registrazione RAEE DE
33154372
Descrizione
WLAN/RS485/PLC/Bluetooth
DC-Switch
acc. VDE AR-N-4110:2018-11
for grid connection
Protection class: IP66
Euro efficiency: 98,3%
H x W x D 678/1008/343 mm
AC Nominal Power: 100000W
max. DC Input voltage: 1100V
without display
DC-Switch
acc. VDE AR-N-4110:2018-11
for grid connection
Protection class: IP66
Euro efficiency: 98,3%
H x W x D 678/1008/343 mm
AC Nominal Power: 100000W
max. DC Input voltage: 1100V
without display
with AFCI
Warranty 5 years
optional up to 20 years
Please note the country-specific warranty and service conditions.
Attention: If the inverter is used in a plant where a voltage higher than 1000V can occur, the normal MC4 connectors must not be used. Please use MC4 Evo connectors in that case.
Not for Austria! No TOR D4
Warranty 5 years
optional up to 20 years
Please note the country-specific warranty and service conditions.
Attention: If the inverter is used in a plant where a voltage higher than 1000V can occur, the normal MC4 connectors must not be used. Please use MC4 Evo connectors in that case.
Not for Austria! No TOR D4
