Numero di articolo: 4400200477

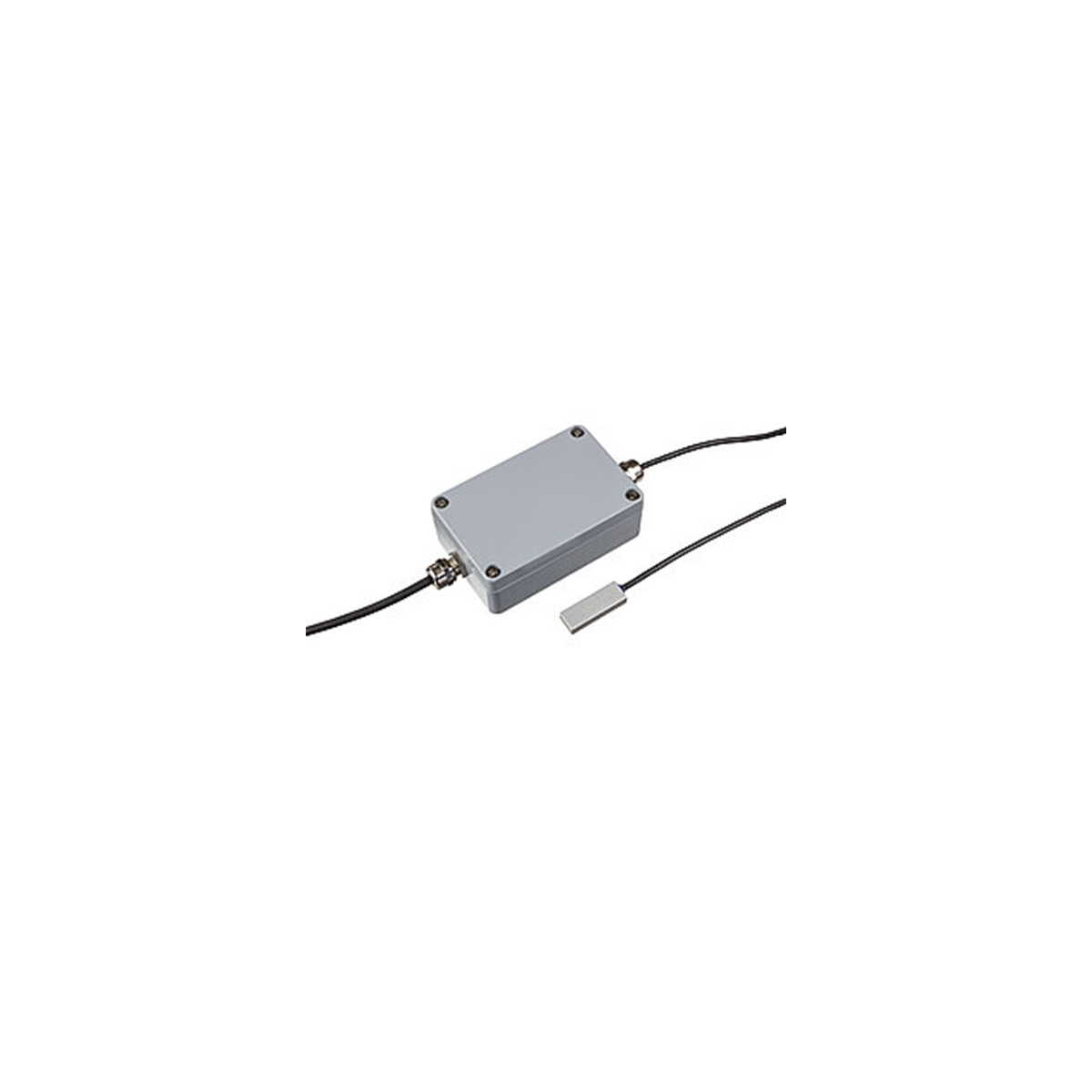

Meteocontrol module temperatur sensor
TM-RS485-MB
disponibile per settimana: 43/2026
Merkmale
Profondità [mm]
34
Larghezza [mm]
98
Altezza [mm]
64
Peso [kg]
0,6
Protezione IP
67
N. di registrazione RAEE DE
20681702
Descrizione
Sensor element: Pt1000 Klasse A as per EN 60751
Sensor housing: Self-adhesive aluminum block, 35 mm x 12 mm x 6 mm
Sensor cable: PUR sheath, shielded (LiYC11Y, 2 x 0.25 mm²), length: 3 m
Case material: powder coated aluminium
Operating temperature: Sensor element: -40 to +90 °C, case: -40 to +80 °C
Degree of protection: IP67
Sensor housing: Self-adhesive aluminum block, 35 mm x 12 mm x 6 mm
Sensor cable: PUR sheath, shielded (LiYC11Y, 2 x 0.25 mm²), length: 3 m
Case material: powder coated aluminium
Operating temperature: Sensor element: -40 to +90 °C, case: -40 to +80 °C
Degree of protection: IP67
