Numero di articolo: 5202000038

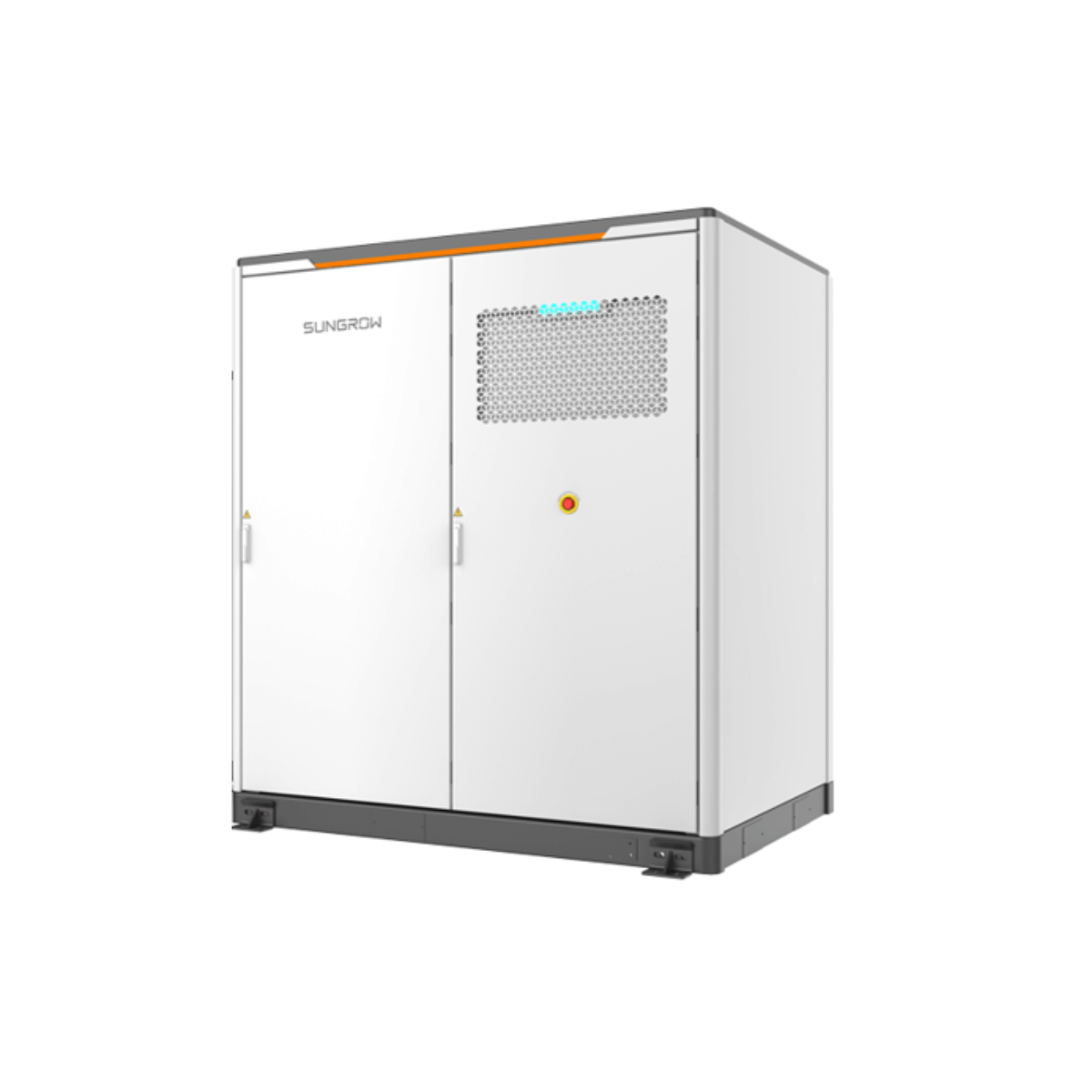

Sungrow PowerStack ST510kWh-125kW-4h
Battery system 510 kWh 125 kW outdoor
disponibile per settimana: 23/2026
Merkmale
Larghezza [mm]
2,152
Altezza [mm]
2,470
Peso [kg]
5
Energia [kWh]
514
Profondità massima di scarica [%]
100
Tipo di batteria
Litio
Tensione nominale [V]
812
Batt-Reg.-Nr. DE
62,126,691
N. di registrazione RAEE DE
28316743
For correct processing, it is necessary to complete the checklist for commercial energy systems in the download area.
One EMS300CP controller is required per system with up to 25 Sungrow PowerStacks.
A suitable smart meter is also required. This variant does not include a controller or meter; these must be ordered separately (see accessories)!
In addition, a third-party EMS is required for grid-compliant connection.
Due to the heavy weight of the complete battery, a suitable vehicle must be provided for unloading. Please note the specifications for the foundation. Off-grid power systems cannot currently be mapped.
One EMS300CP controller is required per system with up to 25 Sungrow PowerStacks.
A suitable smart meter is also required. This variant does not include a controller or meter; these must be ordered separately (see accessories)!
In addition, a third-party EMS is required for grid-compliant connection.
Due to the heavy weight of the complete battery, a suitable vehicle must be provided for unloading. Please note the specifications for the foundation. Off-grid power systems cannot currently be mapped.
Fully integrated system design
Efficient liquid cooling: Uniform temperature distribution (ΔT ≤ 2.5 °C) protects the battery cells and increases service life. Maximum safety: AI-supported cell monitoring, multi-stage overcurrent protection, and integrated fire protection concept (including gas detector, smoke detector, aerosol system).
Powerful and robust: 125 kW rated power with a system efficiency of up to 98.5%.
Parallel connection: Supports up to 25 units in parallel operation (grid-connected) for the 4-hour system. Smart monitoring: Via iSolarCloud app with remote maintenance, firmware updates, and real-time error analysis.
Technical Parameters:
Capacity (usable): 225 kWh
rated power (AC): 125 kW
Safety Class: IP55
Warranty: 5 Years (upgrade to 10 years possible)
Operating temperature: -30 °C to 50 °C
Communication: Ethernet / Modbus TCP
Dimensions (W x H x D): 2152 x 2470 x 1610 mm
Weight: 5.300 kg
