Numero di articolo: 5202100054

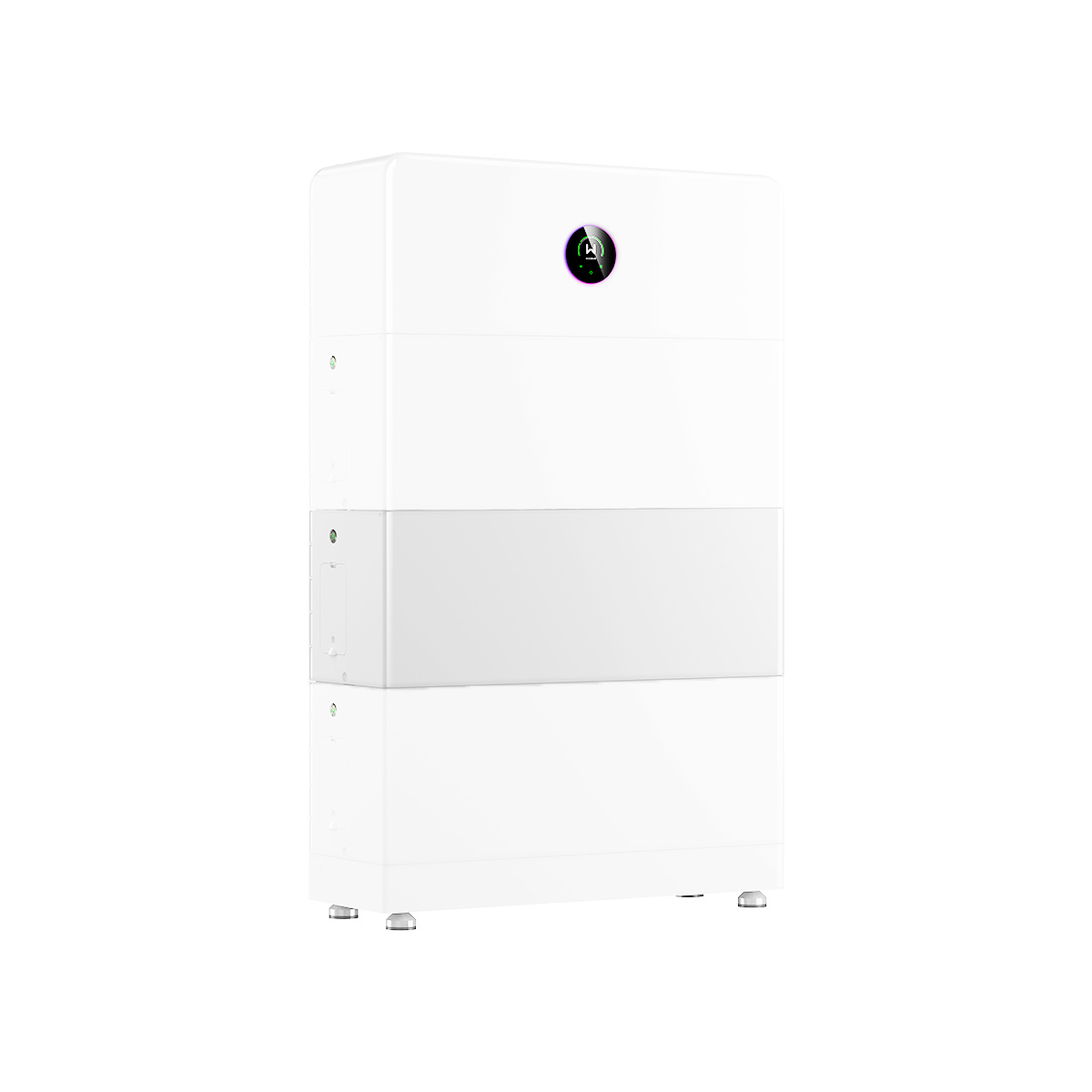

Goodwe GW8.3-BAT-D-G20
battery module 8 kWh ESA-series
Disponibile
Merkmale
Larghezza [mm]
800
Altezza [mm]
326
Peso [kg]
80
Energia [kWh]
8
Profondità massima di scarica [%]
100
Tipo di batteria
Litio
Tensione nominale [V]
380
Batt-Reg.-Nr. DE
16,330,567
N. di registrazione RAEE DE
33154372
Descrizione
Goodwe GW8.3-BAT-D-G20 battery module
nominal power: 8.32 kWh
Usable energy: 8 kWh
voltage range (single-phase): 350 - 550 V
voltage range (three-phase): 700 - 950 V
max. charging current: 19 A
max. discharging current: 21 A
weight: 80 kg
nominal power: 8.32 kWh
Usable energy: 8 kWh
voltage range (single-phase): 350 - 550 V
voltage range (three-phase): 700 - 950 V
max. charging current: 19 A
max. discharging current: 21 A
weight: 80 kg
Note:
Accessories for floor mounting are included with the inverter.

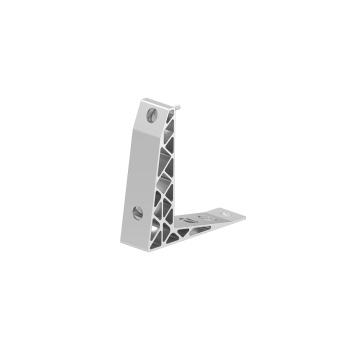

Brackets for wall mounting must be ordered separately (5202100055)
Accessories for floor mounting are included with the inverter.
Brackets for wall mounting must be ordered separately (5202100055)
