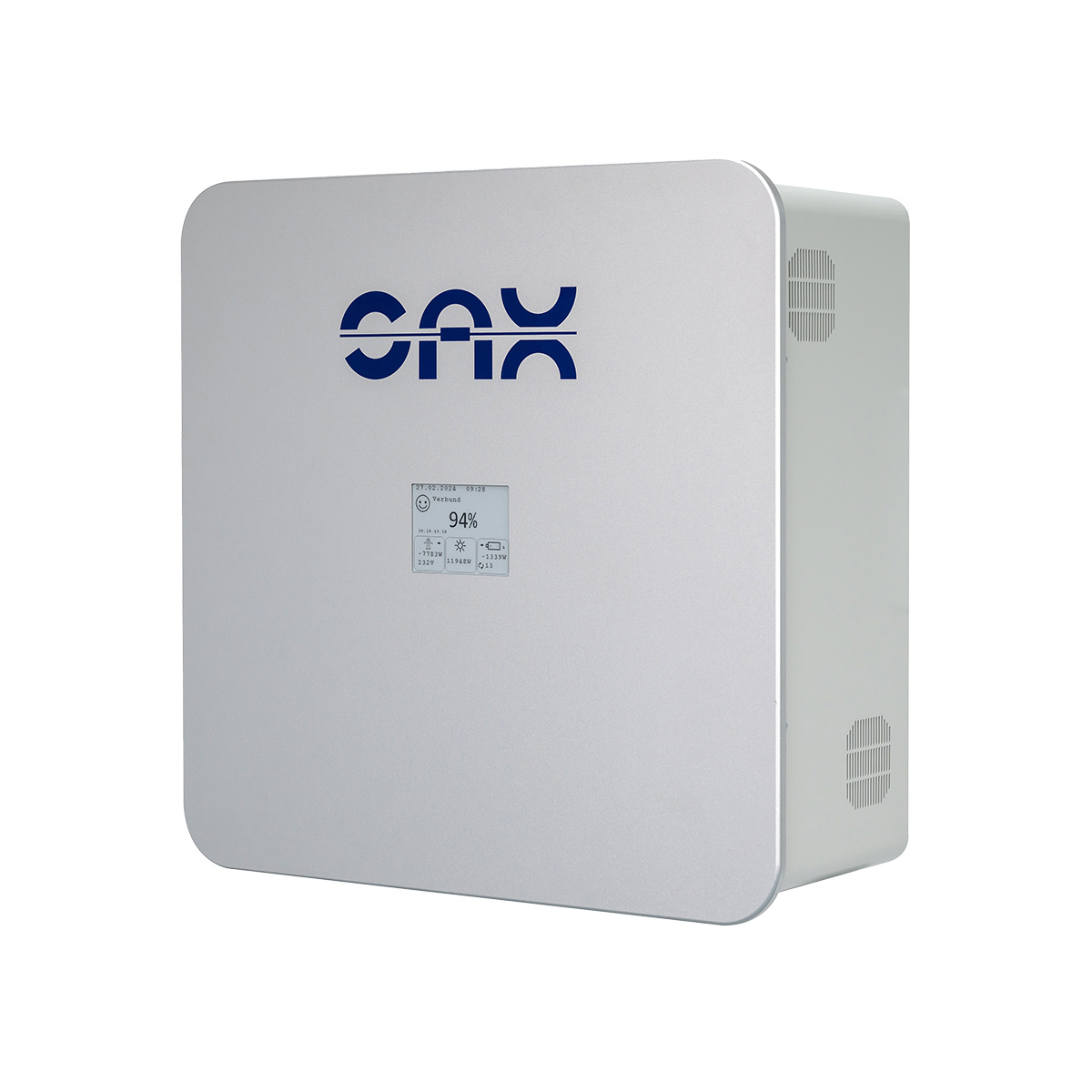

SAX Power Home 5,8 NL Version

The SAX Power Home 5.8 kWh is an innovative AC battery storage system with integrated inverter function, which has been specially developed for use in private photovoltaic systems. Thanks to its patented circuit technology, the system supplies alternating current directly from the battery - without the need for a separate inverter. This makes retrofitting particularly easy and new installations cost-efficient.

Caution: This is the version for the Netherlands (only with NL Gridcode!



Key technical data:

Nominal capacity: 5.76 kWh
Usable capacity: 5.2 kWh
Modular expandability: up to 17.3 kWh
Battery type: LiFePO (lithium iron phosphate)
Cell data: 3.2 V; 15 Ah
 Nominal voltage: 230 V AC, single-phase
 Nominal power: 4.6 kW
 Nominal current: 20 A (16 A for AT/CH)
 Efficiency (conversion): 98.6%
 Standby consumption: < 4 W
Dimensions (W × H × D): 530 × 530 × 250 mm
Weight: 53 kg
Cooling: Passive
Display: e-Paper
Communication: Modbus RTU, TCP/UDP (RS485, RJ45)
Protection class: 1 (protective earthing)
 Protection class: IP30
 Gridcode for NL
 Battery warranty: 10 years with at least 80% remaining capacity
 Ambient temperature (operation): 5 to 35 °C
 Relative humidity: max. 90%

Special features:

- All-in-one system: integrated inverter - no hybrid inverter required

- Highest efficiency due to Multilevel technology
- Easy installation: install smart meter, mount storage unit, connect - done
- Emergency power capable: Automatic switchover in the event of a power failure
- Future-proof: Expandable without time limit, also compatible with older modules
- Sustainable: Cobalt-free cells, developed and manufactured in Germany
