Numero di articolo: 3602200005

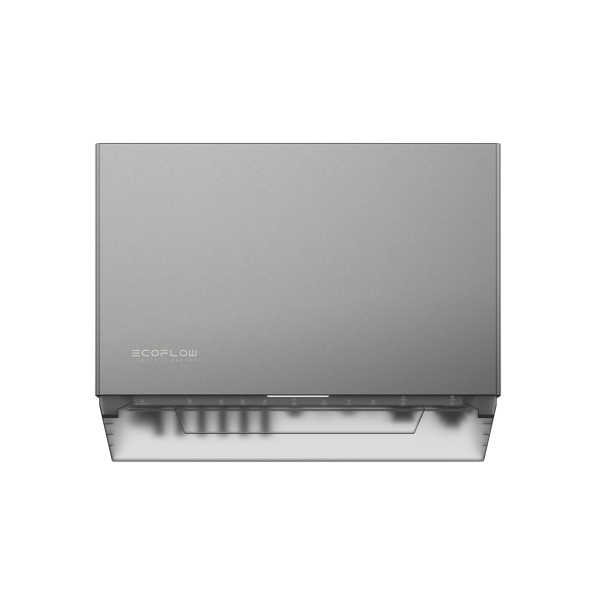

EcoFlow PowerOcean Plus 20kW
Hybrid Inverter 3~
8 Pezzo disponibile
Merkmale
Profondità [mm]
235
Larghezza [mm]
636
Altezza [mm]
498
Peso [kg]
41
Tipo di connettore CC
MC4 KOMPATIBEL
Tensione massima CC [V]
1,000
AC-potenza nominale [VA]
20,000
CC-potenza nominale [W]
20,600
Numero di fasi di immissione in rete
3
Numero di trackers MPP
3
Tipo di inverter
Ibrido
Protezione IP
65
N. di registrazione RAEE DE
52101194
Descrizione
Hybrid inverter for EcoFlow high-voltage batteries (Power Ocean/Ocean 2)
- Includes DC overvoltage protection type II
- Universal load connection (heat pumps, smart plugs, EcoFlow Wallbox) via the built-in EcoFlow EMS
WLAN/LAN/4G combo dongle included
DC load break switch
according to VDE AR-N-4105:2018-11
for grid parallel operation
Protection class: IP65
European efficiency: 97%
H x W x D 498/636/235 mm
Connectable PV power: 35000W
AC rated power: 20000W
Max. DC input voltage: 1000V
Suitable for EcoFlow Power Ocean/Ocean 2 battery modules
Backup function (replacement power, 3-phase 20000W)
Meter with 80A is already integrated in the inverter.
15-year warranty
The manufacturer's country-specific warranty and service conditions apply.
- Includes DC overvoltage protection type II
- Universal load connection (heat pumps, smart plugs, EcoFlow Wallbox) via the built-in EcoFlow EMS
WLAN/LAN/4G combo dongle included
DC load break switch
according to VDE AR-N-4105:2018-11
for grid parallel operation
Protection class: IP65
European efficiency: 97%
H x W x D 498/636/235 mm
Connectable PV power: 35000W
AC rated power: 20000W
Max. DC input voltage: 1000V
Suitable for EcoFlow Power Ocean/Ocean 2 battery modules
Backup function (replacement power, 3-phase 20000W)
Meter with 80A is already integrated in the inverter.
15-year warranty
The manufacturer's country-specific warranty and service conditions apply.
