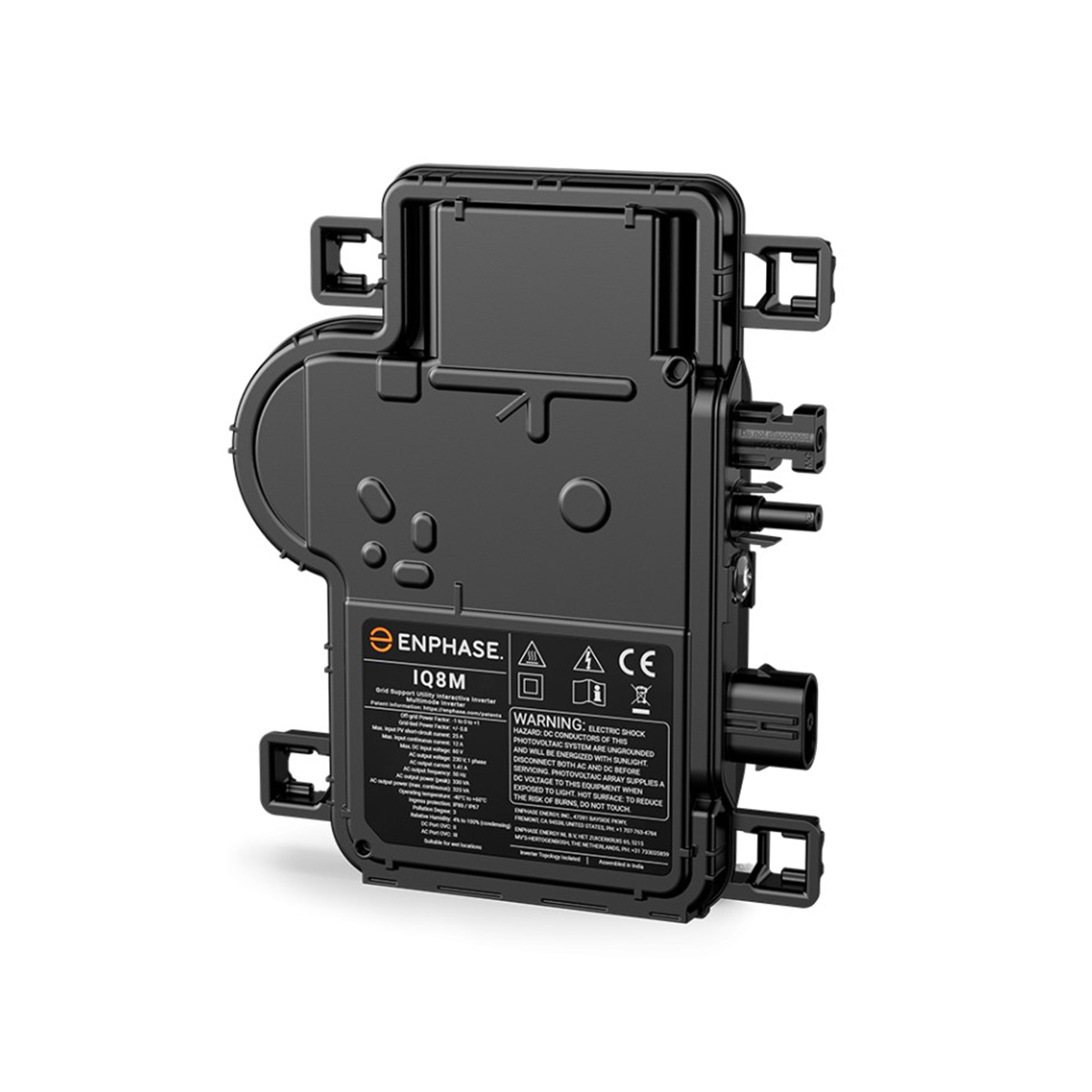

Enphase IQ8M (IQ8M-72-M-INT)

The Enphase system is new way of inverter system which allows building up systems in almost any size by using only few different basic components.

The IQ8 series devices are actually the inverters of the Enphase system and are located at the PV modules.The IQ8M series is currently only certified for Netherlands and France.

The new M-Series now have integrated MC4 connectors, a separate assembly of the adapter is no longer necessary.


Features of the IQ8M:

- Suitable for 60 or 72 cell PV modules
- Easy Plug & Play connection
- Module power range 235-440+ W
- MC4 module connectors
- Max output power 295VA
- 25 years warranty, ensured by more than 1 million hours of testing at Enphase
- Powerline-communication
- Euro-efficiency 96,5%
- Degree of protection IP67
- H x W x D 212/175/30,2 mm (without bracket)
- VDE AR-N-4105:2018-11


Recommended module power: Up to 400Wp.

Please also refer to the Module compatibility calculator from Enphase (for selecting the right inverter module, please also refer to the direct link in the header)

https://enphase.com/en-us/support/module-compatibility

The fixation on the mounting system is done by a screw fitting (IBC Topfix and Aerofix, please have a look on the accessories section) or with a module frame clamp.

The AC connection between the inverters is done via the Q-cable.

For operation of the system, an Envoy-Gateway is needed. For countries where a mechanical grid and plant protection is needed (currently most countries in the EU), an additional Q-Relay is also necessary.

Please note the country specific regulations for warranty and service of the manufacturer.
