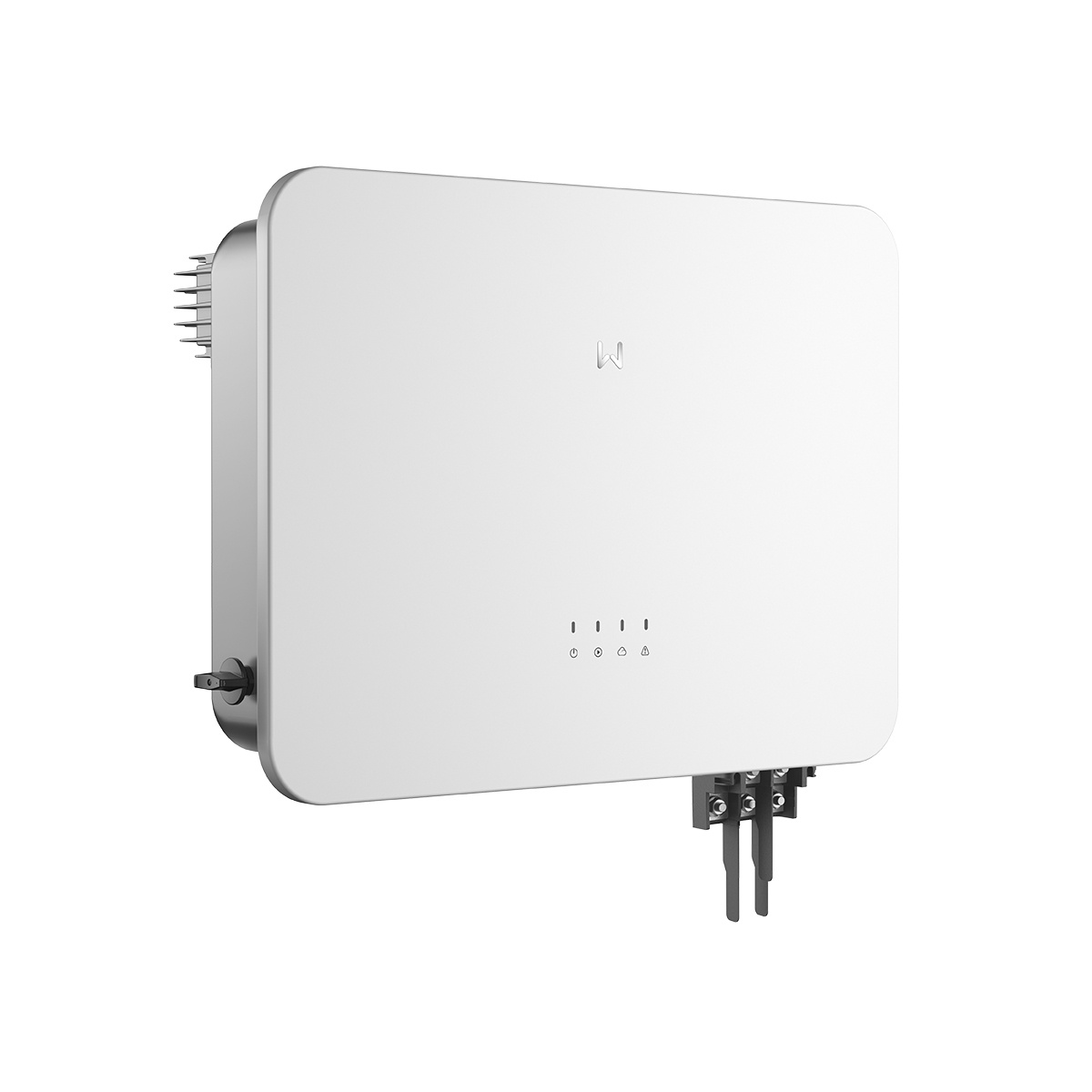

Goodwe GW50K-SDT-C30

The GoodWe GW50K-SDT-C30 is a three-phase string inverter from the SDT-G3 series for commercial and industrial photovoltaic systems. With four MPPTs, a maximum efficiency of 98.7%, and the possibility of PV oversizing up to 180%, the device is designed for high energy yields even with complex string layouts. Integrated protection functions on both the AC and DC sides, as well as the IP66 protection class, ensure reliable operation under demanding environmental conditions. The low-noise operation of under 50 dB also allows for use in noise-sensitive areas. This makes the inverter suitable for high-performance C&I systems with high requirements for efficiency and operational safety.

• Warranty & SafetyThe GoodWe GW50K-SDT-C30 features a standard product warranty of five years and is designed for long-term use in commercial and industrial PV systems. The safety concept includes integrated protection functions such as Type II surge protection on the AC and DC sides, as well as grid-side mechanisms like anti-islanding and arc fault circuit interruption (AFCI). The IP66 protection class enables reliable operation indoors and outdoors and contributes to high system availability even in adverse weather conditions.

  Key Safety Features
  • Type II surge protection on AC and DC sides
  • AFCI function and anti-islanding for safe grid operation
  • IP66 protection class for flexible indoor and outdoor mounting
• ConnectivityFor integration into professional monitoring and plant management systems, the inverter provides extensive, data-sheet-based connectivity functions. Communication takes place via RS485 and—depending on the communication module used—can be supplemented with LAN, WLAN, or Bluetooth interfaces. Supported protocols such as Modbus-RTU and Modbus-TCP enable connection to higher-level control systems and energy management solutions. In conjunction with the GoodWe monitoring portal, performance and operating data can be monitored centrally and used for service and maintenance processes.

  Communication and System Monitoring

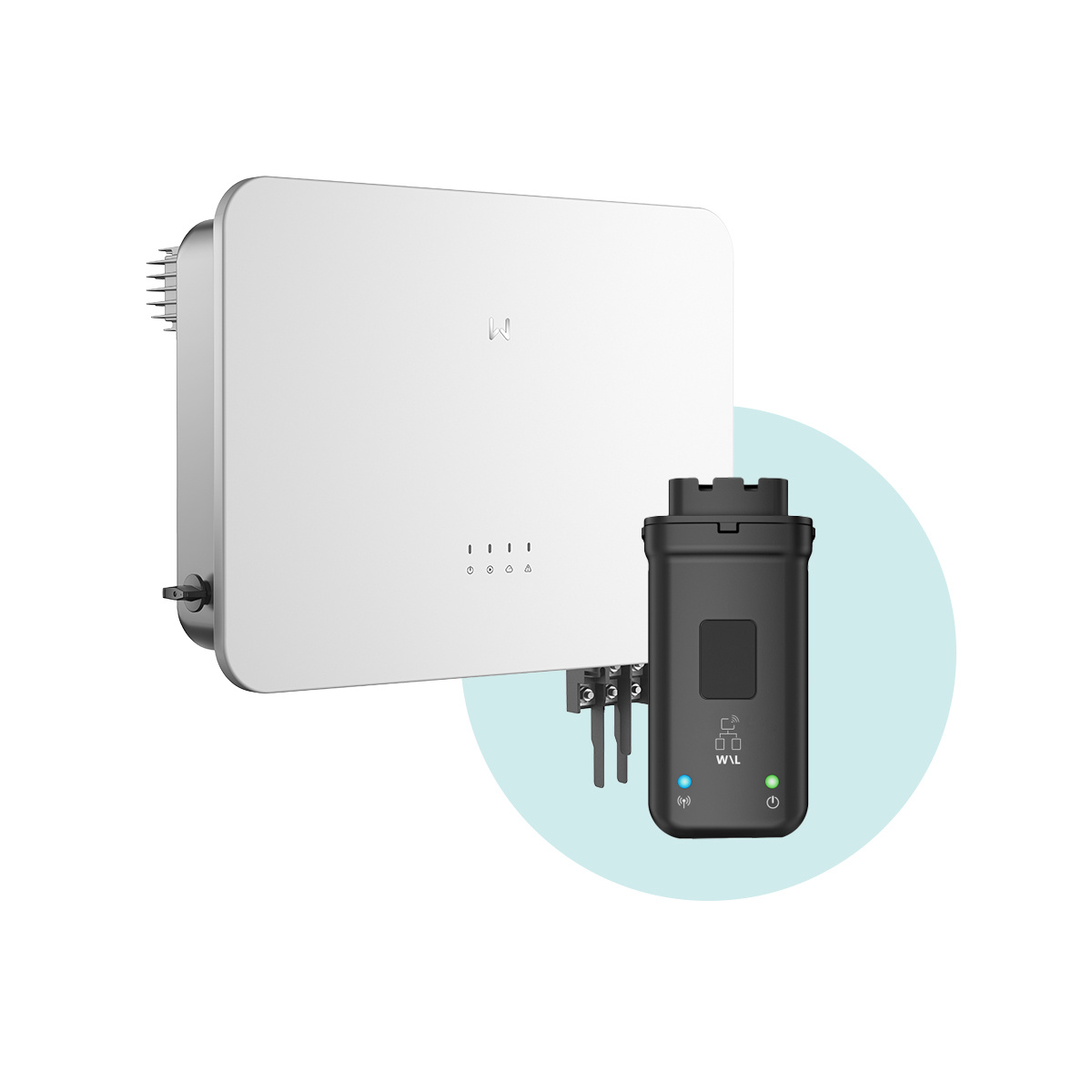

  • RS485 interface as well as optional LAN, WLAN, and Bluetooth connectivity
  • Support for Modbus-RTU and Modbus-TCP for system integration
  • Centralized monitoring and remote maintenance via the GoodWe monitoring portal
• Installation ConceptThe installation concept of the GoodWe GW50K-SDT-C30 is designed for efficient installation in commercial PV systems. Despite the 50 kW power class, the compact design allows for flexible integration into various system layouts. Clearly structured connection areas support rapid installation and commissioning. For installers and project planners, this results in excellent predictability, especially for projects with multiple inverters or limited mounting space.
• SustainabilityThe high efficiency and durable construction support sustainable PV system concepts. Efficient energy conversion improves the yield balance over the entire life cycle and reduces the resource requirements per kilowatt-hour generated. Low-noise operation allows for use in sensitive environments. The device is registered in accordance with legal requirements (WEEE-Reg.-No. DE 33154372) and ensures professional disposal at the end of its service life.
