Numero di articolo: 3601200048

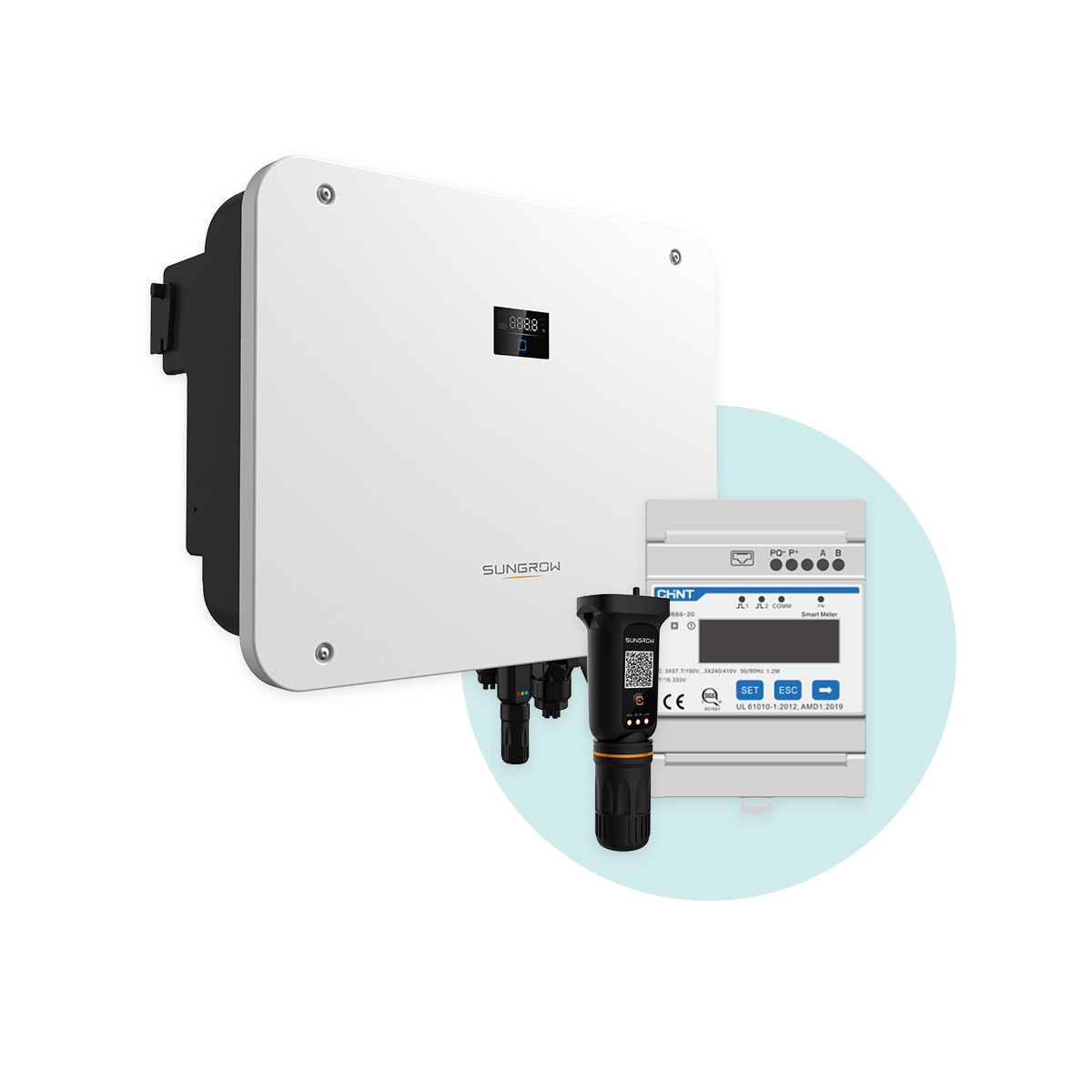

Sungrow SH8T
Hybrid Inverter 3~
disponibile per settimana: 50/2026
Merkmale
Profondità [mm]
195
Larghezza [mm]
620
Altezza [mm]
480
Peso [kg]
32
Tipo di connettore CC
MC4
Tensione massima CC [V]
1,000
AC-potenza nominale [VA]
8,000
12,000
CC-potenza nominale [W]
8,208
Efficienza massima () [%]
98,0
Numero di fasi di immissione in rete
3
Numero di trackers MPP
2
Tipo di inverter
Ibrido
Protezione IP
52
65
N. di registrazione RAEE DE
28316743
Descrizione
Hybrid Inverter for high voltage batteries
16A max. input current
AC/DC Over voltage protection Type II
Ripple control receiver interface
Contact for control of loads (for example SG Ready heatpumps)
WiNet S2 Dongle included
DCn Switch
Grid parallel operation
Protection class: IP65
Euro efficiency: 97,5%
H x W x D 480/620/195 mm
recommended max. PV Power: 24000W
Nominal AC Power: 12000W
max. DC Input voltage: 1000V
High voltage battery (for compatibility please refer to the manufacturer's documents)
Backup functionality (Backup, 3-phase 43000W)
Meter incl.
warranty 10 years
The country specific regulations for warranty of the manufacturer are valid
Euro efficiency: 97,5%
H x W x D 480/620/195 mm
recommended max. PV Power: 24000W
Nominal AC Power: 12000W
max. DC Input voltage: 1000V
High voltage battery (for compatibility please refer to the manufacturer's documents)
Backup functionality (Backup, 3-phase 43000W)
Meter incl.
warranty 10 years
The country specific regulations for warranty of the manufacturer are valid
