Numero di articolo: 2006300034
DMEGC DM265M10T-B32HBT
glass/glass, transparent, 1.1m
Disponibile
Merkmale
Lunghezza [mm]
1,542
Larghezza [mm]
766
Altezza [mm]
30
Peso [kg]
15,3
Tipo di connettore CC
EVO2A
Tensione massima di sistema [V]
1,500
Efficienza del modulo [%]
22
Numero di celle
32
Tecnologia delle celle
TOPCON
Lunghezza del cavo di collegamento [m]
1,1
Intensità della corrente del fusibile di stringa [A]
30
Colore - backsheet
trasparente
Colore cornice
Nero
Garanzia di prodotto (anni)
25
N. di registrazione RAEE DE
50188598
Tecnologia dei moduli
half-cut
Potenza STC (Pmpp) [Wp]
265
Massimo carico di progetto compressione [N/m²]
5,400
Massimo carico di progetto trazione [N/m²]
2,667
Potenza/Area [Wp/m²]
224
Descrizione

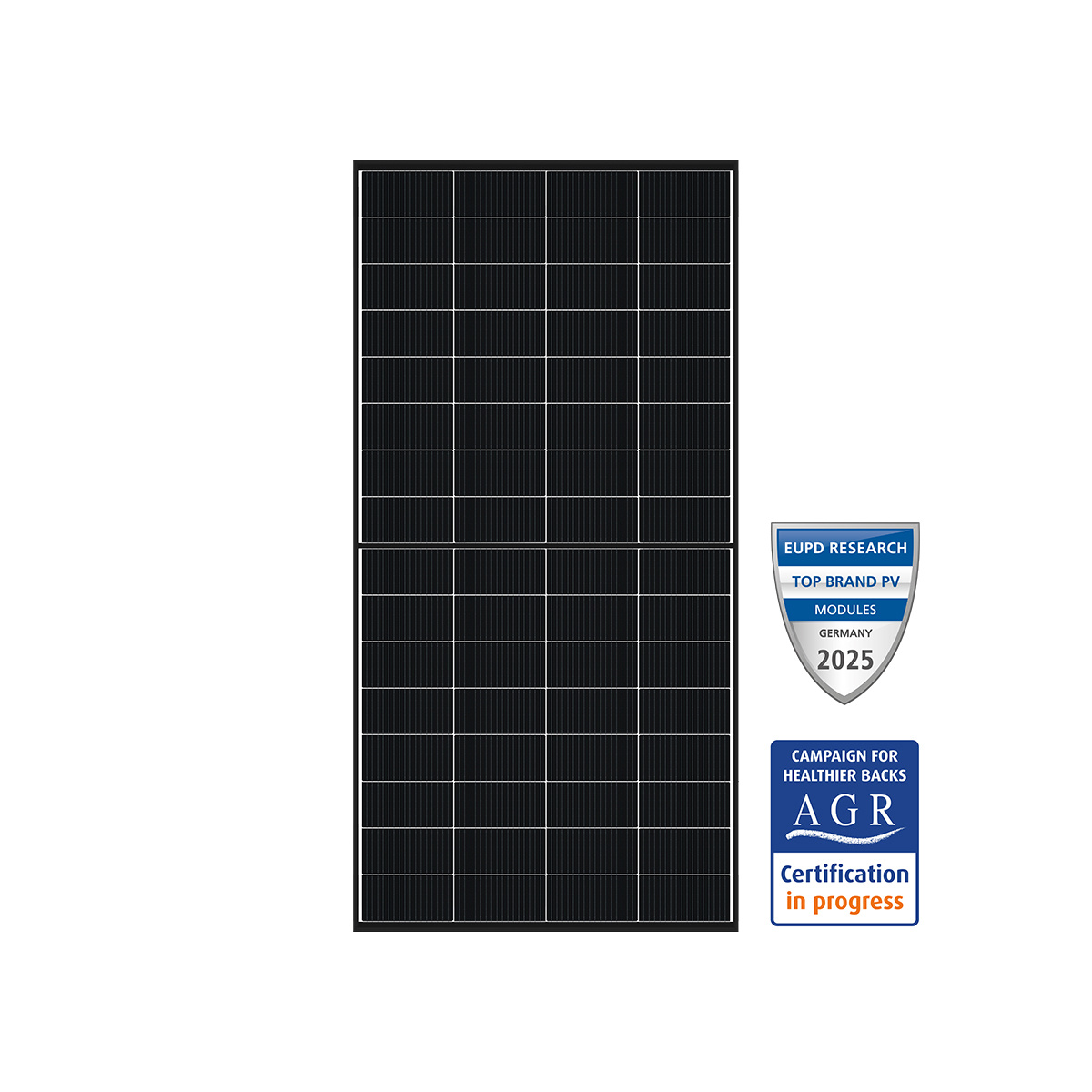

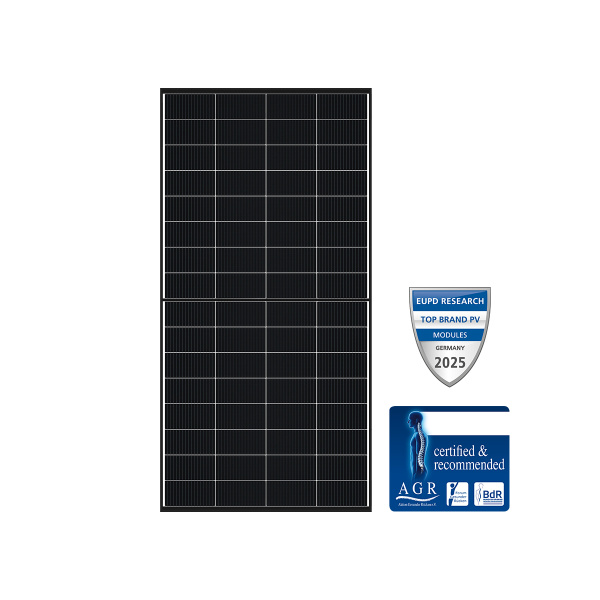

The DMEGC M10T-B32HBT is a compact, bifacial glass-glass solar module featuring N-type TOPCon technology, a nominal output of 255–270 Wp, and a module efficiency of up to 22.9 %. Weighing only about 15.3 kg and measuring 1542 × 766 × 30 mm, it is ideal for roofs with limited space or architecturally demanding applications.
Module TechnologyN-type TOPCon technology (Tunnel Oxide Passivated Contact) utilizes an ultra-thin tunnel oxide layer and passivated contacts to minimize electron recombination, thereby achieving efficiencies of over 24 % and high temperature stability. It is based on n-doped silicon, which is less susceptible to light-induced degradation, and its bifacial design enables additional energy gains, making the technology particularly efficient and durable.
QualityDMEGC modules are recognized for their high-quality workmanship, reliability, and efficiency, with efficiencies up to 21.5 % and good performance even in low light or partial shading. They are Bloomberg Tier 1 listed, have been multiple times awarded as "Top Performer" in independent tests, and received top marks for mechanical load capacity, temperature coefficient, and PID resistance, confirming their durability and quality.
SustainabilityDMEGC modules are particularly sustainable, as their production is 100 % powered by renewable energy and the plants are operated as CO₂-neutral, certified by TÜV SÜD. Furthermore, all products are PFAS-free, RoHS and REACH compliant, feature a low carbon footprint (EPD, PEP, ISO14067 certificates), and the company has been awarded the EcoVadis Silver Medal for its ESG performance.
WarrantyThe DMEGC B32HBT offers a 25-year product warranty against material and manufacturing defects, as well as a 30-year linear performance warranty, which provides for a maximum degradation of ≤1 % in the first year and ≤0.4 % per year thereafter. After 30 years, a minimum performance of approximately 87.4 % of the nominal output is guaranteed, underscoring the long-term reliability of the module.
