Numero di articolo: 2006300039

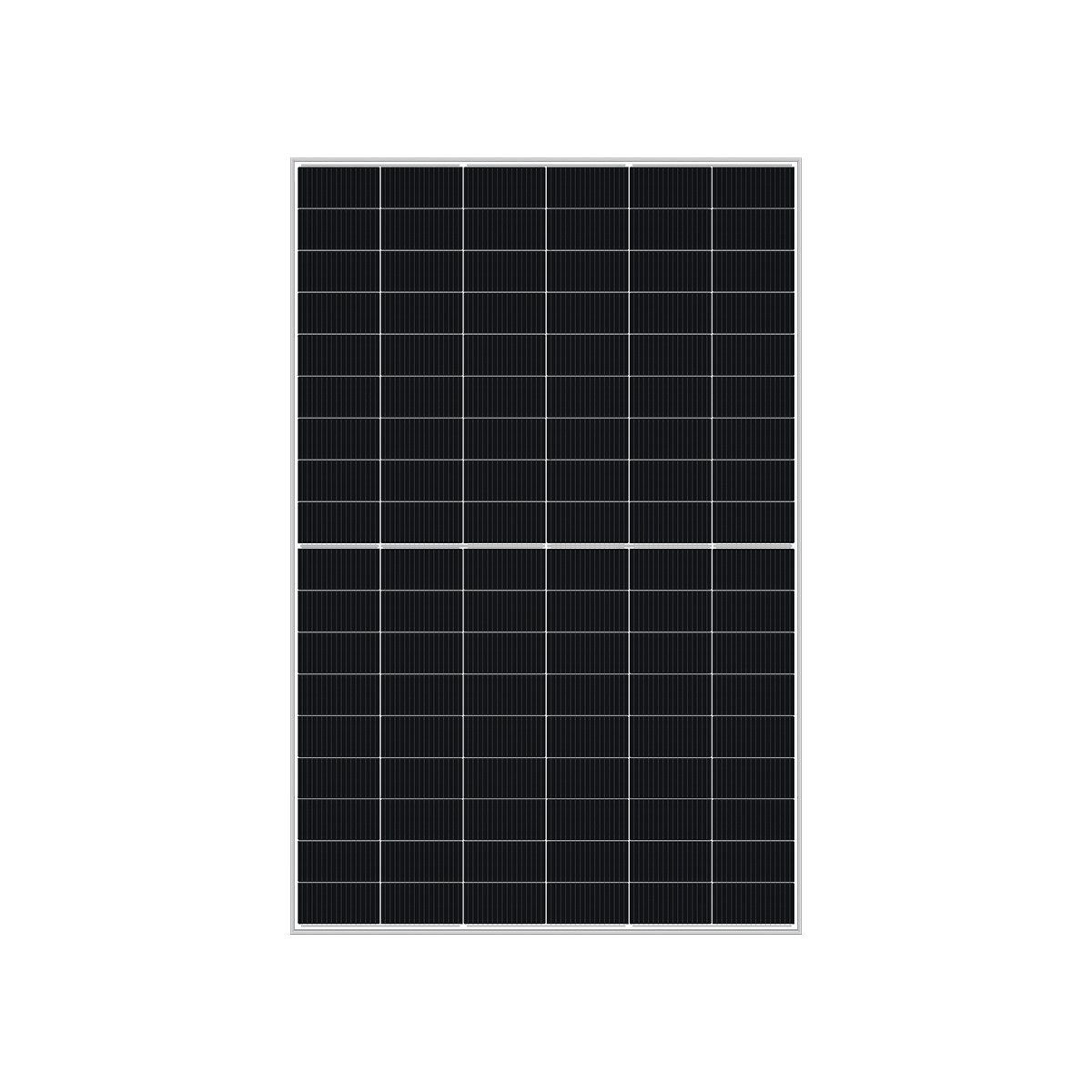

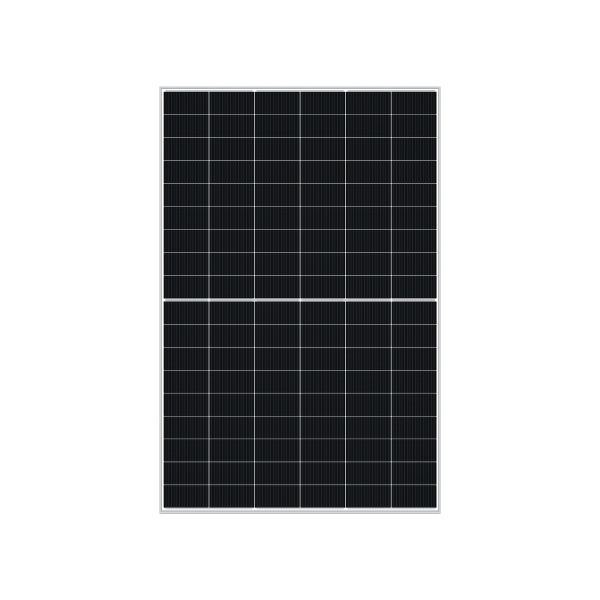

DMEGC GH435M10T-B54HST
glass/glass, transparent, abZ
disponibile per settimana: 6/2026
Merkmale
Lunghezza [mm]
1,722
Larghezza [mm]
1,134
Altezza [mm]
30
Peso [kg]
23,6
Tipo di connettore CC
EVO2A
Tensione massima di sistema [V]
1,500
Efficienza del modulo [%]
22,3
Numero di celle
108
Tecnologia delle celle
TOPCON
Lunghezza del cavo di collegamento [m]
1,1
Intensità della corrente del fusibile di stringa [A]
30
Colore - backsheet
trasparente
Colore cornice
Argento
Garanzia di prodotto (anni)
25
N. di registrazione RAEE DE
50188598
Tecnologia dei moduli
half-cut
Potenza STC (Pmpp) [Wp]
435
Massimo carico di progetto compressione [N/m²]
3,600
Massimo carico di progetto trazione [N/m²]
1,600
Potenza/Area [Wp/m²]
223
Descrizione
This is a module with abZ (General Building Authority Approval). It can be used for overhead applications, e.g., for carports.
The DMEGC GH M10T‑B54HST is a high-quality bifacial glass‑glass solar module with N-type monocrystalline cells. It was specifically developed for translucent installations such as greenhouses, possesses DIBt approval for overhead mounting, and achieves up to approx. 481 Wp output with double-sided yield.
Module TechnologyThe module utilizes N-type TOPCon technology with monocrystalline cells, offering higher efficiency, lower degradation, and better performance in low-light conditions. Due to the bifacial glass-glass construction, it can utilize light from both sides, significantly increasing energy yield compared to conventional modules.
QualityDMEGC modules are known for high-quality workmanship, reliability, and efficiency. They are Bloomberg Tier 1 listed, have been multiple-time winners of "Top Performer" in independent tests, and received top marks for mechanical load capacity, temperature coefficient, and PID resistance, confirming their durability and quality.
SustainabilityDMEGC modules are particularly sustainable, as their production is 100% powered by renewable energy and the plants are certified by TÜV SÜD as CO₂-neutral. Furthermore, all products are PFAS-free, RoHS and REACH compliant, feature a low carbon footprint (EPD, PEP, ISO14067 certificates), and the company has been awarded the EcoVadis Silver Medal for its ESG performance.
WarrantyThe durable design with a 25-year product warranty and a 30-year linear performance warranty (at least 87.4% after 30 years) makes it particularly attractive for sustainable photovoltaic projects.
