Numero di articolo: 2002800208
Jinko JKM460N-48HL4M-DV
glass/glass, white, EVO2A, Tiger Neo, PPE2
Disponibile
Merkmale
Lunghezza [mm]
1,762
Larghezza [mm]
1,134
Altezza [mm]
30
Peso [kg]
24
Tipo di connettore CC
EVO2A
Tensione massima di sistema [V]
1,500
Efficienza del modulo [%]
23,02
Numero di celle
96
Tecnologia delle celle
TOPCON
Lunghezza del cavo di collegamento [m]
1,2
Intensità della corrente del fusibile di stringa [A]
30
Colore - backsheet
bianco
Colore cornice
Nero
Garanzia di prodotto (anni)
15
N. di registrazione RAEE DE
26287070
Tecnologia dei moduli
half-cut
Potenza STC (Pmpp) [Wp]
460
Massimo carico di progetto compressione [N/m²]
4,000
Massimo carico di progetto trazione [N/m²]
2,600
Potenza/Area [Wp/m²]
230
Descrizione
This module holds a PPE2 certificate for the French market.

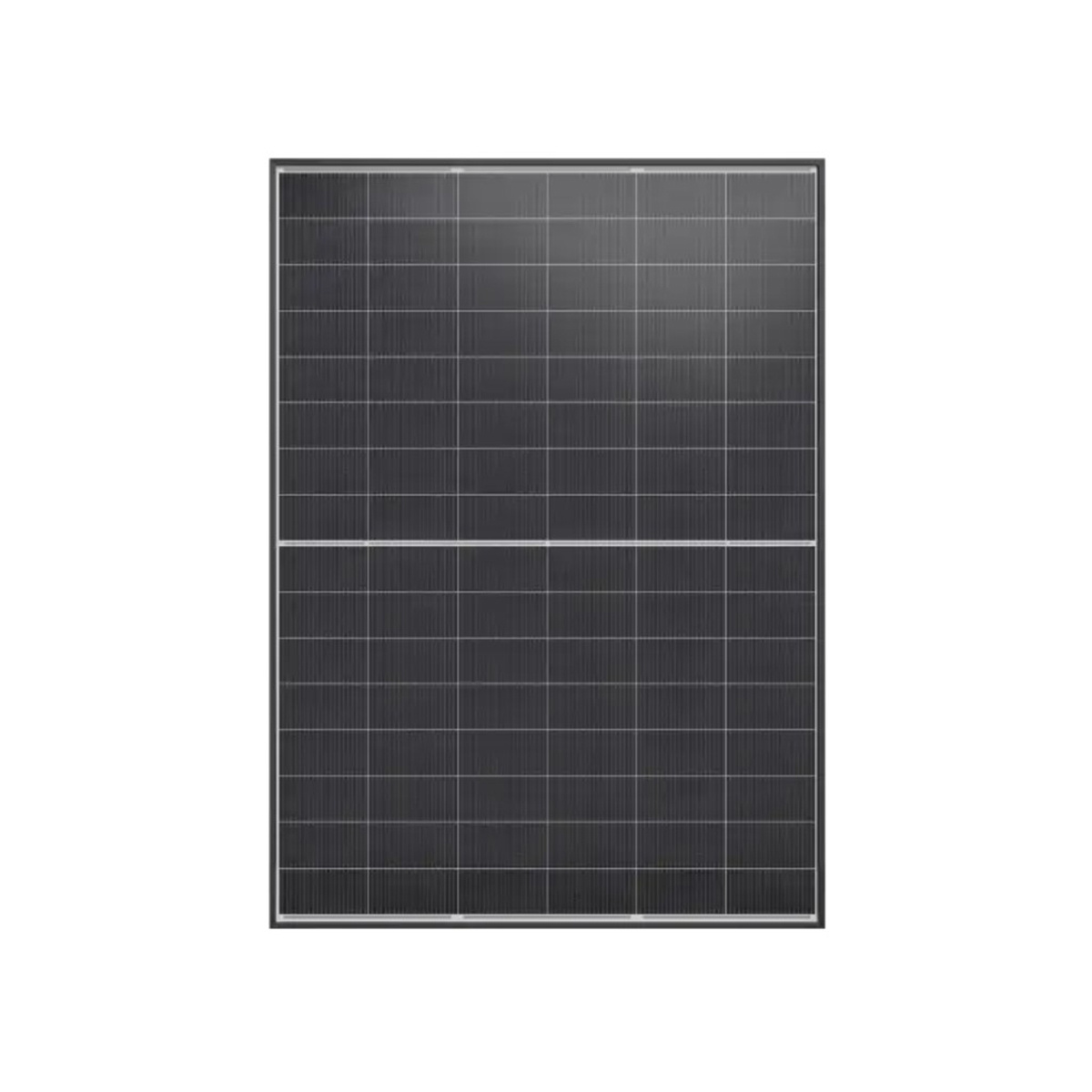

The Jinko 48HL4M-DV is a monocrystalline glass-glass solar module from the Tiger Neo series featuring N-type TOPCon technology, designed for high efficiency and low degradation. It offers an efficiency of up to 23.77% and utilizes 96 half-cells for optimized energy yields.
Module TechnologyThe Jinko 48HL4M-DV utilizes N-type TOPCon technology, which ensures high efficiency, low degradation, and better performance in low-light conditions. Additionally, it is designed as a glass-glass module with a half-cell layout, increasing mechanical stability and reducing heat generation, thereby extending the module's lifespan.
QualityJinko modules are renowned for their high efficiency, low degradation, and robust construction, ensuring stable performance even under extreme conditions. They meet international quality standards, offer up to a 30-year linear power warranty, and utilize innovative technologies like N-type TOPCon for maximum reliability.
SustainabilityJinko modules promote sustainability through their long lifespan and high efficiency, significantly reducing material consumption and CO₂ emissions per kilowatt-hour generated. Furthermore, Jinko focuses on environmentally friendly production with a high proportion of renewable energy and recycling initiatives to minimize the ecological footprint of its modules.
WarrantyThe Jinko 48HL4M-DV offers a 25-year product warranty covering material and workmanship defects. In addition, there is a 30-year linear power warranty, guaranteeing that the module's output will still be at least 87.4% of its nominal power after 30 years.
