Numero di articolo: 2005700191

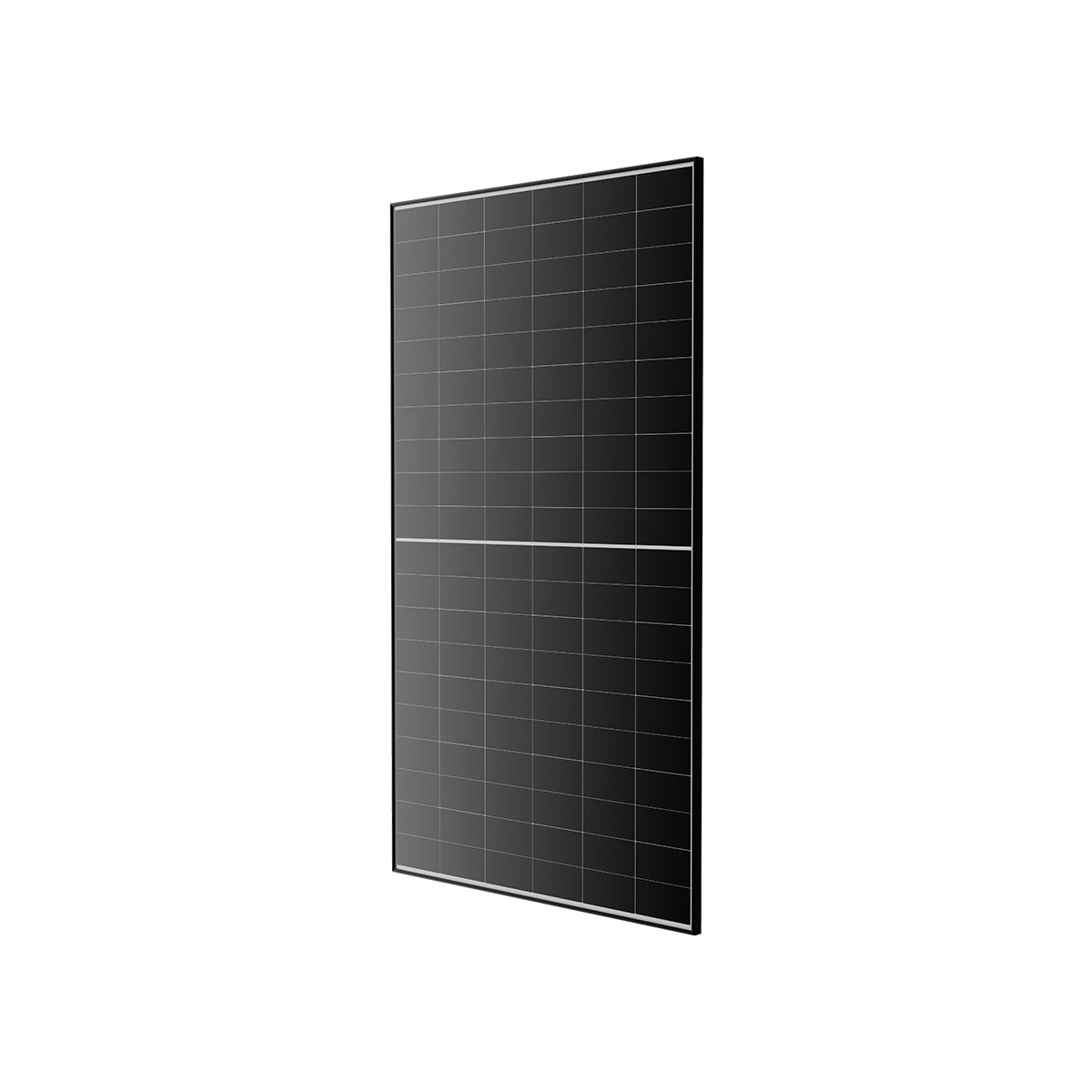

Longi LR7-60HVD-535M
doppio vetro, white, 1.4m, Hi-MO X10 Scientist
disponibile per settimana: 23/2026
Merkmale
Lunghezza [mm]
1,990
Larghezza [mm]
1,134
Altezza [mm]
30
Peso [kg]
28
Tipo di connettore CC
EVO2A
Tensione massima di sistema [V]
1,500
Efficienza del modulo [%]
23,7
Numero di celle
120
Tecnologia delle celle
HPBC 2.0
Lunghezza del cavo di collegamento [m]
1,4
Intensità della corrente del fusibile di stringa [A]
30
Colore - backsheet
bianco
Colore cornice
Nero
Garanzia di prodotto (anni)
15
N. di registrazione RAEE DE
94373386
Tecnologia dei moduli
half-cut
Potenza STC (Pmpp) [Wp]
535
Massimo carico di progetto compressione [N/m²]
3,600
Massimo carico di progetto trazione [N/m²]
1,600
Potenza/Area [Wp/m²]
237
Descrizione
The LONGi LR7‑60HVD from the Hi-MO X10 series is a bifacial dual-glass module featuring innovative HPBC 2.0 cell technology, achieving an efficiency of up to 23.7 %. The robust glass-glass construction offers a high mechanical load capacity of 5,400 Pa snow load and 2,400 Pa wind load. Thanks to an optimized temperature coefficient, the module delivers stable yields even under demanding conditions – ideal for durable and efficient PV systems.
Module TechnologyHPBC 2.0 technology (Hybrid Passivated Back Contact) utilizes a complete back-contact structure with no visible busbars on the front, maximizing light absorption and significantly increasing efficiency. Through optimized passivation and improved cell architecture, it offers higher energy yield, better temperature stability, and a longer service life compared to conventional cell technologies.
QualityAt LONGi Solar, quality is the top priority. In addition to complying with IEC 61215 and IEC 61730 standards, LONGi goes one step further: testing is conducted with triple the standard testing times. Specifically, this means that the Damp Heat Test lasts 3,000 hours instead of only 1,000 hours. This extra effort ensures that the modules reliably meet the requirements of the standards throughout their entire life cycle.
SustainabilityLONGi modules represent true sustainability: their high efficiency and long service life lower energy consumption and reduce CO₂ emissions over the entire life cycle. Manufactured from robust, recyclable materials, they support the circular economy and minimize the ecological footprint of photovoltaic production – for environmentally friendly and future-proof energy generation.
WarrantyThe LONGi LR7-60HVD offers a 15-year product warranty covering material and workmanship defects, as well as a 30-year linear performance warranty, guaranteeing at least 99 % of the nominal power in the first year and approximately 88.9 % after 30 years. These warranties apply when professionally installed and in compliance with the manufacturer's terms and conditions.
