Numero di articolo: 7400100059

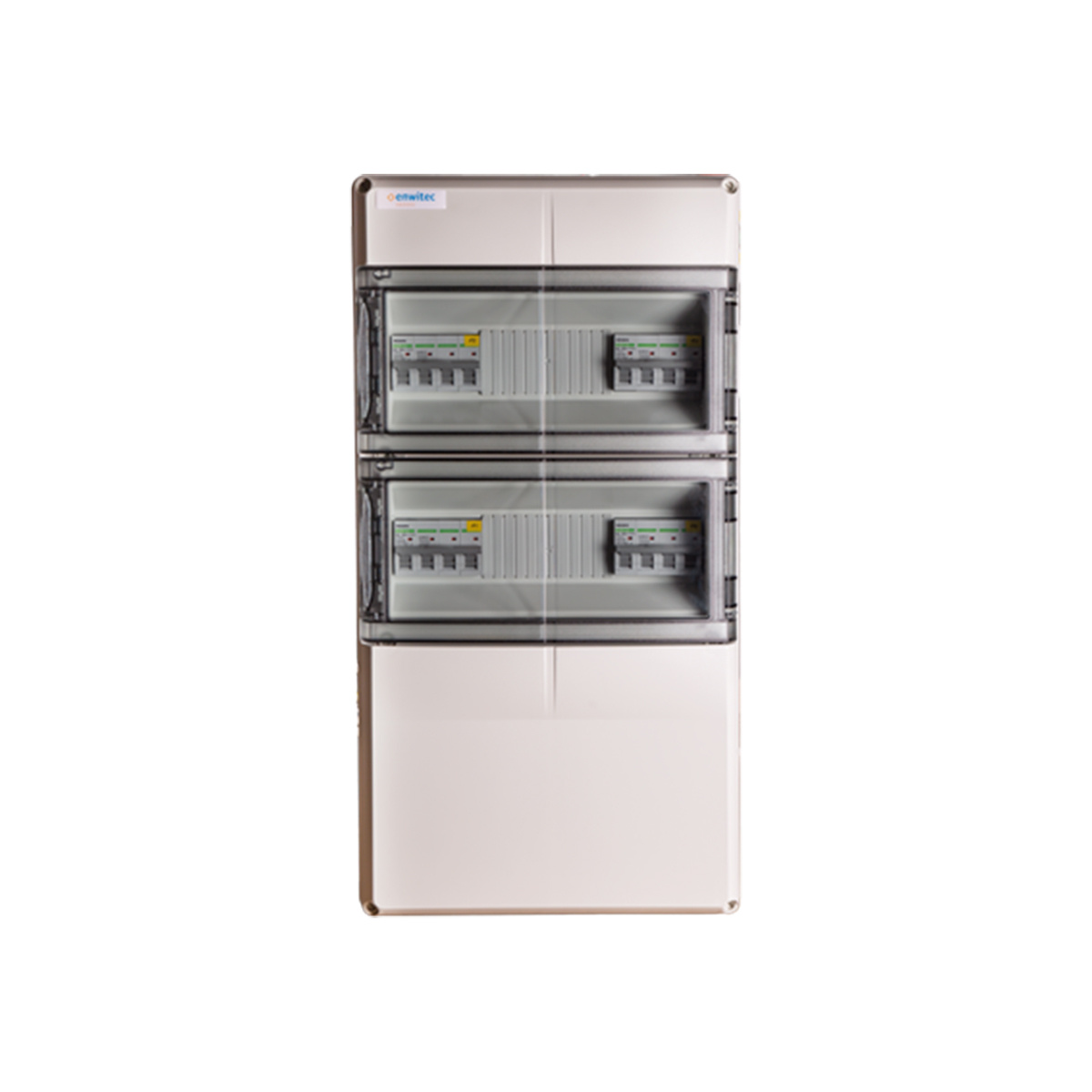

enwitec HV-BAT Breaker
1x Fronius Verto Plus; 3x BYD Premium HVM/HVB
disponibile per settimana: 49/2025
Merkmale
Profondità [mm]
155
Larghezza [mm]
315
Altezza [mm]
600
Peso [kg]
6,5
N. di registrazione RAEE DE
71566755
Descrizione
connection of up to 3 parallel battery strings/battery towers of the following types:
BYD PREMIUM HVM (nominal current 50A peak current 75A 3s)
BYD PREMIUM HVM (nominal current 50A peak current 75A 3s)
BYD PREMIUM HVM+ (nominal current 50A - peak current 80A - 15s)
BYD PREMIUM HVB (nominal current 50A peak current 98A 15s)
- Each battery string is fused on all poles
- The charger connection is fused on all poles
- Circuit breakers with a rated voltage of 1000VDC and a K tripping characteristic
with thermal tripping and magnetic quick release
- Can be operated by laypersons
- Compatible with the Fronius VERTO-PLUS inverter in all power classes!
BYD PREMIUM HVB (nominal current 50A peak current 98A 15s)
- Each battery string is fused on all poles
- The charger connection is fused on all poles
- Circuit breakers with a rated voltage of 1000VDC and a K tripping characteristic
with thermal tripping and magnetic quick release
- Can be operated by laypersons
- Compatible with the Fronius VERTO-PLUS inverter in all power classes!
