Numero di articolo: 5202000036

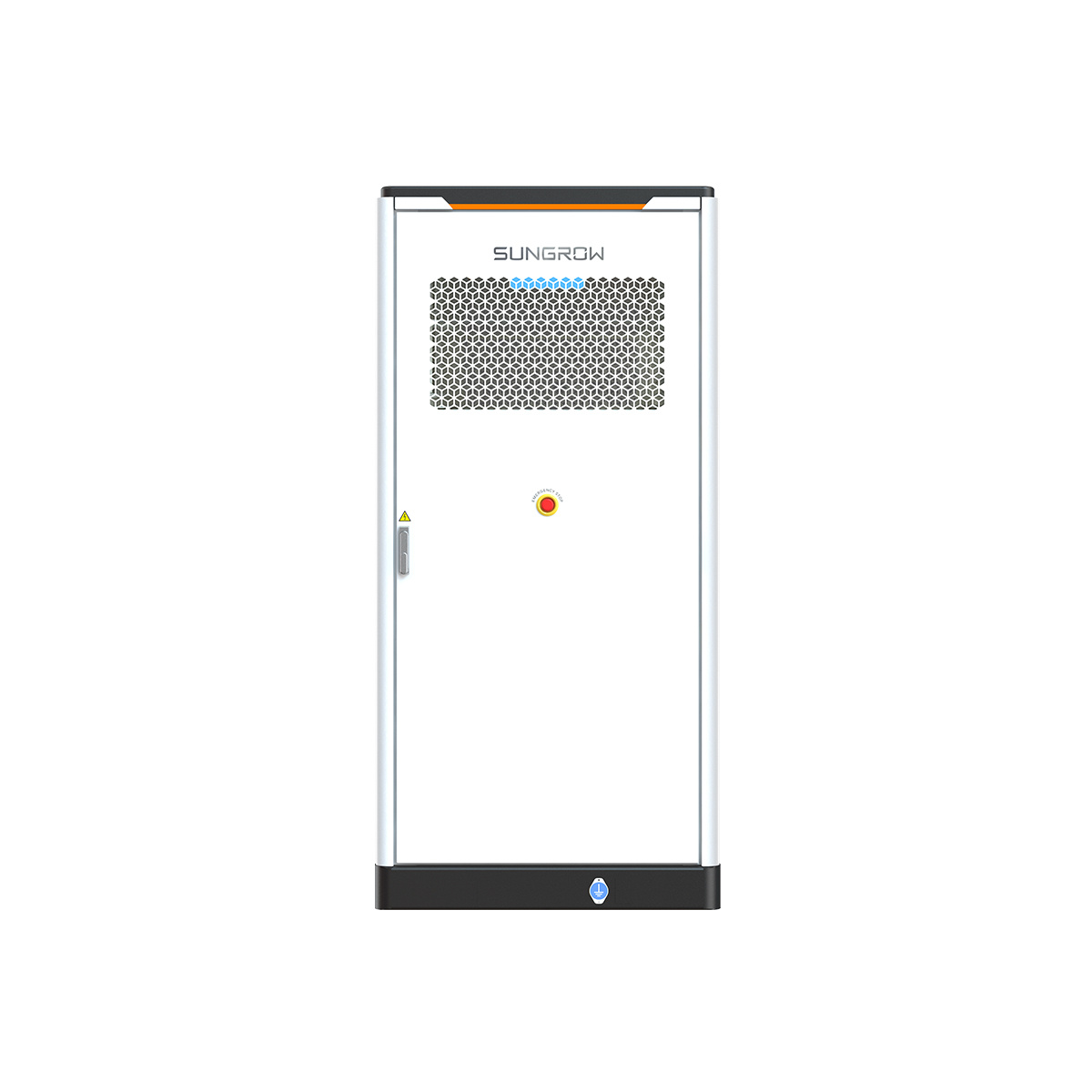

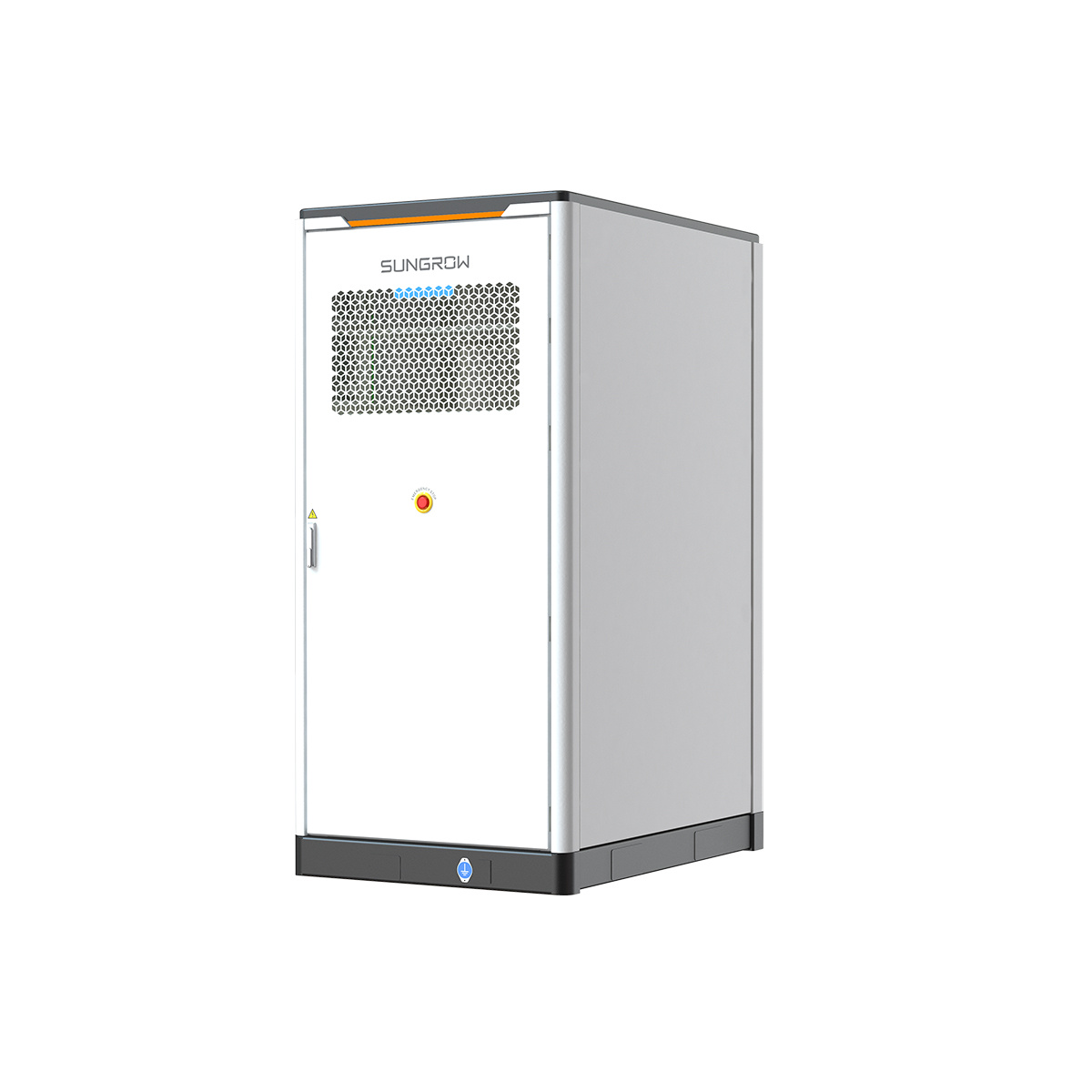

Sungrow PowerStack ST225kWh-110kW-2h EMS
Battery system 229 kWh 110 kW outdoor
disponibile per settimana: 07/2026
Merkmale
Larghezza [mm]
1,150
Altezza [mm]
2,450
Peso [kg]
3
Energia [kWh]
229
Profondità massima di scarica [%]
90
Tipo di batteria
Litio
Tensione nominale [V]
812
Batt-Reg.-Nr. DE
62,126,691
N. di registrazione RAEE DE
28316743
Descrizione
For correct processing, it is necessary to complete the checklist for commercial energy systems in the download area.
One EMS300CP controller is required per system with up to 25 Sungrow PowerStacks.
A suitable smart meter is also required. This variant does include a controller but no meter; this must be ordered separately (see accessories)!
In addition, a third-party EMS is required for grid-compliant connection.
Due to the heavy weight of the complete battery, a suitable vehicle must be provided for unloading. Please note the specifications for the foundation. Off-grid and emergency power systems cannot currently be mapped.
One EMS300CP controller is required per system with up to 25 Sungrow PowerStacks.
A suitable smart meter is also required. This variant does include a controller but no meter; this must be ordered separately (see accessories)!
In addition, a third-party EMS is required for grid-compliant connection.
Due to the heavy weight of the complete battery, a suitable vehicle must be provided for unloading. Please note the specifications for the foundation. Off-grid and emergency power systems cannot currently be mapped.
Fully integrated system design
Efficient liquid cooling: Uniform temperature distribution (ΔT ≤ 2.5 °C) protects the battery cells and increases service life. Maximum safety: AI-supported cell monitoring, multi-stage overcurrent protection, and integrated fire protection concept (including gas detector, smoke detector, aerosol system).
Powerful and robust: 110 kW rated power with a system efficiency of up to 98.5%.
Parallel connection: Supports up to 25 units in parallel operation (grid-connected) for the 2-hour system, offering a capacity of up to 5.7 MWh. Smart monitoring: Via iSolarCloud app with remote maintenance, firmware updates, and real-time error analysis.
Technical Parameters:
Capacity (usable): 225 kWh (AC): 110 kW (DC): 691,2 V – 934,4 V
Safety Class: IP55 Warranty: 5 Years (upgrade to 10 years possible)
OPeratiing temperature: -30 °C bis 50 °C
Communication: Ethernet / Modbus TCP
Dimensions (W x H x D): 1150 x 2450 x 1610 mm
Weight: 3.100 kg
