Numero di articolo: 3002000127

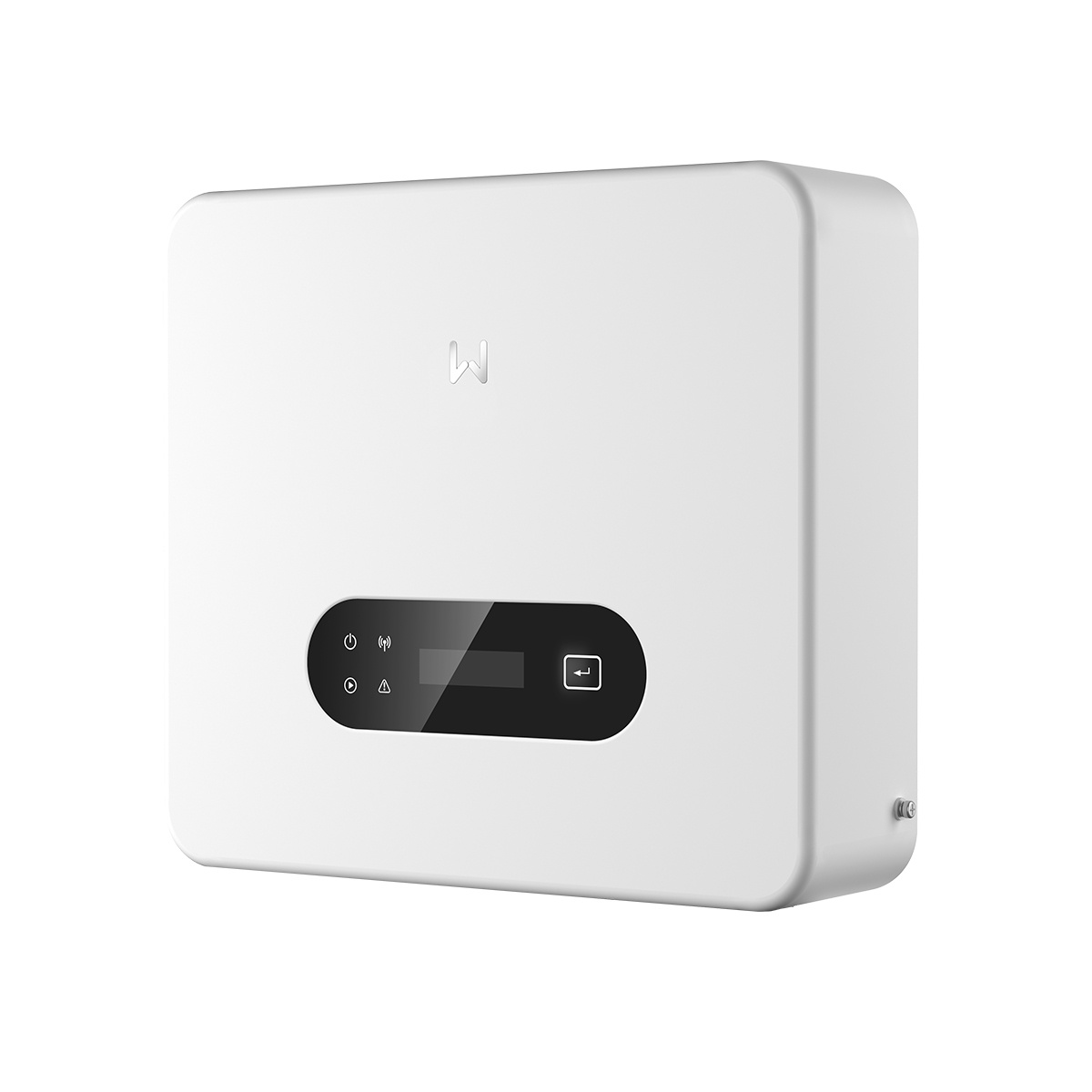

Goodwe GW5K-DNS-G40
inverter 1~, AFCI
6 Pezzo disponibile
Merkmale
Profondità [mm]
165
Larghezza [mm]
358
Altezza [mm]
323
Peso [kg]
9,2
Tipo di connettore CC
MC4
Tensione massima CC [V]
600
AC-potenza nominale [VA]
5,000
CC-potenza nominale [W]
5,000
Numero di fasi di immissione in rete
1
Numero di trackers MPP
2
Tipo di inverter
Di stringa
Protezione IP
66
N. di registrazione RAEE DE
33154372
Descrizione
The DNS G4 single-phase inverter series from GoodWe is designed for residential applications and supports modern high-performance PV modules with up to 200% PV oversizing and a maximum input current of 20A per MPPT.
Each unit features two independent MPPTs and is available in power ratings from 3kW to 6kW.
Electrical Specifications
Max. Input Voltage: 600V
MPPT Voltage Range: 40560V
Max. Output Current: up to 27.3A (depending on model)
Max. Efficiency: up to 98.1%
European Efficiency: up to 97.4%
Integrated protection functions:
PV string current monitoring
PV Insulation resistance detection
Residual current monitoring
PV-Reverse polarity protection
Anti-islanding protection
AC/DC surge protection (Type II)
AFCI
Remote shutdown
Night-time power supply
Communication & Monitoring
Interfaces: RS485, WLAN, LAN, Bluetooth, 4G
Protocols: Modbus, Sunspec
Display: LED + LCD / App connectivity

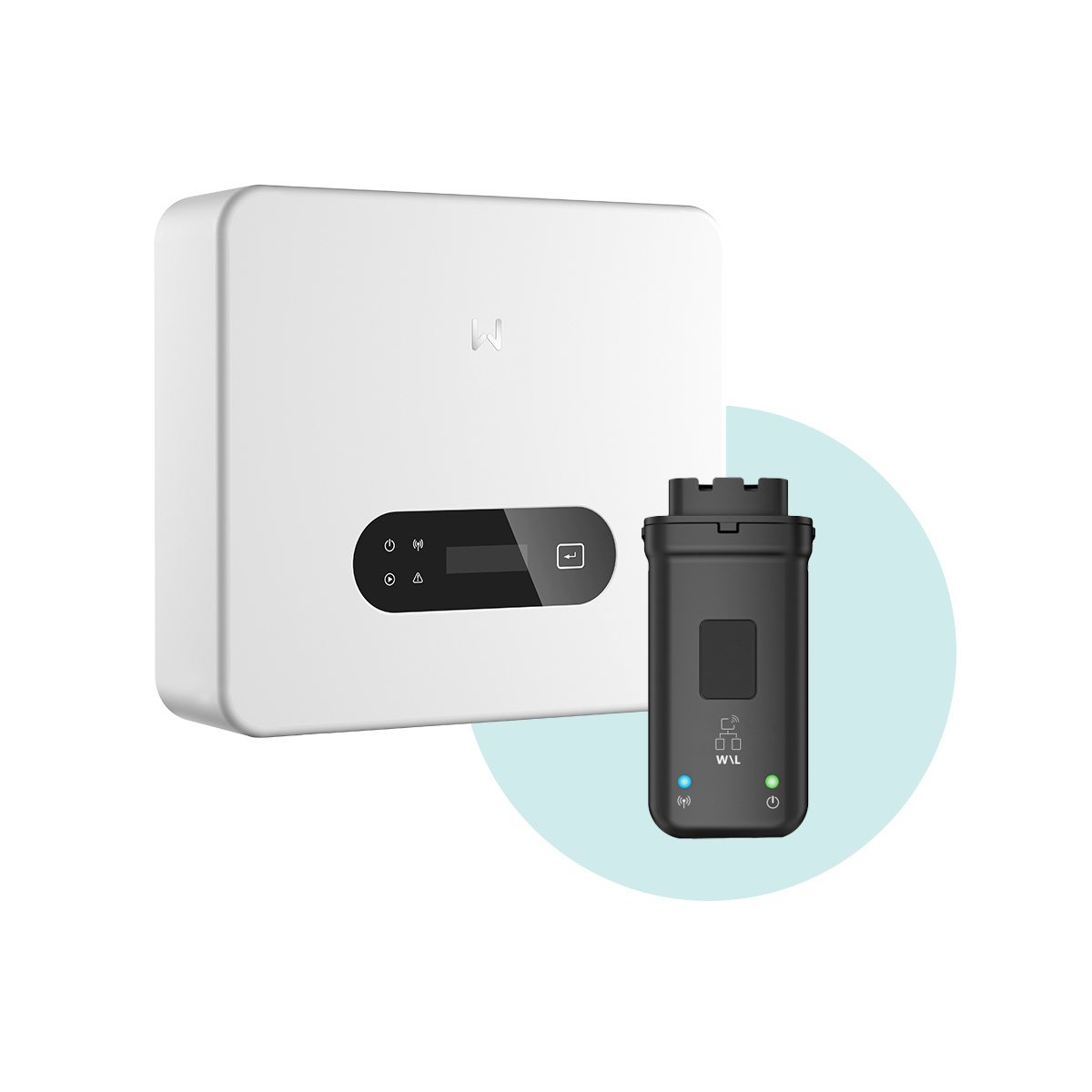

Easy system expansion via EzLink3000 Smart Dongle without data logger
Mechanical Data
Dimensions: 358 × 323 × 165mm
Weight: 9.2kg
Protection Class: IP66
Noise Emission: <25dB
Cooling Method: Natural convection
Each unit features two independent MPPTs and is available in power ratings from 3kW to 6kW.
Electrical Specifications
Max. Input Voltage: 600V
MPPT Voltage Range: 40560V
Max. Output Current: up to 27.3A (depending on model)
Max. Efficiency: up to 98.1%
European Efficiency: up to 97.4%
Integrated protection functions:
PV string current monitoring
PV Insulation resistance detection
Residual current monitoring
PV-Reverse polarity protection
Anti-islanding protection
AC/DC surge protection (Type II)
AFCI
Remote shutdown
Night-time power supply
Communication & Monitoring
Interfaces: RS485, WLAN, LAN, Bluetooth, 4G
Protocols: Modbus, Sunspec
Display: LED + LCD / App connectivity
Easy system expansion via EzLink3000 Smart Dongle without data logger
Mechanical Data
Dimensions: 358 × 323 × 165mm
Weight: 9.2kg
Protection Class: IP66
Noise Emission: <25dB
Cooling Method: Natural convection
