Numero di articolo: 3000100468

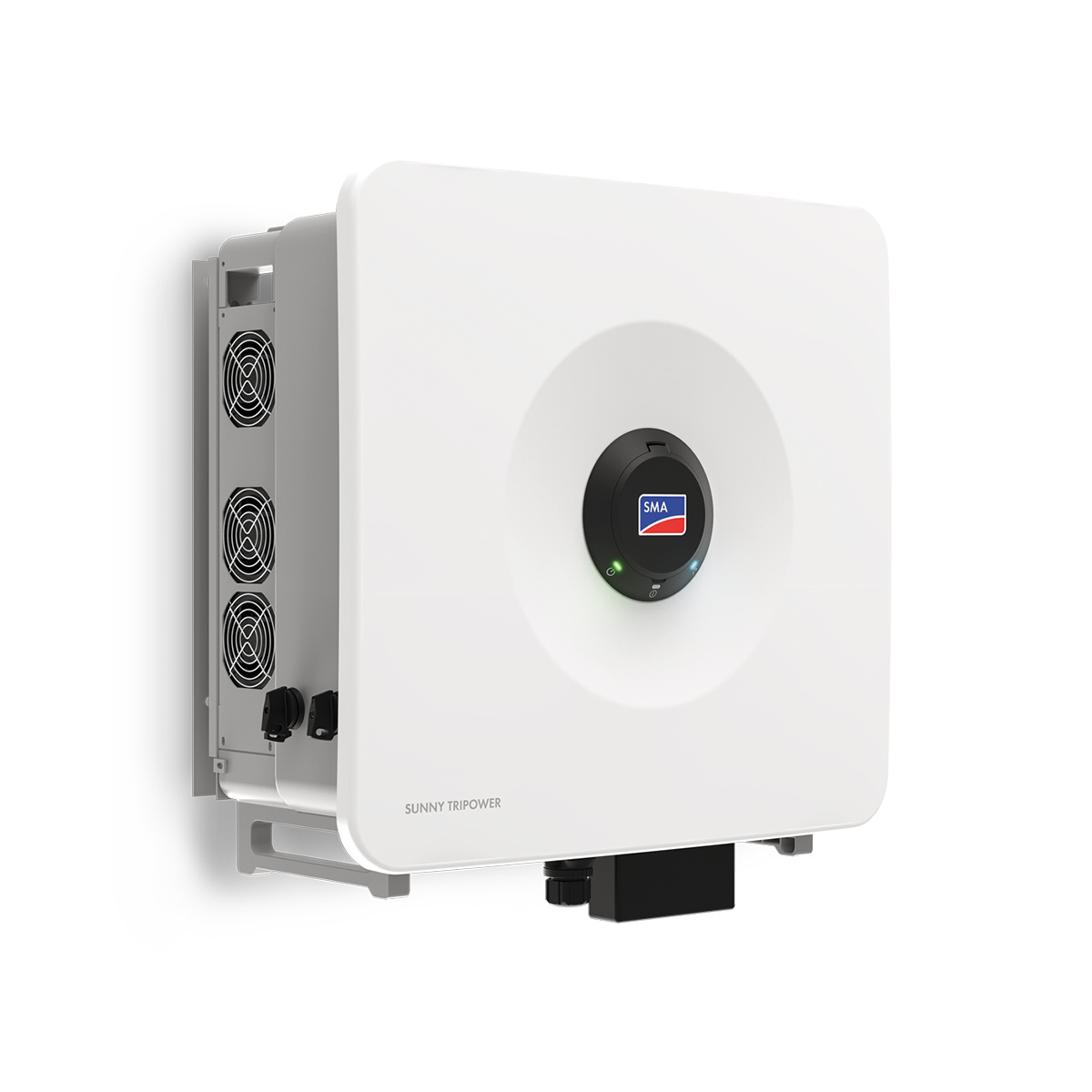

SMA Sunny Tripower X 60
Inverter trifase
disponibile per settimana: 5/2026
Merkmale
Profondità [mm]
332
Larghezza [mm]
680
Altezza [mm]
718
Peso [kg]
51
Tipo di connettore CC
SUNCLIX
Tensione massima CC [V]
1,100
AC-potenza nominale [VA]
60,000
CC-potenza nominale [W]
61,350
Lunghezza del cavo di collegamento [m]
2
Numero di fasi di immissione in rete
3
Numero di trackers MPP
5
Tipo di inverter
Di stringa
Protezione IP
65
N. di registrazione RAEE DE
95881150
Descrizione
PV inverter for grid feed-in
Pac,r/Sac,max 60000 W/60000 VA,
Pac,r/Sac,max 60000 W/60000 VA,
three-phase feed-in,
with reactive power feed-in, transformerless,
Ethernet and Wi-Fi communication interface,
with reactive power feed-in, transformerless,
Ethernet and Wi-Fi communication interface,
browserbased configuration of country settings,
5 independent MPP trackers, 10 DC inputs,
fuseless DC design, SUNCLIX terminal,
integrated DC load-break switch,
AC terminal for copper or aluminum conductors,
integrated DC surge arrester type I/II and AC surge arrester type II,
with integrated arc fault detection ArcFix.
Integrated system manager for up to 5 SMA Speedwire
devices as well as direct connection to the Sunny Portal
powered by ennexOS. Easy commissioning and
parameterization via integrated webserver or SMA 360° app.
integrated DC surge arrester type I/II and AC surge arrester type II,
with integrated arc fault detection ArcFix.
Integrated system manager for up to 5 SMA Speedwire
devices as well as direct connection to the Sunny Portal
powered by ennexOS. Easy commissioning and
parameterization via integrated webserver or SMA 360° app.
